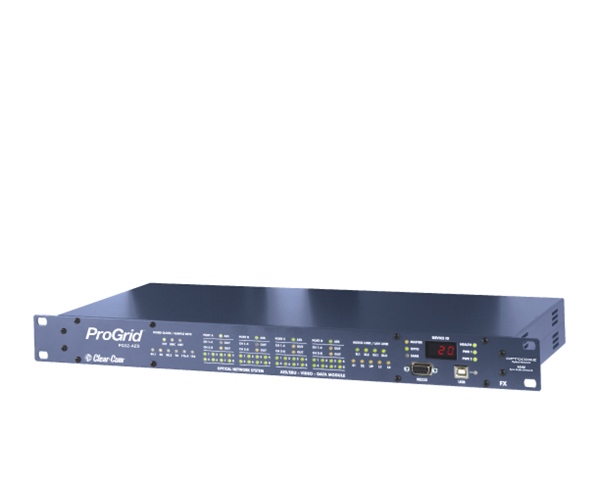

PG32-AES (DISCONTINUED)

32-Channel Digital Audio Interface with AES/EBU Ports

  • Features the Optocore™ Optical and SANE™ CAT5 Digital Network technologies
  • Can use as AES/EBU inputs or outputs
  • 4 x RS485 serial data connections
  • Word Clock input and output
  • Composite video input and output
  • 2 x optical LINK interface with duplex LC connectors
  • USB and RS232 ports for configuration and control
  • Dual power supply for redundancy
Previous Article PG2-MADI (DISCONTINUED)
Next Article PG4-INTERCOM (DISCONTINUED)
Print
2298 Rate this article:
No rating
Item Code

PG32-AES-FXS

PG32-AES-FXM

Technical Specifications Left
AES Ports

Convention: EIA / TIA-422; DSub25 Connector

Number of AES/EBU Digital Data Channels: 32

Number of AES/EBU Audio Channels: 64

Impedance: Termination; 110Ohms

I/O Configuration: Software configurable in 8 channel blocks; 64 IN/0 Out to 0 IN/64 OUT


Auxiliary Ports

Convention: EIA / TIA-485; DB9 Connector

Number of Data Channels: 4

Data Channel Type: Digital control data

Impedance: Termination; 120Ohm


Word Clock

Hardware standard: 75Ohm / BNC

Data Rate: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (Depending on used sample rate)

Impedance Input: 75Ohm

Impedance Output: 75Ohm


Video

Hardware Standard: 75Ohm / BNC

Channels: 1 x input, 1 x output

Format: Composite video


Optical Link

Input, Output, Dual: Full bandwidth

Connection: Duplex LC

Protocol: Optocore; up to 1024 audio channels

Transmission: Full-duplex

Data Rate: 2 x 2Gbps or 2 x 1 Gbps

Optical Wave Guide Cable Lengths: Multi-mode fiber 50µm; =700 m @ 1G; <350m @ 2G Single-mode fiber 9µm; up to 70 km (on request)


SANE Link

Input, Output, Dual: Full bandwidth

Connection: RJ45

Protocol: SANE; 64 audio channels and 100Mbps LAN

Transmission: Full-duplex

Data Rate: 200Mbps

Cable Lengths: CAT5, CAT5E, CAT6, CAT7; <100m for error free transmission


LAN Link

Switch function across Optocore and SANE Network

Connection: RJ45

Protocol: 10/100Mbps LAN; Ethernet, Full-Duplex, Auto-MDIX

Technical Specifications Right
Power Supply

Number of Power Supplies: 2 (with function check and automatic switch-over)

Type: Switch-mode, universal input

Mains Voltage: 100 - 240V AC

Frequency: 50 - 60Hz

Power Consumption: 12W typical


Remote Control

Convention: EIA/TIA-232

RS232: RxD, TxD / 57.600 Baud

USB Port: Interface to PC


Dimensions

19.2 x 1.73 x 7.87in (WxHxD)

(483 x 44 x 200mm)


Weight
6.0lbs (2.7kg)

Product Model Options
Models
PG32-AES

Connectivity Options
AES pairs, switchable as I/O in blocks of 4 pairs

Network Options

FXS and FXM are available with these models. FX – The Optocore Fiber Network Module allows the converter to be used as a part of a 24 device ProGrid system.

• 4 Serial ports

• 2 LAN ports

• Sync

• 2 SANE/LAN ports

  • FXS – For use with Single mode fiber optic cables
  • FXM – For use with Multi-mode fiber optic cables
Mark as DiscontinuedDiscontinued
