SFPs

Small Form-factor Pluggables (SFPs) are a generic mechanical interface found on various Clear-Com devices and are a widely adopted industry standard. SFP modules allow various types of optical fiber and copper connectivity dependent on the available infrastructure. While mechanically identical, SFPs are designed with different properties for data rates, power and fiber cable type. Clear-Com transceivers are extensively tested and fully supported. Clear-Com cannot support or guarantee trouble-free operation using third party SFP transceivers.

SFP-RJ45-1G

RJ45 LAN SFP module

Range: 100mtr/330ft
Wavelength: N/A
Speed: 1250 Mbps
Interface: Standard (1000BASE)

For: Arcadia Central Station (Ethernet), E-IPA (Ethernet), FreeSpeak Edge Base (Ethernet), FreeSpeak Edge Transceiver, FreeSpeak II IP Transceiver

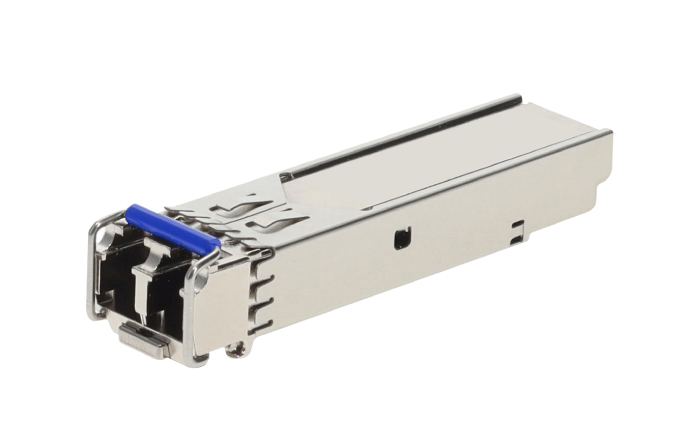

SFP-SMFO-1G-LX

Single Mode SFP transceiver module

Range: Up to 10km/33,000ft (9μm/125μm) or 500m/1,600ft (50μm/125μm)
Wavelength: 1310 nm
Speed: 1250 Mbps
Interface: Standard (1000BASE-LX)

For: Arcadia Central Station (Ethernet), E-Dante, E-IPA (Ethernet), FreeSpeak Edge Base (Ethernet), FreeSpeak Edge Transceiver, FreeSpeak II IP Transceiver

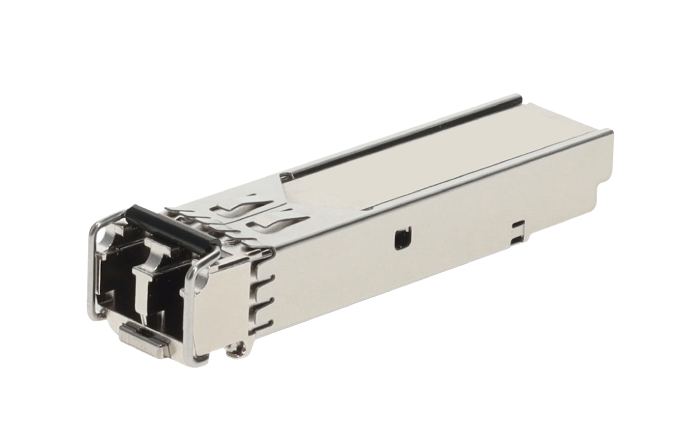

SFP-MMFO-1G-SX

Multi Mode SFP transceiver module

Range: Up to 500m/1,600ft (50μm/125μm)
Wavelength: 850 nm
Speed: 1250 Mbps
Interface: Standard (1000BASE-LX) | 1/2 GFC capable

For: Arcadia Center Station (Ethernet), E-Dante, E-IPA (Ethernet), FreeSpeak Edge Base (Ethernet), FreeSpeak Edge Transceiver, FreeSpeak II IP Transceiver, ProGrid

SFP-SMFO-100M-LX

Single-mode E1 SFP

Range: Up to 15km/40,000ft
Wavelength: 1310 nm
Speed: 155 Mbps
Interface: Proprietary, based on E1 | Standard (1000BASE-LX) | Standard (MADI)

Previous Part Number: HLI-SMFO (Single Mode SFP transceiver module)

For: Arcadia Central Station/FSII-SPL/TCVR (E1), E-IPA/FSII-SPL/TCVR (E1), E-MADI, FreeSpeak Edge Base/FSII-SPL/TCVR (E1), FreeSpeak II Base, FreeSpeak II Splitter, HelixNet

SFP-MMFO-100M-FX

Multi-mode E1 SFP

Range: Up to 3km/10,000ft
Wavelength: 1310 nm
Speed: 155 Mbps
Interface: Proprietary, based on E1 | Standard (1000BASE-LX) | Standard (MADI)

Previous Part Number: HLI-MMFO (Multi Mode SFP transceiver module)

For: Arcadia Central Station/FSII-SPL/TCVR (E1), E-IPA/FSII-SPL/TCVR (E1), E-MADI, FreeSpeak Edge Base/FSII-SPL/TCVR (E1), FreeSpeak II Base, FreeSpeak II Splitter, HelixNet

PG-SMFO-2G

Single-Mode SFP transceiver module

Range: Up to 10km/33,000ft
Wavelength: 1310 nm
Speed: 2125 Mbps
Interface: Proprietary (1/2 GFC), 1000BASE-LX capable

For: ProGrid

PG-MMFO-2G

Multi-Mode SFP transceiver module

Range: Up to 500m/1,600ft (50μm/125μm)
Wavelength: 850 nm
Speed: 2125 Mbps
Interface: Proprietary (1/2 GFC), 1000BASE-SX capable

For: ProGrid
