IP Connectivity for V-Series Panels

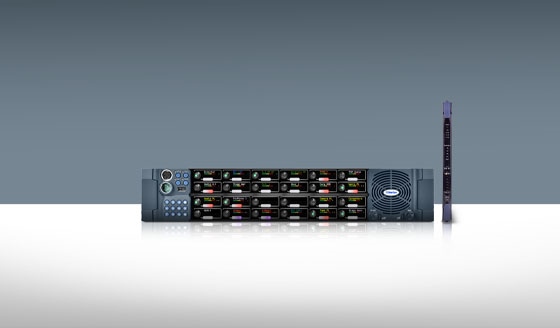

The IrisX panel’s IP capability allows users to connect via AES67 or with Clear-Com’s AoIP I.V. Core™ protocol. Using an E-IPA-HX card, users can deploy up to 64 panels in an AES67-based network. IrisX panels also have a dual NIC connection which allows for seamless communication, even if the primary IP network fails.

Why Choose IP Connectivity for V-Series Panels?

Remote Intercom Access

Allow contributing team members to connect remotely and effortlessly to core intercom users.

Fast and Easy Deployment

Download app from the Apple iTune Store (for iOS devices) or Google Playstore (for Android devices) and be connected to the host Eclipse HX system or LQ Core Configuration Manager. Access is granted by the System Administrator.

Secure and Seamless Connections

Connect securely and confidently to multiple IP networks over 3G, 4G and WiFi with NSA (National Security Administration) approval.

Single Matrix System

In a small-scale matrix system, the Eclipse HX-Delta system is ideal for a single facility that requires a maximum of 256 ports. This capacity allows many users to communicate on different types of V-Series Iris keypanels connected over 4-wire, trunked IP (Dante, AES67 and Native), E1/T1, Fiber, CAT5, and/or MADI. Additional contributors to the conversation that need to remain untethered to the desk or a specific position, and do not frequently require access to the intercom, could be on the complementary Agent-IC mobile app that depends on WiFi, 3G, 4G or Internet signal connections.

View Diagram

Multi-Matrix System Network

For large-scale system deployments, any combination of Eclipse HX systems can be networked into a single, redundant system, providing communications to thousands of user positions. With this setup, Eclipse HX users have many user device options. There are different types of V-Series Iris keypanels connected over 4-wire, trunked IP (Dante, AES67 and Native), E1/T1, Fiber, CAT5, and/or MADI. Contributing users that need to remain untethered to the desk or a specific position, and do not frequently require access to the intercom, could be on the complementary Agent-IC mobile app that depends on WiFi, 3G, 4G or Internet signal connections.

View Diagram
