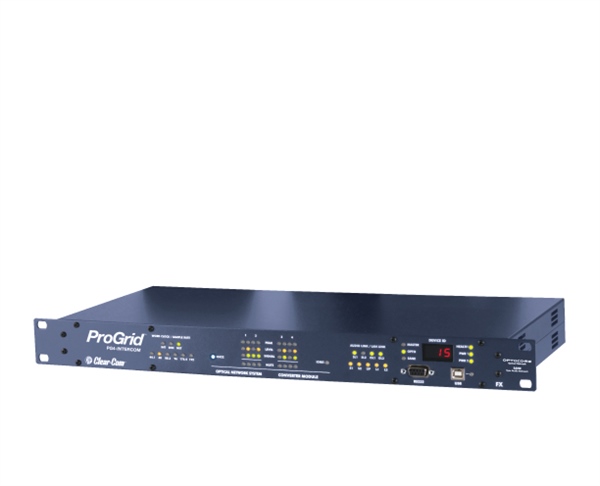

PG4-INTERCOM (DISCONTINUED)

4-Port Digital Intercom Audio and Data Control I/O Interface Device

  • Interfaces with Clear-Com and RTS/Telex intercom panels, interfaces and matrices
  • Available in two hardware configurations: RS422 for Clear-Com and RS485 for RTS/Telex
  • Offers four RJ45 4-wire intercom ports
  • Dual power supplies with automatic switchover included
  • Features the Optocore™ Optical and SANE™ CAT5 Digital Network technologies
  • Duplicated 4-wire Intercom Port wiring with reversed I/O and Rx/Tx
  • 2 x 100 Mbit Ethernet ports
  • 4 x RS485 serial data connections
  • Word Clock input and output
  • 2 x optical LINK interface with duplex LC connectors
  • USB and RS232 ports for configuration and control
Previous Article PG32-AES (DISCONTINUED)
Next Article FSII-Base-II
Print
2267 Rate this article:
No rating
Item Code

PG4-INTERCOM-CC-FX

PG4-INTERCOM-485-FX

PG4-INTERCOM-444-FX

Technical Specifications Left
Intercom Ports

Convention: EIA / TIA – 422 or EIA / TIA – 485

Hardware Standard: IC422/IC485; FCC-RJ45


Analog Line Input

Impedance: 10KOhms

Maximum Input Level: +18dBu

SNR: 115dB (A-weighted)

THD+N a -1dBFS: >100dB


Analog Line Output

Impedance: 45Ohms

Maximum Output Level: +18dBu

SNR: 115dB (A-weighted)

THD+N @ -1dBFS: >98dB


SANE, LAN ports

Audio: TIA - 568A/B; Optocore 200 Mbit/s

LAN: TIA - 568A/B; IEEE - 802.3; 10/100 Mbit/s


Auxiliary Ports

Convention: EIA / TIA-485

Number of Data Channels: 4

Data Channel Type: Digital control data

Data Rate: Up to 10 Mbps


Impedance

Termination: 330Ohm

Source: = 10Ohm


Word Clock

Hardware standard: 75Ohm / BNC

Data Rate: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (Depending on used sample rate)

Impedance Input: 1k / 75Ohm software switch

Impedance Output: 75Ohm


Optical Link

Input, Output, Dual: Full bandwidth

Connection: Duplex LC

Protocol: Optocore

Transmission: Full-duplex

Data Rate: 2 x 2Gbps

Optical Wave Guide Cable Lengths: Multi-mode fiber 50µm; = 700m Single-mode fiber 9µm; 10km (70 km on request)

Technical Specifications Right
Power Supply

Number of Power Supplies: 2 (with function check and automatic switch-over)

Type: Switch-mode, universal input

Mains Voltage: 100 - 240V AC; 50 - 60Hz; 25VA-typ; 32VA-peak


Remote Control

RS232/Ethernet/USB Port: Interface to PC


Dimensions

19.2 x 1.73 x 7.87in (WxHxD)

(483 x 44 x 200mm)


Weight
6.0lbs (2.7kg)

Product Model Options
Models

PG4-INTERCOM-CC-FX

PG4-INTERCOM-485-FX

PG4-INTERCOM-444-FX


Connectivity Options
CC – Clear-Com four wire matrix ports with serial control 4 four wire Clear-Com matrix ports with line level and RS422 serial inputs and outputs for Clear-Com key panels, matrices and interfaces. 485 – RTS four wire intercom ports with serial control 4 four wire RTS matrix ports with line level and RS485 serial inputs and outputs for RTS key panels, matrices and interfaces. 444 – Line level inputs and outputs, GPIO and DC output 4 line level inputs and outputs with optically isolated general purpose inputs and relay switched general purpose outputs. Auxiliary DC outputs to power external circuits.

Network Options

FXS and FXM are available with these models.

FX – The Optocore Fiber Network Module allows the converter to be used as a part of a 24 device ProGrid system.

• 4 Serial ports

• 2 LAN ports

• Sync

• 2 SANE/LAN ports

  • FXS – For use with Single mode fiber optic cables
  • FXM – For use with Multi-mode fiber optic cables
Mark as DiscontinuedDiscontinued
