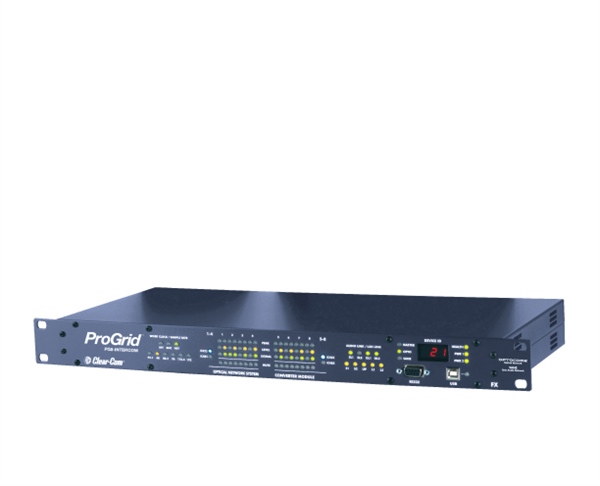

PG8-AUDIO (DISCONTINUED)

8-channel Digital Audio I/O Interface Device

  • Features the Optocore™ Optical and SANE™ CAT5 Digital Network technologies
  • 3 Card Types: 8 microphone inputs, 8 line inputs or 8 line outputs
  • 4 x RS485 serial data connections
  • Word Clock input and output
  • 2 x optical LINK interface with duplex LC connectors (FX version only)
  • 2 x AES/EBU ports, 16 channels each (TP version only)
  • USB, RS232 and LAN ports for configuration and control
  • Dual power supplies with automatic switchover included
Previous Article LQ-R4WG8
Next Article Optocore Control Software
Print
2465 Rate this article:
No rating
Item Code

PG8-8MI-FX

PG8-8MI-TP

PG8-8LI-FX

PG8-8LI-TP

PG8-8LO-FX

PG8-8LO-TP

Technical Specifications Left
Analog Audio Mic Inputs

ADC

Gain/Steps: 0dB to +70dB; 1dB steps

Maximum Input Level: @ 0dB gain: +22dBu; @+70 dB gain: -48dBu

SNR: @ 0dB gain: 118.5dB(A); @ +30dB gain: 116.5dB(A)

Dynamic Range: @ 0dB gain: > 118.5dB(A); gain +ADC: > 154dB


Analog Audio Line Inputs

ADC

Gain/Steps: -5, 0 +4, +14dB; 4dB steps

Maximum Input Level: @ -5dB gain: +27dBu; @+14dB gain: +8dBu

SNR: @ 0dB gain: 118dB(A); @ +14dB gain: 118dB(A)

Dynamic Range: @ 0dB gain: > 118.5dB(A); gain +ADC: > 137dB


Analog Audio Line Outputs

ADC

Gain/Steps: 0 , -4, -10, -14dB; 4dB steps

Maximum Output Level: @ 0dB gain: +22dBu; @-14dB gain: +8dBu

SNR: @ 0dB gain: 119dB(A); @ -14dB gain: 118dB(A)

Dynamic Range: @ 0dB gain: > 119dB(A); gain +ADC: > 134dB


Word Clock

Hardware standard: 75Ohm / BNC

Data Rate: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (Depending on used sample rate)


Optical Link (PG16-AUDIO-FX and PG8-AUDIO-FX devices only)

Input, Output, Dual: Full bandwidth

Connection: Duplex LC

Protocol: Optocore

Transmission: Full-duplex

Data Rate: 2 x 2Gbps

Optical Wave Guide Cable Lengths: Multi-mode fiber 50µm; = 700 m Single-mode fiber 9µm; <10km (70 km on request)


Power Supply

Number of Power Supplies: 2 (with function check and automatic switch-over)

Type: Switch-mode, universal input

Mains Voltage: 100 - 240V AC; 50 - 60Hz; 10VA-typ

Frequency: 50 - 60Hz

Technical Specifications Right
Remote Control

RS232/USB/Ethernet Port: Interface to PC


Dimensions

19.2 x 1.73 x 7.87in (WxHxD)

(483 x 44 x 200mm)


Weight

6.0lbs (2.7kg)


Product Model Options
Models

PG8-8MI-FX

PG8-8MI-TP

PG8-8LI-FX

PG8-8LI-TP

PG8-8LO-FX

PG8-8LO-TP


Connectivity Options

MI-Microphone Inputs

DMPRE-Dual Microphone Inputs

LI-Line Level Inputs

LO-Line Level Outputs

AE-AES3 I/O


Network Options

FXS, FXM, and TP connectivity modules are available with all PG8-Audio models. FX – The Optocore Fiber Network Module allows the converter to be used as a part of a 24 device ProGrid system.

  • 4 Serial ports
  • 2 LAN ports
  • Sync
  • 2 SANE/LAN ports

FXS – For use with Single mode fiber optic cables FXM – For use with Multi-mode fiber optic cables
