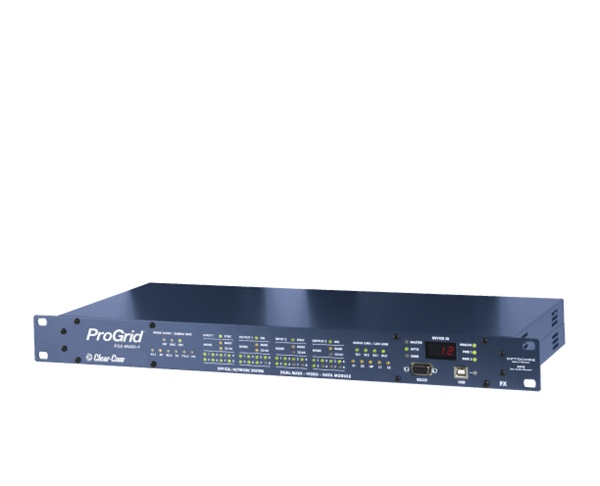

PG2-MADI (DISCONTINUED)

Digital Audio I/O Interfaces with MADI Ports

  • Up to 128 input and output MADI channels
  • Up to 56/64 input and output SANE channels
  • 2 x 100 Mbit Ethernet ports
  • 4 x RS485 serial data connections
  • Word Clock input and output
  • Composite video input and output
  • 2 x optical LINK interface with duplex LC connectors
  • USB and RS232 ports for configuration and control
  • Dual power supply for redundancy
Previous Article Optocore Control Software
Next Article PG32-AES (DISCONTINUED)
Print
2250 Rate this article:
No rating
Item Code

PG2-MADI-F-FXS

PG2-MADI-F-FXM

PG2-MADI-C-FXS

PG2-MADI-C-FXM

Technical Specifications Left
Specifications

MADI Ports (PG2-MADI-F)

Convention: AES10-1991 / AES10-2003

Input: Number of Connectors: 2

Connector Type: Optical Duplex SC

Number of MADI Channels: 56 or 64 per Input

Output: Number of Connectors: 2

Connector Type: Optical Duplex SC

Number of MADI Channels: 56 or 64 per Output

Data Rate: 125 Mbps

Wave Length Output: 1310 nm (typical)

Max. Cable Length: 50/125 µm; 1500m/5000ft (multi-mode)


MADI Ports (PG2-MADI-C)

Convention: AES10-1991 / AES10-2003

Input: Number of Connectors: 2

Connector Type: Coaxial BNC

Number of MADI Channels: 56 or 64 per Input

Output: Number of Connectors: 2

Connector Type: Coaxial BNC

Number of MADI Channels: 56 or 64 per Output

Data Rate: 125 Mbps

Impedance: Termination; 75Ohms


SANE, LAN ports

Audio: TIA - 568A/B; Optocore 200 Mbit/s

LAN: TIA - 568A/B; IEEE - 802.3; 10/100 Mbit/s


Auxiliary Ports

Convention: EIA / TIA-485

Number of Data Channels: 4

Data Channel Type: Digital control data

Data Rate: Up to 10 Mbps


Impedance

Termination: 330Ohm

Source: = 10Ohm


Word Clock

Hardware standard: 75Ohm / BNC Data Rate: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (Depending on used sample rate)

Impedance Input: 1k / 75Ohm software switch

Impedance Output: 75Ohm


Video

Hardware Standard: 75Ohm / BNC

Channels: 1 x input, 1 x output

Format: Composite video

Technical Specifications Right
Optical Link

Input, Output, Dual: Full bandwidth

Connection: Duplex LC

Protocol: Optocore

Transmission: Full-duplex

Data Rate: 2 x 2Gbps

Optical Wave Guide Cable Lengths: Multi-mode fiber 50µm; = 700 m Single-mode fiber 9µm; 10km (70 km on request)


Power Supply

Number of Power Supplies: 2 (with function check and automatic switch-over)

Type: Switch-mode, universal input

Mains Voltage: 100 - 240V AC; 50 - 60Hz; 10VA-typ

Frequency: 50 - 60Hz


Remote Control

Convention: EIA/TIA-232

RS232: RxD, TxD / 57.600 Baud

USB Port: Interface to PC


Dimensions

19.2 x 1.73 x 7.87in (WxHxD)

(483 x 44 x 200mm)


Weight
6.0lbs (2.7kg)

Product Model Options
Models

PG2-MADI-F

PG2-MADI-C


Connectivity Options

MADI-F – 2 Optical 64 Channel

MADI Ports MADI-C – 2 Coaxial 64 Channel

MADI Ports


Network Options

FXS and FXM are available with these models. FX – The Optocore Fiber Network Module allows the converter to be used as a part of a 24 device ProGrid system.

• 4 Serial ports

• 2 LAN ports

• Sync

• 2 SANE/LAN ports

  • FXS – For use with Single mode fiber optic cables
  • FXM – For use with Multi-mode fiber optic cables
Mark as DiscontinuedDiscontinued
