Repeat8 Series (DISCONTINUED)
Clear-Com Marketing
/ Categories: Products

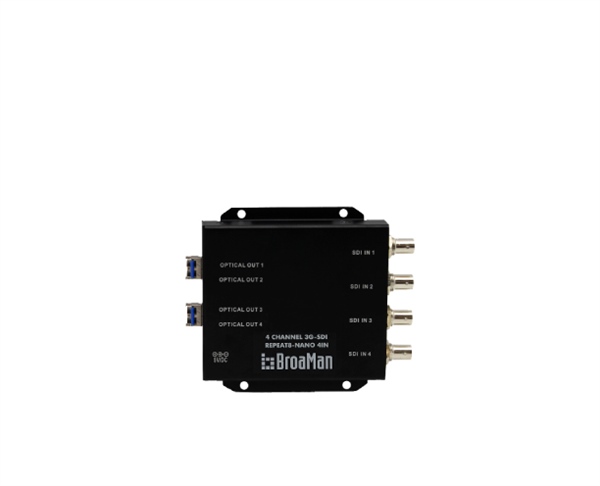

Repeat8 Series (DISCONTINUED)

Compact 4-Channel Repeater Devices

  • Low-latency fiber repeaters that transport and distribute video and control data
  • 3G/SDI video input to fiber transmitter with input reclockers (NANO-IN)
  • Fiber input to 3G/SDI BNC output with output reclockers (NANO-OUT)
  • Plug-and-Play - no configuration required
  • Lowest power consumption (<20W)
  • Compatible with 3rd party products
  • Mounting plate included and PSU added
Previous Article PG-Y3R-TP (DISCONTINUED)
Next Article Clear-Com Showcases Cross-Domain Solutions at AFA Air, Space and Cyber Conference 2018
Print
963 Rate this article:
No rating
Item Code

Repeat8-NANO-4IN-3G, Repeat8-NANO-4OUT-3G, Repeat8-NANO-2IN-2OUT-12G, SM320S31TTCD: transceiver module for Repeat8-NANO-4IN-3G, SM340SWRRCD: transceiver module for Repeat8-NANO-4OUT-3G, SM1220S31TRCD: transceiver module for Repeat8-NANO-2IN-2OUT-12G

Technical Specifications Left
Video

Standards: SD, ED, HD, Dual Link, 3G

Complies with SMPTE: 292M, 295M, 297M, 305M, 310M, 424M

Compliant to: DVBASI, MADI

Interface: SDI – Serial Digital Interface


Optical Connection

Complies with 21 CFR 1040.10 and 1040.11

Connection: LC

Data Rate: Dependent on the Video data rate

Fiber cable lengths: Standard singlemode transceivers: = 10 km

Special singlemode transceivers: = 80 km (on request)

Technical Specifications Right
Power Supply
Type: External PSU
Main Voltage: 100-240V
Frequency: 50-600Hz
Output Voltage: 5V
Output current: 1A

Dimensions
With Mounting Plate:
0.80 x 4.4 x 4.5in (HxWxD)
(20 x 112 x 113mm)

Without Mounting Plate:
0.80 x 4.5 x 3.8in (HxWxD)
(20 x 113 x 97mm)

Weight
10oz (0.28kg)
