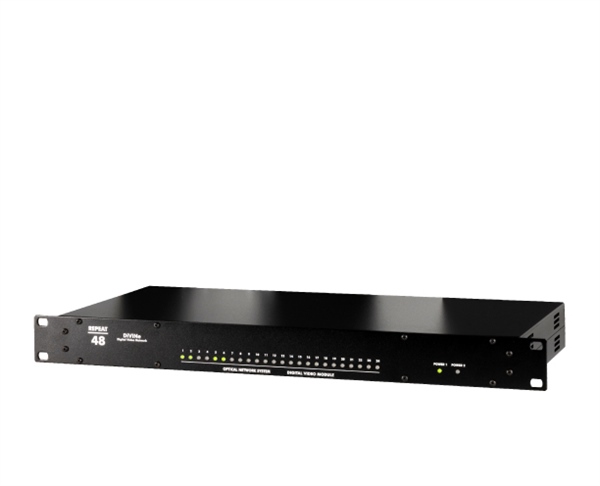

Repeat48 Series (DISCONTINUED)
Clear-Com Marketing

Repeat48 Series (DISCONTINUED)

12 Dual-channel 1RU Repeater Devices

  • Low-latency fiber repeaters that transport and distribute video and control data
  • Up to 24 3G/SD-SDI or MADI modules providing 24 BNC coax-to-fiber ports
  • 3G-SDI, ASI, MADI, 4K ready
  • Hot-swappable SFPs
  • Each dual module can be factory set for input or output
  • Two redundant power supplies; no external PSU needed
  • WDM option for I/O to 3rd party auxiliary fiber on LC
  • Plug-and-Play ready
  • Built in WDM modules
  • Single fiber for multiple combination of channels
  • Lowest power consumption (<20W)
  • Compatible with 3rd party products
Previous Article Mentor RG
Next Article Route66 Series (DISCONTINUED)
Print
2640 Rate this article:
No rating
Item Code

Repeat48-12

Repeat48-24

Repeat48-WDM-12

Repeat48-WDM-24

Technical Specifications Left
Optical Link

Connection: Duplex LC

Protocol: Optocore

Transmission: Full Duplex

Fiber Cable Lengths: Standard singlemode transceiver =10 km; Special singlemode transceiver = 80 km (on request)


Auxiliary Ports
Duplex LC fiber Protocol independent

Video

Standards: SD, ED, HD, Dual Link, 3G

Complies with SMPTE: 259M, 292M, 344M, 372M, 424M

Interface: SDI – Serial Digital Interface


Optical Connection
Complies with 21 CFR 1040.10 and 1040.11
Technical Specifications Right
Power Supply

Type: Switch-mode, universal input

Main Voltage: 100-240V; 50-60Hz

Frequency: 50-60Hz

Cooling: Passive, via surface and ventilation openings on both sides of the device Dual Redundancy


Dimensions

1.73 x 19 x 7.87 in (HxWxD)

(44 x 483 x 200mm)


Weight
Dependent on configuration
