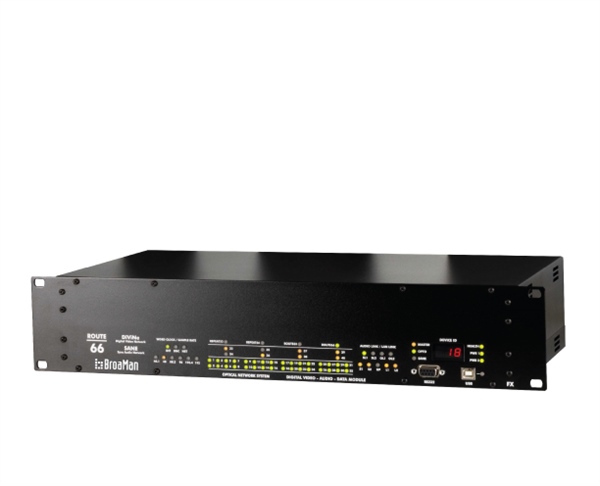

Route66 Series (DISCONTINUED)
Clear-Com Marketing

Route66 Series (DISCONTINUED)

2RU 40x40 Optical Multiplexer Devices

  • Uses CWDM or DWDM to single-fiber I/O ports
  • Up to 24 BNC-SDI ports for 3G/HD/SD video input or output with or without reclockers
  • Up to 20 additional general protocol-independent duplex LC fiber ports
  • Up to 36 general protocol-independent simplex LC fiber ports
  • Protocol Independence for routing 1G Ethernet, SMPTE311m camera feeds, intercom, MADI, Optocore signals and 3rd-party digital audio at the same time on the same device
  • Compatible with BroaMan devices for distributed transport solutions
  • Optional Route66 will automatically patch assigned channels to 5, 10, or 20 satellite stageboxes
Previous Article Repeat48 Series (DISCONTINUED)
Next Article CC-27 (DISCONTINUED)
Print
3359 Rate this article:
No rating
Item Code

Route66-AUTO-5

Route66-AUTO-10

Route66-AUTO-15

Route66-AUTO-20

Technical Specifications Left
Optical Link

Connection: Duplex LC

Protocol: Independent (no restriction)

Transmission: Full Duplex

Fiber Cable Lengths: Standard single mode transceiver =10 km; Special single mode transceiver = 80 km (on request)


SANE, LAN Ports

Audio: TIA – 568A/B, Optocore; 200 Mbit/s

LAN: TIA – 568A/B, IEEE - 802.3; 10/100 Mbit/s


Auxiliary Ports
Fiber Duplex LC 1310nm fiber tunnel Protocol: Independent (no restrictions)
Data Port

Data Channels: Digital control data; 4

Data Rate: Up to 10 Mbps


Impedance

Termination: 330 O

Source: = 10 O


Video

Standards: SD, ED, HD, Dual Link, 3G

Complies with SMPTE: 259M, 292M, 344M, 372M, 424M

Interface: SDI – Serial Digital Interface

Technical Specifications Right
Word Clock

Hardware Standard: BNC – 75 O

Data Rate: Dependent on sample rate; Up to 192 kHz

Impedance: Output = 5, O Input 75 O

Drive Level: Output; = 1 Vpp

Zero Level: Referring to GND; +1.7 V

Sense Level: Input; = 400 mVpp


Optical Connection
Complies with 21 CFR 1040.10 and 1040.11

Remote Control

RS232: EIA / TIA – 232; 57 600 Baud

USB: USB 2.0 – Device; 12 Mbit/s

LAN: IEEE – 802.3; 10/100 Mbit/s


Power Supply

Type: Switch-mode, universal input

Main Voltage: 100-240V; 50-60Hz

Frequency: 50-60Hz

Cooling: Passive, via surface and ventilation openings on both sides of the device

Dual Redundancy


Dimensions

3.46 x 19 x 7.87in (HxWxD)

(88 x 483 x 200mm)


Weight
Dependent on configuration
