PG16-AUDIO (DISCONTINUED)
Clear-Com Marketing

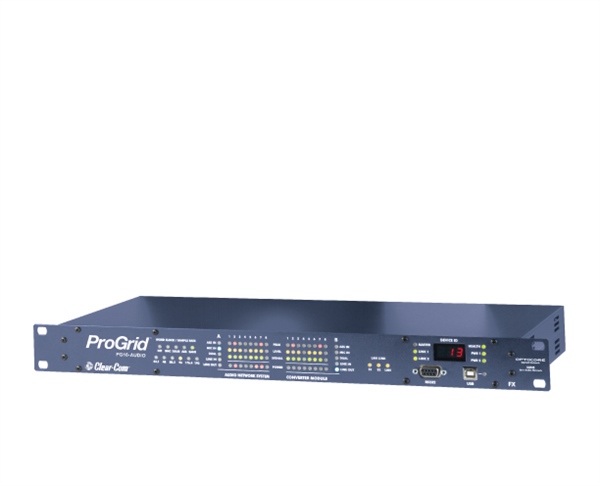

PG16-AUDIO (DISCONTINUED)

16-channel Digital Audio I/O Interface Device

  • Features the Optocore™ Optical and SANE™ CAT5 Digital Network technologies
  • Can use as AES/EBU inputs or outputs
  • 4 x RS485 serial data connections
  • Word Clock input and output
  • 2 x optical LINK interface with duplex LC connectors (FX version only)
  • 2 x AES/EBU ports, 16 channels each (TP version only)
  • USB, RS232 and LAN ports for configuration and control
  • Dual power supply for redundancy
  • 4 card types: 8 mic inputs, 8 line inputs, 8 line outputs, 8 dual mic inputs
Previous Article AB-120 (Last Time Buy)
Next Article PTX-3
Print
2922 Rate this article:
No rating
Item Code

PG16-16MI-FX

PG16-16MI-TP

PG16-8MI-8LO-FX

PG16-8MI-8LO-TP

PG16-8LI-8LO-FX

PG16-8LI-8LO-TP

PG16-8DMPRE-FX

PG16-8DMPRE-TP

PG16-16LI-FX

PG16-16LI-TP

PG16-16LO-FX

PG16-16LO-TP

PG16-8MI-8LI-FX

PG16-8MI-8LI-TP

PG16-8AE-FX

PG16-8AE-TP

PG16-8AE-SRC-FX

PG16-8AE-SRC-TP

PG16-4AE-8MI-FX

PG16-4AE-8MI-TP

PG16-4AE-8LI-FX

PG16-4AE-8LI-TP

PG16-4AE-8LO-FX

PG16-4AE-8LO-TP

Technical Specifications Left
Analog Audio Mic Inputs

ADC

Gain/Steps: 0dB to +70dB; 1dB steps

Maximum Input Level: @ 0dB gain: +22dBu; @+70 dB gain: -48dBu

SNR: @ 0dB gain: 118.5dB(A); @ +30dB gain: 116.5dB(A)

Dynamic Range: @ 0dB gain: > 118.5dB(A); gain +ADC: > 154dB


Analog Audio Line Inputs

ADC

Gain/Steps: -5, 0 +4, +14dB; 4dB steps

Maximum Input Level: @ -5dB gain: +27dBu; @+14dB gain: +8dBu

SNR: @ 0dB gain: 118dB(A); @ +14dB gain: 118dB(A)

Dynamic Range: @ 0dB gain: > 118.5dB(A); gain +ADC: > 137dB


Analog Audio Line Outputs

ADC

Gain/Steps: 0 , -4, -10, -14dB; 4dB steps

Maximum Output Level: @ 0dB gain: +22dBu; @-14dB gain: +8dBu

SNR: @ 0dB gain: 119dB(A); @ -14dB gain: 118dB(A)

Dynamic Range: @ 0dB gain: > 119dB(A); gain +ADC: > 134dB


Word Clock

Hardware standard: 75Ohm / BNC

Data Rate: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (Depending on used sample rate)

Technical Specifications Right
Optical Link (PG16-AUDIO-FX and PG8-AUDIO-FX devices only)

Input, Output, Dual: Full bandwidth

Connection: Duplex LC

Protocol: Optocore

Transmission: Full-duplex

Data Rate: 2 x 2Gbps

Optical Wave Guide Cable Lengths: Multi-mode fiber 50µm; = 700 m Single-mode fiber 9µm; <10km (70 km on request)


Power Supply

Number of Power Supplies: 2 (with function check and automatic switch-over)

Type: Switch-mode, universal input

Mains Voltage: 100 - 240V AC; 50 - 60Hz; 10VA-typ

Frequency: 50 - 60Hz


Remote Control

RS232/USB/Ethernet Port: Interface to PC


Connectivity Options

Fiber 4-Wire


Dimensions

19.2 x 1.73 x 7.87in (WxHxD)

(483 x 44 x 200mm)


Weight

6.0lbs (2.7kg)
