IMF-3
Clear-Com Marketing

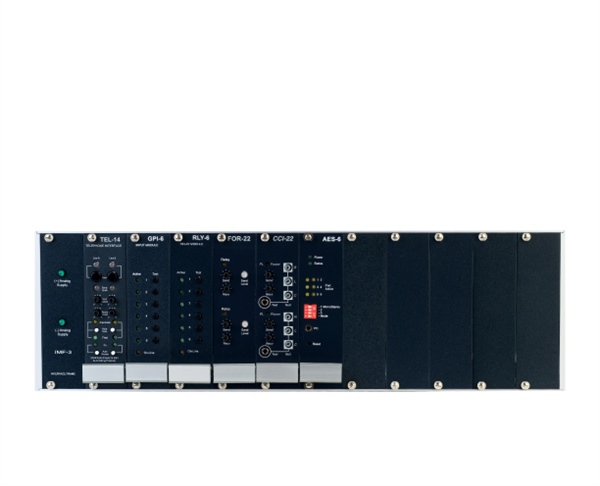

IMF-3

3RU Interface Module Frame

  • Frame to hold up to 11 interface modules
  • Requires PSU-101 power supply
Previous Article Clear-Com Concert (DISCONTINUED)
Next Article IMF-102
Print
6964 Rate this article:
No rating
Item Code

IMF-3

Technical Specifications Left
Plug-in Module Capacity: 11

Rear Panel Connectors

(2) 10-pin Jones (for PSU-101 power supply)

To Matrix Frame: (22) RJ-45 (when all interface modules are installed)

Interface I/O: (22) DB9-M (when all interface modules are installed)


Power
200mA from PSU-101 power supply
Technical Specifications Right
Environmental

Operating Temperature: 0º - 50º C (32º - 125º F)

Humidity: 20% to 90%, non-condensing


Dimensions

5.2 x 19 x 13.75in (HxWxD)

(133 x 483 x 345mm)


Weight
10lbs (4.5kg)
