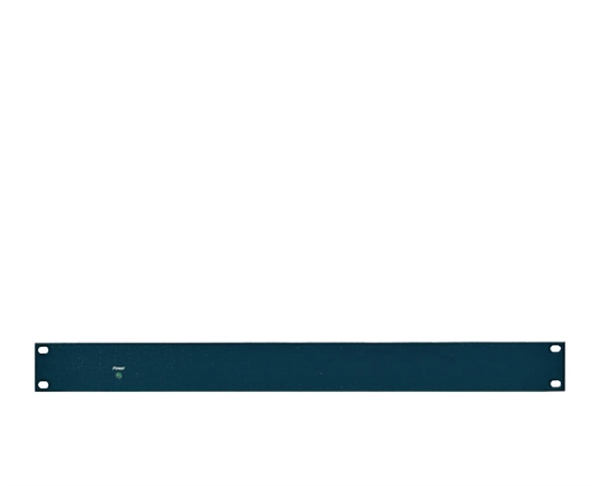

IFB-104
Clear-Com Marketing

IFB-104

4-port IFB Breakout Interface

  • Connects up to 4 IFB feeds to matrix ports
  • Individual or multiple earbuds or headphones used directly from each port
  • No external power required
  • Rear-mounted wet/dry switch
  • Transformer-coupled signal from port to XLR output
Previous Article Agent-IC Mobile App for Eclipse HX
Next Article Clear-Com Concert (DISCONTINUED)
Print
6942 Rate this article:
No rating
Item Code

IFB-104

Technical Specifications Left
Indicators: \"Power-on\" LED

Connectors

Program Input: (4) 3-pin XLR female

To Matrix Frame: (4) RJ-45

Talent: (4) 3-pin XLR male

DC Power: (1) 3-pin XLR male; (1) 3-pin XLR female


Program Input

Type: Transformer isolated

Impedance: 600Ω  bridging

Level: 0 dBv


Headphone Talent Receiver Outputs

Impedance: 600KΩ  transformer balanced

Power: 1 mW into 600Ω

Technical Specifications Right
Line Input (2-pair talk to matrix)

Type: Transformer balanced

Impedance: 600KΩ

Level: 0 dBv nominal

Frequency Response: 100Hz-15kHz, +/-2dB


Environmental

Operating Temperature: 0º - 50ºC (32º - 125ºF)

Humidity: 20% to 90%, non-condensing


Dimensions

1.75 x 19 x 2in (HxWxD)

(89 x 483 x 51mm)


Weight

1.8lbs (0.82kg)
