IVC-32-HX (DISCONTINUED)
Clear-Com Marketing
/ Categories: Products

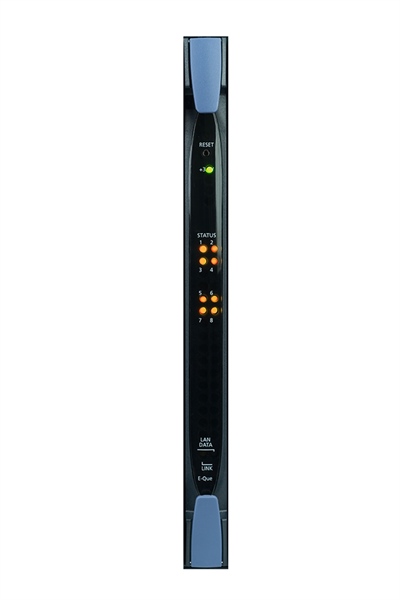

IVC-32-HX (DISCONTINUED)

  • IP Interface Card
  • Up to 32 independently configurable AoIP channels per card
  • For use with Eclipse HX Card Frames: HX-Omega, HX-Median and HX-Delta
  • Up to 4 cards supported in HX-Delta and HX-Median frames, Up to 6 cards supported in HX-Omega frame (with restrictions)
  • Each channel optimized for LAN, WAN and Internet
  • 722 audio compression/decompression on all channels
  • IP connecting to V-Series panels, Agent-IC and Concert clients
  • IP connection to Eclipse HX and LQ Series
  • Intercom plus 2 auxiliary channels for V-Series
  • N+1 card redundancy
  • Eclipse HX Configuration Software (EHX)
Next Article LMC-64-HX (DISCONTINUED)
Print
2063 Rate this article:
No rating
Item Code

IVC-32-HX

Technical Specifications Left
Maximum cards per frame: 4, 6 for HX-Omega frames.
Ports per card: 32

Network

CODEC: G.722 CODEC, 16khHz sample rate (@64kbps)

Connectivity: CAT5

IP addressing: Static and DHCP

Network compatibility: Layer 1 and Layer 2: LAN, WAN, VPN infrastructure. Routable via 3G, 4G, LTE data services

Physical LAN: 100BASE-T Full-Duplex (Auto-negotiation not supported)


Audio

Audio Passband: 100Hz - 7kHz

Latency: 45ms for LAN connected V-Series panels

Minimum Network bandwidth required per duplex connection: 140kb/s per each direction

Ports required: 1

Protocols used: TCP/IP, UDP

Quality of Service: TOS set for Priority, Immediate and Critical

Technical Specifications Right
Weight
Front Card: 1.64lbs (0.75kg)

Power
(front and rear cards combined) +3.3V 3.5A +5V 0.7A +12V 0.05A

Environmental

Operating Temperature: +32º F to +104º F (0º C to +40º C)

Storage Temperature: -67º F to +158º C (-55º C to +70º C)

Humidity: 40 - 90%, non-condensing


Dimensions

Height: 6RU (vertically in Eclipse HX-Median and Omega frames, or horizontally in Eclipse HX-Delta frames)

Depth:

Front Panel: 11.8in (300mm)

Rear Panel: 2.28 (58mm)
