BAL-8 (Discontinued)
Clear-Com Marketing
/ Categories: Products

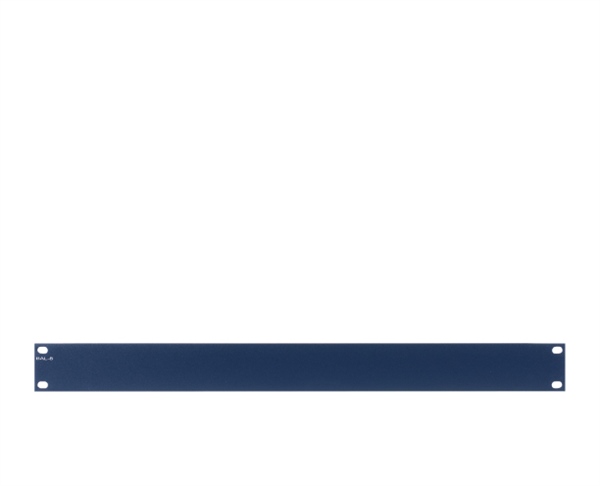

BAL-8 (Discontinued)

8-port Transformer Isolation Adapter Interface

  • Eight 4-pair, transformer-isolated ports
  • Isolates connection between matrix ports and 4-wire device or 2-way radios
  • Ports individually switch between Normal or Interface mode
Previous Article AES-6-CX and AES-6-RJ (DISCONTINUED)
Next Article CCI-22
Print
7531 Rate this article:
No rating
Item Code

BAL-8

Technical Specifications Left
Connectors

Output: (8) RJ45 (to interfaces)

Input: (8) RJ45 (from Matrix)

Indicators: \"Power-on\" LED


Audio

Isolation: All balanced audio pairs (2 per port connection) are transformer isolated

Frequency Response: 100Hz - 15kHz

Max Level: +10dBm

Technical Specifications Right
Environmental

Operating Temperature: 0º - 50º C (32º - 125º F)

Humidity: 20% to 90%, non-condensing


Dimensions

1.75 x 19 x 2in (HxWxD)

(89 x 483 x 51mm)


Weight
5.0lbs (2.3kg)
