AES-6-CX and AES-6-RJ (DISCONTINUED)
Clear-Com Marketing
/ Categories: Products

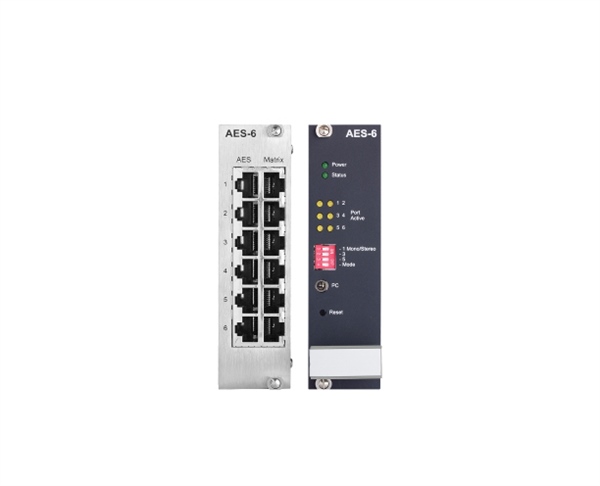

AES-6-CX and AES-6-RJ (DISCONTINUED)

  • 6-Channel AES3 Digital or Co-ax Audio Interface Module
 Both Modules:
  • 6 RJ-45 connections to Eclipse HX MVX ports
  • Connect Eclipse HX to 3rd party equipment with AES ports
  • Eclipse HX Configuration Software (EHX)
  • 24-Bit resolution
AES-6-RJ Module Only:
  • 6 RJ-45 connections to AES-3 audio (AES-6-RJ)
  • Stereo or Mono operation per channel
  • Decompression on all channels
  • 1, 48 or 96KHz sample rate options
  • Forward Error Correction (FEC) on all channels
AES-6-CX Module Only:
  • 6 BNC 75 Ohm Co-ax connections (AES-6-CX)
  • 48KHz sample rate
  • 2 audio returns from the matrix to panel
Previous Article FSII-TCVR-24
Next Article BAL-8 (Last Time Buy)
Print
1270 Rate this article:
No rating
Item Code

AES-6-RJ

AES-6-CX

Technical Specifications Left
Specification

Audio Sample Rate: 44.1kHz-96kHz

CODEC Resolution: 24 Bits

Frequency Response: 30Hz - 22kHz ±3dB

Signal to Noise Ratio: <-65dB (22-22kHz filter RMS)

Crosstalk (adjacent channel): <-75dB @1kHz

Nominal Level: 0dBu

Input Impedance: >10K

Output impedance: 150R

Headroom: +18dBu

Distortion: < 0.1% @ +18dBu 300Hz - 10kHz < 0.5% @ +18dBu 100Hz - 20kHz

Technical Specifications Right
Environmental

Operating Temperature: 32°F - 104°F (0°C - 40°C)

Storage Temperature: -67°F - 158°F (-55°C - 70°C)

Humidity: 90% non-condensing


Dimensions

5.06 x 1.38 x 9.16in (HxWxD)

(129 x 35 x 233mm)


Weight
12.5oz (0.32kg)
