TRANSMITTER
Type: Synthesized, 720 channels

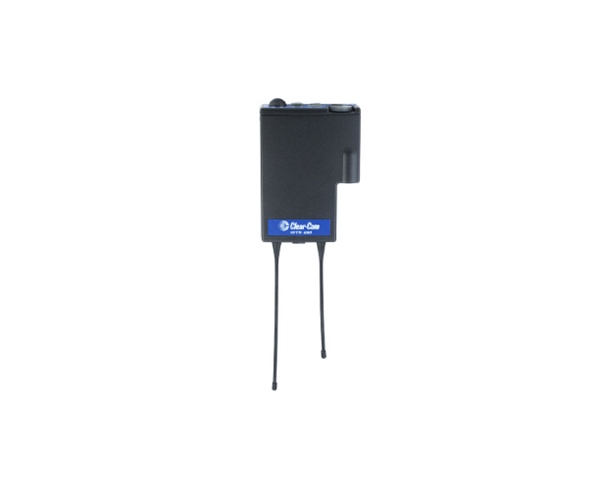

Transmit Power: WTR-680/WTR-670: 50 mW max. (auto-power reduction when close to base)
RF Frequency Stability: 0.005%
Modulation: FM, 40 KHz Deviation
Modulation Limiter: Peak-Responding Compressor
Modulation Frequency Range: 300 Hz -8,000 Hz +-2 dB
Microphone Audio Input: 30 W - 3,500 W
Microphone Input Sensitivity: 9 mV
Radiated Harmonics & Spurious: Exceeds FCC specifications
FCC Acceptance: Type accepted under FCC Part 74
RECEIVER
Type: Dual Conversion Superheterodyne, Synthesized, FM, 720 channels
RF Sensitivity: <0.7 mV for 12 dB SINAD
Signal-to-Noise Ratio: 95 dB
IF Selectivity: 3 dB at 230 KHz
Image Rejection: 70 dB or better
Squelch Quieting: 95 dB
RF Frequency Stability: 0.005%
Distortion: <1% at full deviation
Local Headset Output: 40mW output into 600 W (1% distortion)
FCC Acceptance: Notification under FCC Part 15
IMPORTANT NOTICE:
The FCC has finished its sale of the 600 MHz frequency bands in the United States, and has set a date of July 13, 2020, for wireless intercom users to cease operation in the 617-652 MHz and 663-698 MHz frequencies. If you are in the US and planning on purchasing a WBS system, please order the following models: WBS-680/E88 WTR-680/E88
