WTR-670 (DISCONTINUED)
Clear-Com Marketing
/ Categories: Products

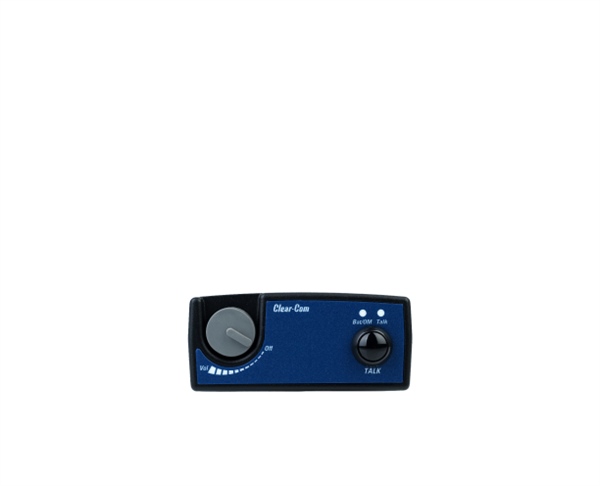

WTR-670 (DISCONTINUED)

  • UHF band, single-channel wireless intercom beltpack
  • UHF band: operate in select frequency bands between 518-686MHz
  • Single-channel
  • Extremely light, durable cast magnesium
  • Durable, detachable antennas are secured to the beltpack via threaded post connectors
  • Low-profile volume control
  • Robust, distinguishable momentary latch talk button.
Previous Article WTR-4C (DISCONTINUED)
Next Article WTR-680 (DISCONTINUED)
Print
1943 Rate this article:
No rating
Item Code

WTR-670/A2, WTR-670/B4, WTR-670/C3, WTR-670/C6, WTR-670/G9, \"WTR-670/xx B4= B4 Frequency Band, C3= C3 Frequency Band, C6= C6 Frequency Band, G9= G9 Frequency Band \"

Technical Specifications Left
BELTPACK

RF Frequency Range: 518 - 608 MHz, 614 - 686 MHz in 18 MHz TX and RX bands

WTR-670: G9 band, 844-862 MHz Tx, Germany only

Power Requirement: 6 Alkaline “AA” Cells (NiMH optional)

Typical Battery Life Alkaline: 14 Hours (Continuous duty with talk light on)

Typical Battery Life - Nickel Metal Hydride (1500 mAh): 11 Hours (Continuous duty with talk light on)

Current Draw: 140 mA (Push-to-Talk, Talk On)

Temperature Range:  -4oF to 140oF (20oC to 55oC)

Dimensions: 3.75 x 5.05 x 1.65in (WxHxD)

(9.5 x 12.8 x 4.2cm)

Weight: 16 oz. (0.454 kg) with batteries 15 oz. (0.425 kg) with batteries

Transmit Antenna: 1/4 Wave (supplied), Screw type

Receiver Antenna: 1/4 Wave (supplied), Screw type

FCC ID: B5DM515

Frequency Response: 300 - 8,000Hz

Four-Wire Input:  N/A

Four-Wire Output: N/A

Clear-Com® Party-line Levels: N/A

RTS® Party-line Levels: N/A

Telex® Party-line Levels: N/A

Auxiliary Input: N/A

Auliliary Output: N/A

Technical Specifications Right
TRANSMITTER

Type: Synthesized, 720 channels

Transmit Power: WTR-680/WTR-670: 50 mW max. (auto-power reduction when close to base)

RF Frequency Stability: 0.005%

Modulation: FM, 40 KHz Deviation

Modulation Limiter: Peak-Responding Compressor

Modulation Frequency Range: 300 -8,000Hz +-2dB

Microphone Audio Input: 30 - 3,500W

Microphone Input Sensitivity: 9mV

Radiated Harmonics & Spurious: Exceeds FCC specifications

FCC Acceptance: Type accepted under FCC Part 74


RECEIVER

Type: Dual Conversion Superheterodyne, Synthesized, FM, 720 channels

RF Sensitivity: <0.7mV for 12dB SINAD

Signal-to-Noise Ratio: 95dB

IF Selectivity: 3dB at 230kHz

Image Rejection: 70dB or better

Squelch Quieting: 95dB

RF Frequency Stability: 0.005%

Distortion: <1% at full deviation

Local Headset Output: 40mW output into 600 W (1% distortion)

FCC Acceptance: Notification under FCC Part 15
