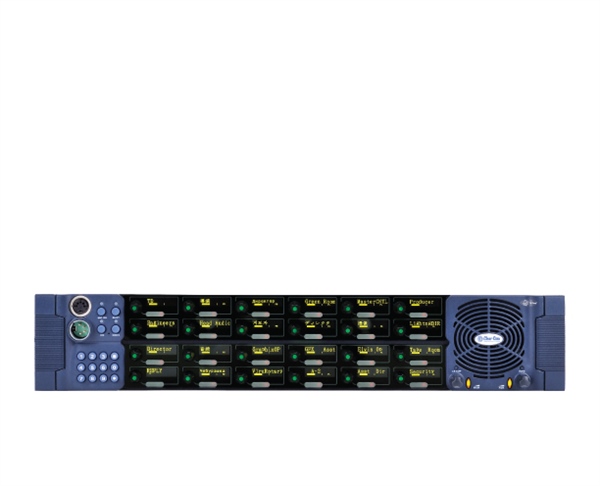

V24RD (DISCONTINUED)

V-Series 24-key 2RU Rotary Panel

  • 24 Talk pushbuttons and 24 Listen rotary switches for use with Eclipse HX matrix frames
  • Individual rotary audio level controls for personal mixes
  • Yellow OLEDs for better contrast and visibility
  • Horizontal or vertical font display options
  • Color-coded keys for easily identifiable color tallies
  • Listen Again function to replay calls
  • Fast key assign from pre-defined scroll lists and/or keypad
  • International 10-character alpha-numeric fonts: Cyrillic, Hangul, Hebrew, Kanji, Katakana and Arabic
  • Digital Signal Processing for audio routing, EQ and Dynamics, IFB routing and local loudspeaker dimming
  • Optional AES-3 or AES-6 cards for connections to CAT5, co-ax, EMADI-64 or AES-6 interfaces
  • Multi-channel matrix connection: direct connect (1 main +2 aux), AES-3 (2 channels), IP (3 channels)
Next Article GPI-6 (Last Time Buy)
Print
2881 Rate this article:
No rating
Item Code

V24RDX4

V24RDX5

V24RDX7

V24RDX4-AES

V24RDX5-AES

V24RDX7-AES

Technical Specifications Left
Front Panel Controls and Connectors

Talk/Listen Switches: 24

Answer Back Switch: Configurable (None, 1 or 2)

Volume Controls: 2 (Main and Aux)

Headset Connector: 1 (XLR-4M or XLR-5F)

Panel Mic Connector: 1 (3-pin)


Rear Panel Connectors

GPIO: DB-25F

Matrix: RJ45 (single-channel)

Matrix (IP): RJ45 (multi-channel)

Auxiliary Audio: DB-25M

Expansion Panel: RJ45

DC Power: 4-pin DIN

With AES Option: AES (75 Ohms Co-Ax): BNC (dual channel)

AES (CAT5): RJ45 (dual channel)


Headset Audio

Earphone Impedence: From 32 Ohms

Output Power: 75mW into 50 Ohms for <1% distortion


Loudspeaker Audio
Frequency Response: 40Hz-20kHz +/- 3dB
Technical Specifications Right
Panel Microphone Input

Type: Electret

Level: 40-70dBu

Impedence: 1700 Ohms +/- 10%


Headset Microphone Input

Type: Dynamic or Electret

Level: -40 - 0dBu


Main Power Supply (External)

Voltage: 100/240V AC +/- 10%

Frequency: 50 - 60Hz

Power: 50W maximum


Environmental

Operating: +32º – +125º F (0º – +50º C)

Storage: +32º – +150º F (0º – +70º C)

Humidity: Between 20% and 90%, Non-Condensing


Dimensions

3.5 x 19 x 6.75in (HxWxD)

(89 x 483 x 172mm)


Weight
7.5lbs (4.0kg)
