V12RDE (DISCONTINUED)
Clear-Com Marketing
/ Categories: Products

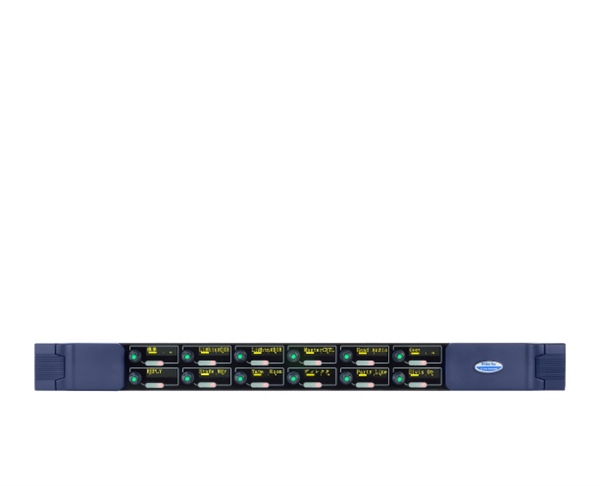

V12RDE (DISCONTINUED)

V-Series 12-key 1RU Rotary Expansion Panel

  • 12 Talk pushbuttons and 12 Listen rotary switches for use with Eclipse HX matrix frames
  • Up to 8 expansions panels can be added to each host panel and up to 16ft (5m) away
  • Individual rotary audio level controls for personal mixes
  • Yellow OLEDs for better contrast and visibility
  • Horizontal or vertical font display options
  • Color-coded keys for easily identifiable color tallies
  • Listen Again function to replay calls
  • International 10-character alpha-numeric fonts: Cyrillic, Hangul, Hebrew, Kanji, Katakana and Arabic
  • Digital Signal Processing for audio routing, EQ and Dynamics, IFB routing and local loudspeaker dimming
  • Multi-channel matrix connection: direct connect (1 main +2 aux), AES-3 (2 channels), IP (3 channels)
Previous Article i-1210E (DISCONTINUED)
Next Article i-1400E (DISCONTINUED)
Print
2609 Rate this article:
No rating
Item Code

V12RDE

Technical Specifications Left
Front Panel Controls and Connectors
Talk/Listen Switches: 12

Rear Panel Connectors

Expansion Panel: RJ-45

DC Power: 4-pin DIN


Main Power Supply (External)

Voltage: 100/240V AC +/- 10%

Frequency: 50 - 60Hz

Power: 50W maximum

Technical Specifications Right
Environmental

Operating: +32º – +125º F (0º – +50º C)

Storage: +32º – +150º F (0º – +70º C)

Humidity: Between 20% and 90%, Non-Condensing


Dimensions

1.76 x 19 x 6.75in (HxWxD)

(44 x 483 x 172mm)


Weight
3.5lbs (1.6kg)
Mark as DiscontinuedDiscontinued
Rank9999
IsActiveTest
