i-Series e-1410E (DISCONTINUED)
Clear-Com Marketing
/ Categories: Products

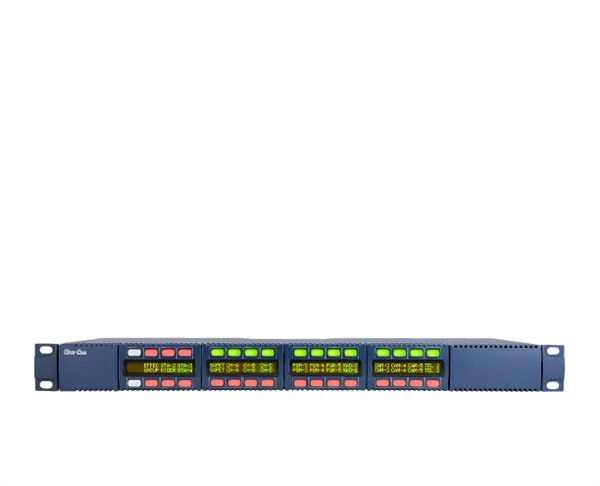

i-Series e-1410E (DISCONTINUED)

i-Series 32-key Pushbutton Expansion Panel (4 Display Modules)

  • 32 pushbuttons and 4 alphanumeric displays for use with Eclipse HX matrix frames
  • Up to 5 expansion panels can be connected to i-Series panels
  • Modular and configurable
  • Individual cross-point volume level control via main volume encoder
  • 5-character alpha-numeric display
  • High-contrast yellow and black LED display
Previous Article FSII-Base-II-5
Next Article E-FIB-HX
Print
1408 Rate this article:
No rating
Item Code

e-1410E

Technical Specifications Left
Front Panel Controls & Connectors

Talk/Listen Buttons: 32

Rear Panel Connectors To Matrix: RJ45 DB-15F

Expansion: RJ45

Power: 3-pin EIA connector


Main Power Supply (Internal)

Voltage: 90/240V AC +/- 10%

Frequency: 50-60Hz

Power: 50W maximum

Technical Specifications Right
Environmental

Operating: 32°-125° F (0°-50° C)

Storage: 32°-150° F (0°-70° C)

Humidity: Between 20% and 90%, non-condensing


Dimensions

1.75 x 19 x 8.25in (HxWxD)

(45 x 482 x 210mm)


Weight
7.5lbs (3.4kg)
Mark as DiscontinuedDiscontinued
Rank9999
IsActiveTest
