i-1430E (DISCONTINUED)
Clear-Com Marketing
/ Categories: Products

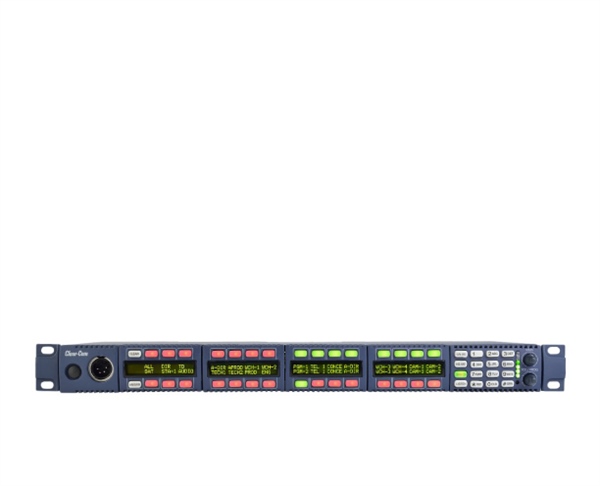

i-1430E (DISCONTINUED)

i-Series 32-key Pushbutton Panel (4 Display Modules)

  • 32 pushbuttons and 4 alphanumeric displays for use with Eclipse HX matrix frames
  • Modular and configurable
  • Auto-sensing headset and microphone connectors
  • Individual cross-point volume level control via main volume encoder
  • 5-character alpha-numeric display
  • High-contrast yellow and black LED display
Previous Article E-DANTE64-HX
Next Article i-1470E (DISCONTINUED)
Print
1400 Rate this article:
No rating
Item Code

i-1430E

Technical Specifications Left
Front Panel Controls & Connectors

Talk/Listen Buttons: 32

Function Buttons: 4

Answer Back Button: 1

Clear Button: 1

Volume Controls: 2 (Main and vol/prog)

Headset Connector: 1 (XLR-4M)

Panel Mic Connector: 1 locking 1/4 in.phone jack


Rear Panel Connectors

To Matrix: RJ45 DB-15F

Expansion: RJ45

Power: 3-pin EIA connector


Headset Audio

Earphone Impedence: From 50 0hms

Output Power: 0.5W into 50 Ohms for <1% distortion


Loudspeaker Audio
Frequency Response: 40Hz-20KHz +/- 3dB

Panel Microphone Input

Type: Electret

Level: -40 dBu

Impedence: 200 0hms +/-10%


Headset Microphone Inputs

Type: Dynamic

Level: -55-0dBu

Technical Specifications Right
Main Power Supply (Internal)

Voltage: 90/240 VAC +/- 10%

Frequency: 50-60Hz

Power: 50 W maximum


Environmental

Operating: 32°-125° F (0°-50° C)

Storage: 32°-150° F (0°-70° C)

Humidity: Between 20% and 90%, non-condensing


Dimensions

1.75 x 19 x 8.25in (HxWxD)

(45 x 482 x 210mm)


Weight
7.5lbs (3.4kg)
