E-QUE-HX (DISCONTINUED)
Clear-Com Marketing
/ Categories: Products

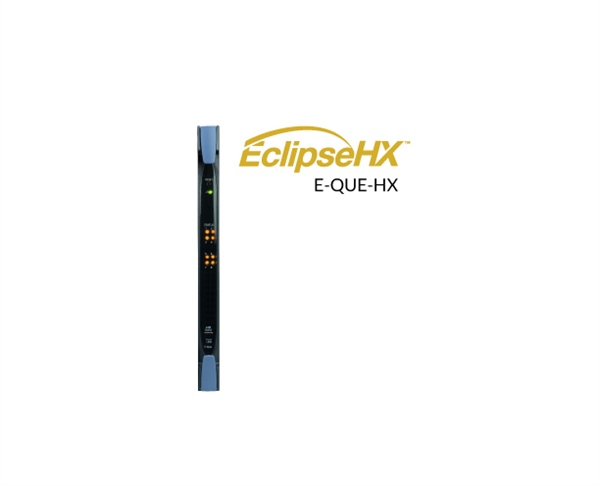

E-QUE-HX (DISCONTINUED)

Wireless Controller Interface Card

  • Connectivity for FreeSpeak II Wireless
  • For use with Eclipse HX Card Frames: HX-Omega, HX-Median and HX-Delta
  • Up to 4 cards supported in HX-Delta and HX-Median frames, Up to 6 cards supported in HX-Omega frame (with restrictions)
  • Supports up to 50 FSII beltpacks
  • Up to 200 pre-set beltpack user roles
  • Full-duplex 7KHz commentator bandwidth
  • Up to 10 FSII transceivers per card
  • Supports legacy CellCom/FreeSpeak beltpacks
  • Eclipse HX Configuration Software (EHX)
Previous Article E-MADI64-HX
Next Article V32LD (DISCONTINUED)
Print
2065 Rate this article:
No rating
Item Code

E-QUE-HX

Technical Specifications Left
Specifications

Maximum cards per frame: 4 (6 in HX-Omega with restrictions)

Beltpacks per card: 50 FSII 1.9GHz, 40 FSII 2.4GHz, 40 CellCom/FreeSpeak

Audio Passband: 100Hz – 7kHz G.722

Codec: 16kHz sample rate (@64kb/s)

Connectivity: CAT5

Maximum Active Antenna Support: 10 per card

Power (combined cards): +3.3V, 3.5A; +5V, 0.7A; +12V, 0.05A

Technical Specifications Right
Environmental

Operating Temperature: 32°F - +104°F (0°C - +40°C)

Storage Temperature: -67°F - +158°F (-55°C - +70°C)

Operating Humidity: 40 – 90%, non-condensing


Dimensions

Front Card: 6RU H x 11.8in D

(6RU H x 300mm D)

Rear Card: 6RU H x 2.3in D

(6RU H x 58mm D)


Weight
2.14 lbs (0.97 kg)
