VI-PNL-12L (DISCONTINUED)
Clear-Com Marketing
/ Categories: Products

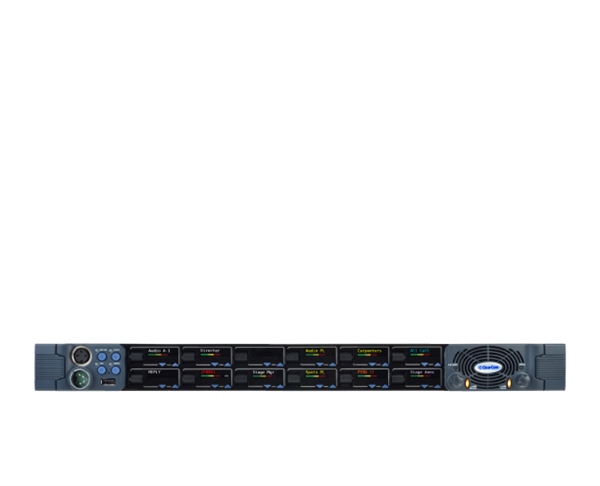

VI-PNL-12L (DISCONTINUED)

V-Series Iris 12-key 1RU Lever Panel

  • Color OLEDs for quick and easy key differentiation
  • AES67 low latency audio IP connections to Eclipse HX matrix frames via E-IPA-HX card
  • Individual key menus help ease of use and assignment
  • Individual up/down audio level controls for personal mixes
  • Fast key assign from pre-defined scroll lists or using numeric pad
  • Optional repositioning of Reply key
  • Optional additional Reply key for busy positions
  • Vertical font display option
  • International 10-character alpha-numeric fonts: Cyrillic, Hangul, Kanji, Katakana and Arabic
  • Digital Signal Processing (DSP) for audio routing, Dynamics, IFB routing and local loudpseaker dimming
  • Built-in Interfaces: Matrix (direct connect), Matrix (Ethernet/IP), GPIO, Aux Audio, 2nd Headset
  • Multi-channel Matrix Connections: Direct connect (1 main + 2 aux), IP (3 channels)
Previous Article Mentor CX
Next Article VI-PNL-24P (DISCONTINUED)
Print
2868 Rate this article:
No rating
Item Code

VI-PNL-12L-X4

VI-PNL-12L-X5

VI-PNL-12L-X7

Technical Specifications Left

Front Panel Controls & Connectors

Talk/Listen Switches: 12 (1RU)

Answer Back Switch: Configurable (None, 1 or 2)

Volume Controls: 2 (Main and Aux)

Headset Connector: 1 (XLR-4M, XLR-5F, XLR-7M)

Panel Mic Connector: 1 (3-pin)



Rear Panel Connectors

GPIO: DB-25F

Matrix: RJ45 (single-channel)

Matrix (IP): RJ45 (multi-channel)

Auxiliary Audio: DB-25M

Expansion Panel: RJ-45

DC Power: 4-pin DIN (with locking sleeve)



Headset Audio

Earphone Impedance: From 32 Ohms

Output Power: 75mW into 50 Ohms for <1% distortion



Loudspeaker Audio

Frequency Response: 40Hz-20KHz +/- 3dB



Panel Microphone Input

Type: Electret

Level: 40-70 dBu

Impedance: 1700 Ohms +/- 10%

Technical Specifications Right

Headset Microphone Input

Type: Dynamic or Electret

Level: -40 - 0 dBu



Main Power Supply (External)

Voltage: 100/240 VAC +/- 10%

Frequency: 50 - 60 Hz

Power: 60W maximum



Environmental

Operating: +32º – +113º F (0º – +45º C)

Storage: +32º – +150º F (0º – +70º C)

Humidity: Between 20% and 90%, Non-Condensing



Dimensions

19 x 1.76 x 6.84in (WxHxD)

(483 x 44 x 174mm)



Weight

4.4 lbs (1.97 kg)
