VI-EXP-12P (DISCONTINUED)
Clear-Com Marketing
/ Categories: Products

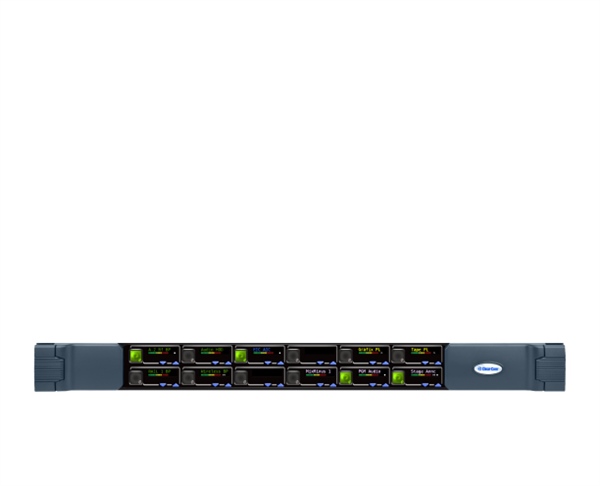

VI-EXP-12P (DISCONTINUED)

V-Series Iris 12-key 1RU Pushbutton Expansion Panel

  • Color OLEDs for quick and easy key differentiation
  • AES67 low latency audio IP connections to Eclipse HX matrix frames via E-IPA-HX card
  • Individual key menus help ease of use and assignment
  • Individual up/down audio level controls for personal mixes
  • Fast key assign from pre-defined scroll lists
  • Optional repositioning of Reply key
  • Optional additional Reply key for busy positions
  • Vertical font display option
  • International 10-character alpha-numeric fonts: Cyrillic, Hangul, Kanji, Katakana and Arabic
  • Digital Signal Processing (DSP) for audio routing, Dynamics, IFB routing and local loudpseaker dimming
  • Built-in Interfaces: Matrix (direct connect), Matrix (Ethernet/IP), GPIO, Aux Audio, 2nd Headset
  • Multi-channel Matrix Connections: Direct connect (1 main + 2 aux), IP (3 channels)
Previous Article VI-PNL-24R (DISCONTINUED)
Next Article VI-PNL-12P (DISCONTINUED)
Print
1631 Rate this article:
No rating
Item Code

VI-EXP-12P

Technical Specifications Left

Front Panel Controls & Connectors
Talk/Listen Switches: 12 (Expansion)



Rear Panel Connectors
Host Panel: RJ45



Environmental

Operating: +32º – +113º F (0º – +45º C)

Storage: +32º – +150º F (0º – +70º C)

Humidity: Between 20% and 90%, Non-Condensing

Technical Specifications Right

Dimensions

19 x 1.76 x 6.42 in (WxHxD)

(483 x 44 x 163 mm)



Weight

3.5 lbs (1.58 kg)
