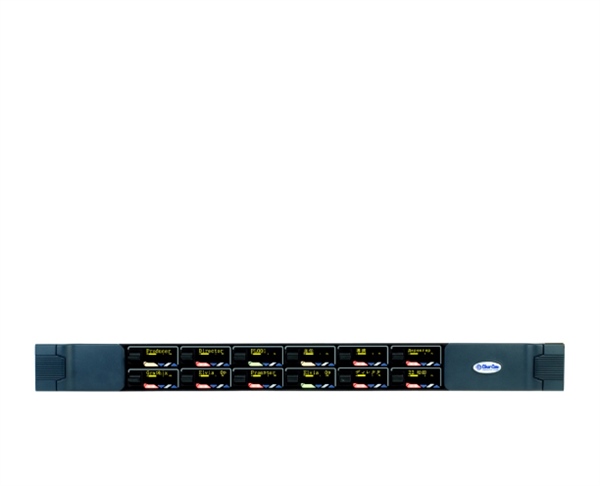

V12LDE (DISCONTINUED)

  • V-Series 12-key 1RU Lever Expansion Panel
  • 12 lever keys and 24 up/down level control buttons for use with Eclipse HX matrix frames
  • Up to 8 expansions panels can be added to each host panel and up to 16ft (5m) away
  • Individual up/down audio level controls for personal mixes
  • Yellow OLEDs for better contrast and visibility
  • Horizontal or vertical font display options
  • Listen Again function to replay calls
  • Fast key assign from pre-defined scroll lists and/or keypad
  • International 10-character alpha-numeric fonts: Cyrillic, Hangul, Hebrew, Kanji, Katakana and Arabic
  • Digital Signal Processing for audio routing, EQ and Dynamics, IFB routing and local loudspeaker dimming
  • Optional AES-3 or AES-6 cards for connections to CAT5, co-ax, EMADI-64 or AES-6 interfaces
  • Multi-channel matrix connection: direct connect (1 main +2 aux), AES-3 (2 channels), IP (3 channels)

NOTE: This is being replaced by the V16LDE V-Series 16-key 1RU Lever Expansion Panel

Previous Article Analog Partyline and Wireless Intercom Connected via IP Interface
Next Article V24LD (DISCONTINUED)
Print
1371 Rate this article:
No rating
Item Code

V12LDEY

Technical Specifications Left
Front Panel Controls & Connectors

Talk/Listen Switches: 11

Answer Back Switch: 1

Volume Controls: 2, (Main and Aux)

Headset Connector: 1 (XLR-4M or XLR-5F)

Panel mic Connector: 1 (3-pin)


Panel Rear Connectors

GPIO: DB-25F

To Matrix: RJ45

Auxiliary Audio: DB-25M

Expansion: RJ45 DC Power 4 DIN

Co-ax option: 75 Ohm BNC

AES3 option: RJ45


Headset Audio

Earphone Impedence: From 32 Ohms

Output Power: 75mW into 50 Ohms for < 1% distortion


Loudspeaker Audio

Frequency Response: 40Hz - 20kHz +/- 3dB


Panel Microphone Input

Type: Electret Input

Level: 40 - 70dBu

Impedance: 1700 Ohms +/- 10%

Technical Specifications Right
Headset Microphone Input

Type: Dynamic or Electret

Level: -40 - 0dBu


Mains Power Supply (External)

Voltage: 100/240V AC +/-10%

Frequency: 50 - 60Hz

Power: 50W maximum


Temperature

Operating: Between 0 and 50°C (32 to 125°F)

Storage: Between 0 and 70°C (32 to 150°F)

Humidity: Between 20% and 90%, Non-Condensing


Dimensions

6.75 x 19.00 x 1.76in (DxWxH)

(172 x 482 x 44mm)


Weight

3.5lbs. (1.6kg)
