FIM-4W2
Clear-Com Marketing

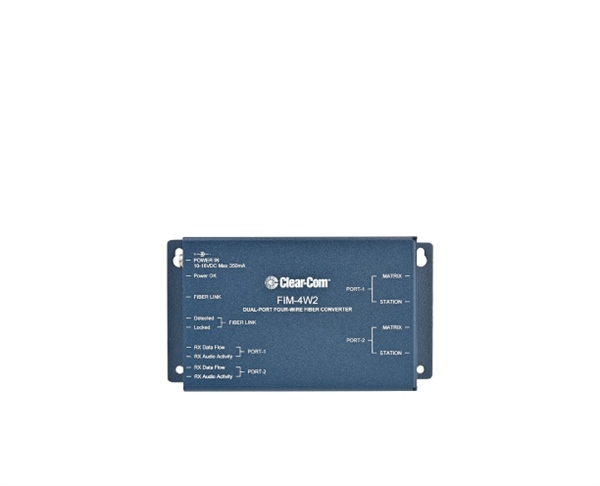

FIM-4W2

Optical Fiber Interface

  • Compact 2-channel interface box
  • Remotely locates one or two digital matrix panels or interface models over fiber
  • 24-bit digital DEMUX
  • 48kHz audio sampling rate
  • Sends and receives RS-422 control data
  • Flat frequency response up to 20kHz, S/N >80dB
  • RJ45 connectors for direct connection with matrix panels, frames and interfaces
  • Can be used to extend any line level 4-wire audio signal
  • Can be used to extend any RS-422 signal
Previous Article VI-EXPB-12R
Next Article The P.A. People Deploy a Clear-Com System on a Grand Scale for UAE 50th National Day Celebration
Print
4865 Rate this article:
No rating
Item Code

FIM-4W2

Optional Accessories and Spare Parts:

453G008-2: Desktop PSU

SFP-SMFO-1G-LX: Single-mode LX Fiber SFP

SPF-MMFO-1G-SX: Multi-mode SX Fiber SFP

CCC-803051: Rack Mount Shelf

WIR-00046: Cable Adapter

WIR-00047: Cable Adapter

Technical Specifications Left
Audio

Transmission Method: Digital, TDM, 48k samples/sec

Input Impedance: >20kΩ, balanced

Output Impedance: 60Ω, balanced

Maximum Input Level: +18dBu, balanced, <1% THD+N

Maximum Output Level: +18dBu balanced; 50-20kHz>10kΩ; <1% THD+N

Frequency Response: 50-20kHz, 0dBu +/-0.4dBu

Total Harmonic Distortion + Noise: <0.2%, across bandwidth, +8dBu <0.007%, 1kHz, max level

Signal to Noise Ratio (SNR): <-80dB, ITU-R 468 wtd; Ref. Max level +18dBu

Port Separation (Crosstalk): <-90dB, Ref. 0dBu, 1kHz. channel to channel

Fiber Data Link Speed: 1.2288Gbps

System Delay: <1ms


Frame-to-Panel Digital Data

Transmission Rate (RS-422, Balanced TTL Levels): 0 to 250 kBits/sec

Jitter: <250ns

Technical Specifications Right
Connectors

Connectors: (4) RJ45

Power Connector: 2.5mm jack, screwlock, center pin positive


Power Supply

Input Voltage Range: 10-18V DC

Power Consumption: @12V per end, all channels at full level; <5 watts

A/C Adapter: Supplied


Temperature

Operating: 32°F - +113°F (0°C - +45°C)

Storage: -22°F - 158°F (-30°C - +70°C)

Humidity: 20%– 90%, non-condensing at 40°C


Dimensions

3.4 x 1.2 x 6.3in (WxHxD)

(86.4 x 30.5 x 160.02mm)


Weight

0.6lbs (0.27kg)
