EQP-TCVR
Krystal Len
/ Categories: Products, EQUIP, Transceiver

EQP-TCVR

  • Power and audio to transceivers
  • Remote monitoring from the EQUIP base station
  • 5 GHz license free radio band
  • Single CAT5/6 cable to EQUIP Base
  • Centrally powered from the EQUIP Base Station
  • Site Survey Mode for transceiver placement
  • 40 Wireless headsets per system
  • Status LEDs
Previous Article Clear-Com Welcomes Dave MacKinnon as Vice President of Product Management
Next Article EQP-BASE
Print
3940 Rate this article:
No rating
Item Code

EQP-TCVR: EQUIP 5 GHz Transceiver



Technical Specifications Left
Connections

Transport Protocol: Data and Audio with power up to 500 ft from the EQUIP Base

Front Panel: LED type: 5 x RGB, one for power and 4 for connection status

Rear Panel: RJ45 port



Frequency Range

Main Radio: 5.180 – 5.8525GHz



Power Supply

Voltage: 48V DC (powered from EP-BASE)

Current: 60 mA pk-pk @ 48 V

Power: 2.88W

Note: Frequency used in each country may vary based on local regulatory requirements.

Technical Specifications Right
Environmental

IP53 water and dust resistance

Operating: 32º-125ºF (0º-50ºC)

Storage: 32º-150ºF (0º-70ºC)

Humidity: Between 20% and 90%, Non-Condensing



Dimensions

6.7 x 7.2 x 1.56 in (HxWxD)

(170.31 x 181.8 x 39.6mm)



Weight

14oz (396g)

Mark as DiscontinuedNo
Rank9999
IsActiveTest

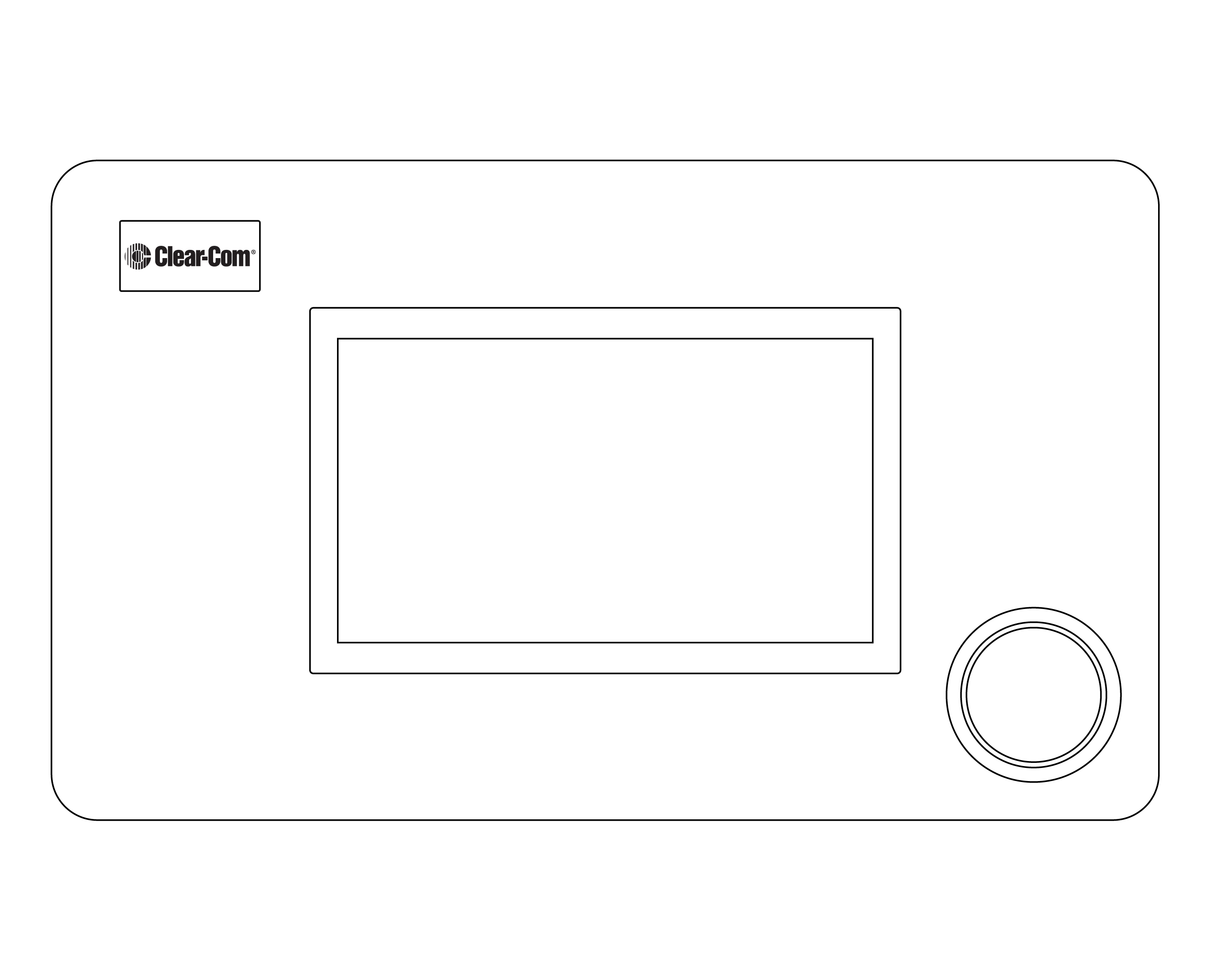

Line DrawingEquip Base_Front_Line-Drawing_Optimized_R1.jpg
