WH301 (DISCONTINUED)
Clear-Com Marketing
/ Categories: Products

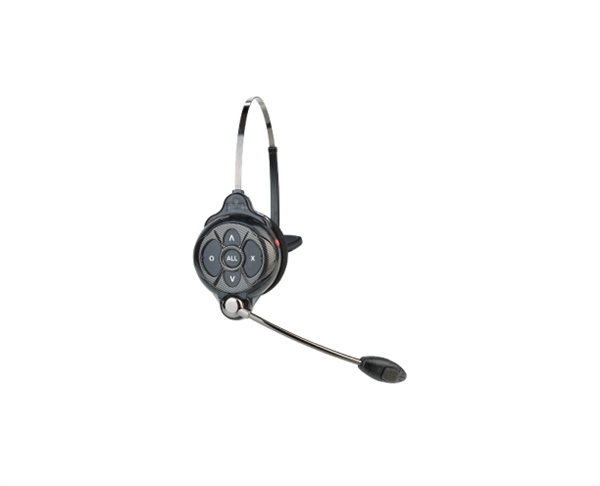

WH301 (DISCONTINUED)

2-Channel All-in-One Wireless Headset

  • Two-channel operation
  • 2.4GHz frequency range
  • Up to 15 all-in-one headsets on a single system
  • Hands-free communication
  • Single-ear, light-weight design
  • 5 kHz wide band audio
  • Rugged and reliable
  • Up to 12 hours of battery life
  • Uses BAT50 Battery and AC50 Battery Charger
Previous Article BP300 (DISCONTINUED)
Next Article WH410
Print
2179 Rate this article:
No rating
Item Code

CZ-WH301

Technical Specifications Left
Audio

Channels: 2 audio channels

Frequency Range: 2400MHz – 2483.5MHz

Frequency Response: 200Hz –3.5kHz

Antenna: Internal, horizontal/vertical diversity

Headset Connector: 4-pin, mini-DIN

Microphone: Electret

Headset Output: 160mW into 32 Ohms

Communication Security: 64-bit encryption

System Distortion: <2%

Controls: Power, Volume-Up, Volume-Down, X, O, All

Indicators: Dual-color LED (red/green)

Battery Requirements: 3.6V lithium-ion

Battery Life: Up to 12 hours


Antenna
Internal
Technical Specifications Right
Transmitter

Type: Frequency Hopping, Spread Spectrum (FHSS)

Transmit Power: 100mW burst

Modes: Momentary or Latch

Type: Gaussian filtered FSK, TDMA

Frequency Stability: 13ppm

Harmonics/Spurious: Exceeds FCC and ETSI specifications


Receiver

Type: Frequency Hopping, Spread Spectrum (FHSS)

RF Sensitivity: <-90dBm w 10-3 BER

Frequency Stability: 13ppm

Distortion: <2%


Environmental
32° to +122°F (0° to +50°C)

Weight
5.7oz (0.16kg) including battery
