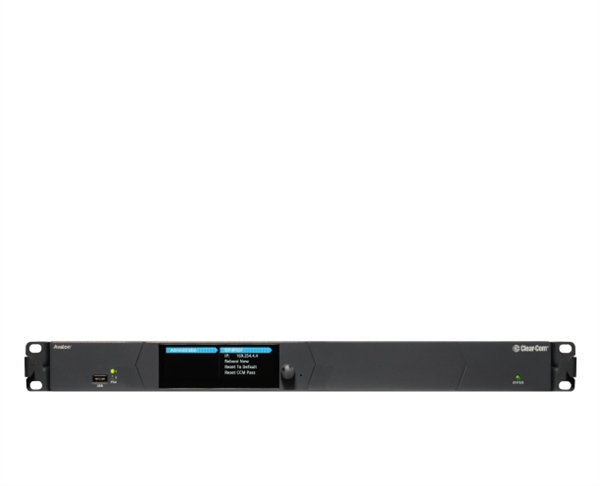

Avalon IP Station*

1RU Scalable IP Station

Avalon IP Station

• Combined Wired and Wireless Intercom
• Keypanels with Essential feature set
• I.V. Direct Clear-Com Global Interfacing

            - LQ
            - Eclipse E-IPA
            - Arcadia, Avalon

• Local Dante Interfacing
• CCM^™ browser setup, configuration & monitoring
• Scalable Licensed Port capacity

Capacity

FreeSpeak Wireless Intercom

• (32) IP Transceivers (1.9, 5 GHz)
• (64) Beltpacks (1.9, 5 GHz)

HelixNet Wired Intercom

• (≤24) Enabled Channels¹
• (24) Powerline Devices
• (128) User Stations (Beltpack, Speaker & Remote)

• V-Series Keypanel Essential Features

• (32) AES67 Connected^1,2
• (≤32) I.V. Connected^1,2

• I.V. Direct Clear-Com Interface

• (≤32) I.V. Direct Ports¹

Dante Audio Network Interfaces

• (64) Dante Ports¹

Configuration

• • (200) Licensed Ports¹
  - FreeSpeak Beltpack
  – HelixNet Enabled Channel
  – V-Series Keypanel
  – I.V. Direct Port
  – Dante Port
• (100) Channels
• (100) Groups
• (100) IFB
• (300) Roles for FreeSpeak, HelixNet & V-Series

Connectivity

• (4) LAN - (2) RJ45, (2) SFP; Assignable to management (with HelixNet & I.V. Connectivity), AES67/AoIP, Dante Primary & Secondary

Footnotes:

¹Requires Avalon with sufficient number of Licensed Ports and an appropriate Device Allocation configuration.
²V-Series Iris and IrisX keypanels fully support all Avalon features while original V-Series has limited support using I.V. ports. Non-Iris desktop panels can be configured using the 12 key 1RU Role layout. Non-Iris cannot be upgraded from Avalon, requiring alternative methods. Expansion panels are not supported on Avalon.
