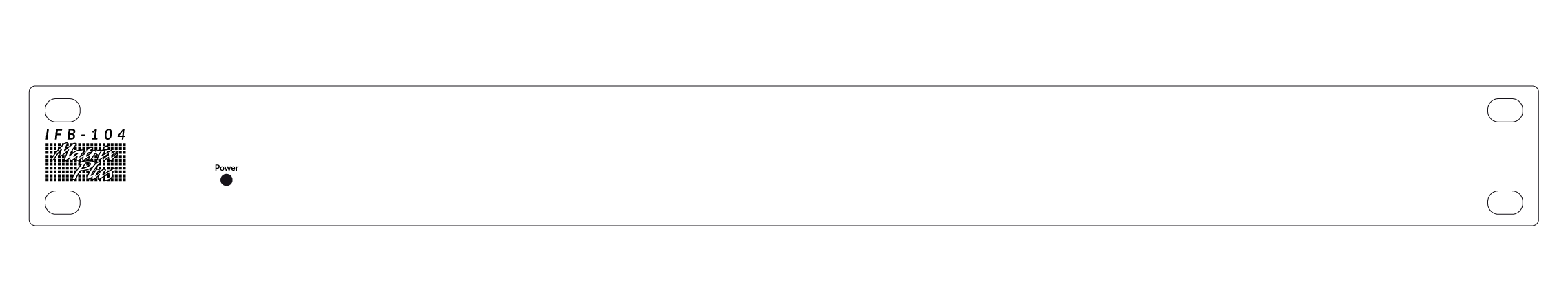

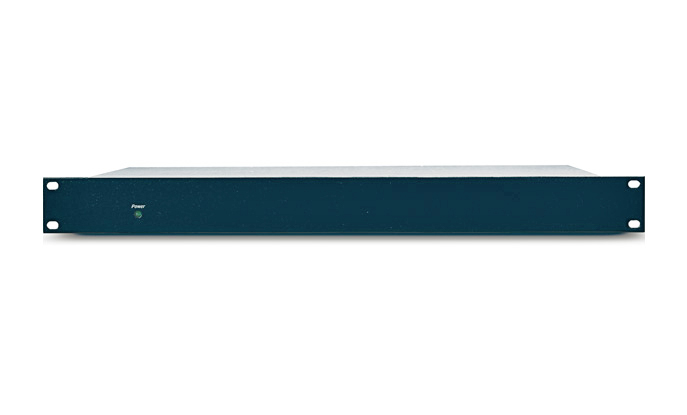

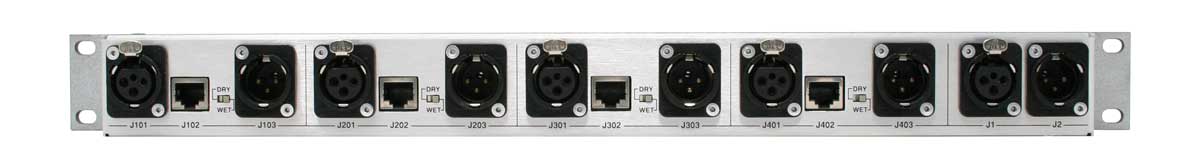

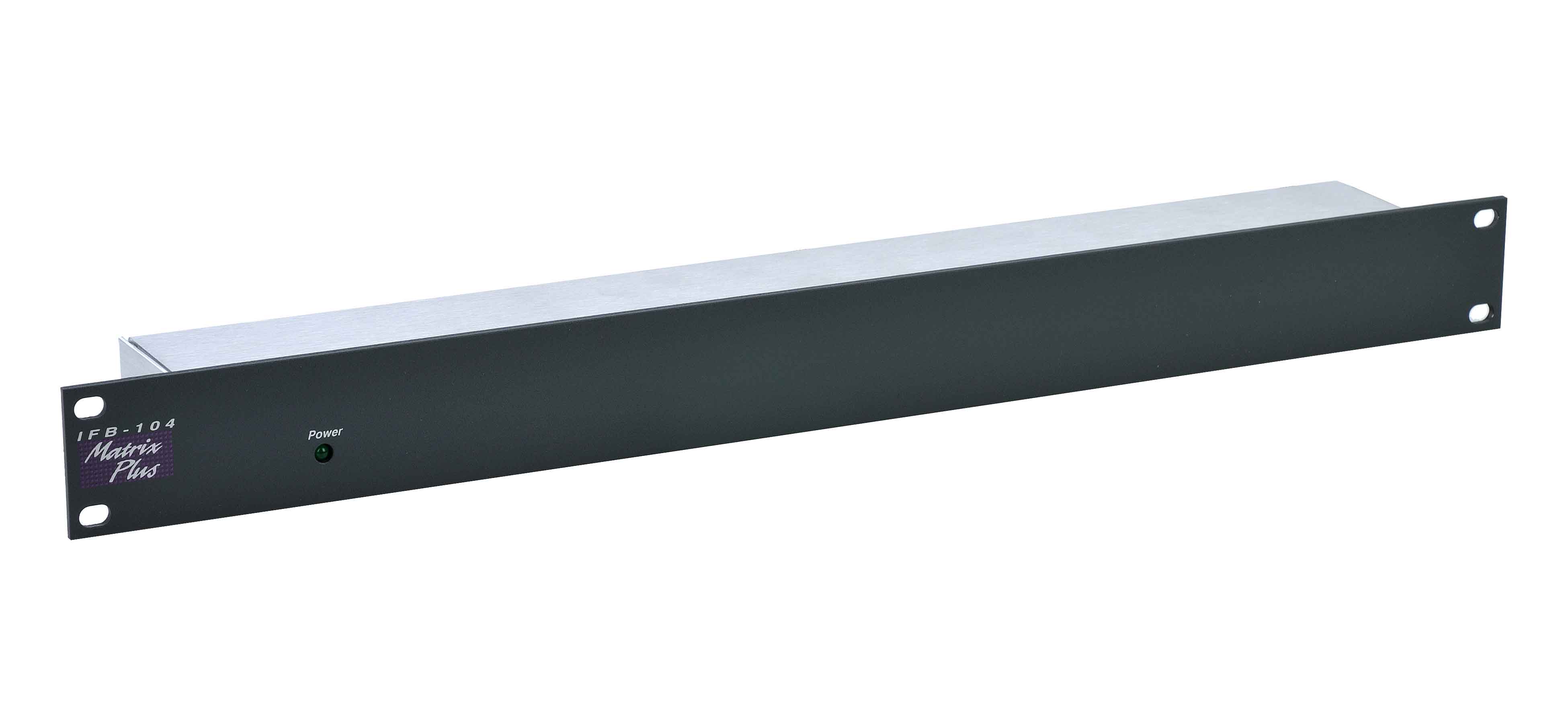

IFB-104

The IMF-3 is a 3RU interface frame that holds up to 11 modules. Modular rear-mounted connector panels feature two RJ45 connectors to the matrix ports and two DB9's attaching the connected devices. The frame is used in conjunction with the PSU-101 rack-mountable power supply, providing power to the enclosed interfaces. A second PSU-101 may be attached for redundancy. Note: Interface modules not included.

The IMF-102 interface frame combines an internal power supply, connection for a decond redundant supply, a rear input/output connector panel, and slots for two modular interfaces - all in a 1RU chassis. The compact frame offers a practical way to add a small quantity of interfaces to a digital matrix system. Note: Interface modules not included.

The Windows-based EHX configuration software configures and controls the operation of one or more Eclipse HX matrices. EHX can both download and upload system configurations to a target Eclipse HX matrix for either offline editing or live changes. EHX v13.1 EHX 13.1 will include NMOS IS-04 and IS-05. IS-04 provides the Discovery and Registration of devices on a network, while IS-05 handles the device connection and management. This release also includes the addition of Roles Session Workflow. Roles Workflow allows audio engineers to configure a specific keyset to an individual who may utilize multiple intercom devices. Regardless of the device the individual logs in on, team members can reach the user using the specified key.
