Video has become more and more a part of many live productions. To efficiently transport video and audio, signals can be multiplexed together, sent over fiber, and de-multiplexed at an end-point. Communicating quickly to camera spots via muxed signals can be vital to a successful production.
How It Works

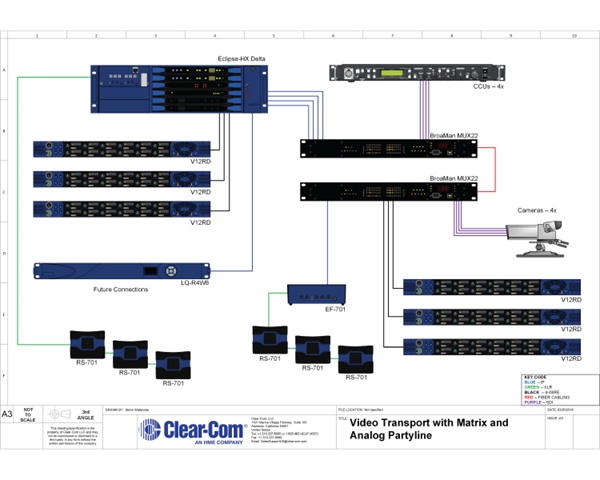

The control room houses an Eclipse matrix frame, several V-Series intercom panels, and a BroaMan MUX-22. Audio and video is multiplexed by the MUX-22 transferred out via fiber to a second MUX-22 where the signal is de-multiplexed. This is a very common and reliable way production companies use video/audio transport. Additionally, Encore analog beltpacks are deployed to various positions for channel communication from other intercom endpoints.
