PG32-AES (DISCONTINUED)

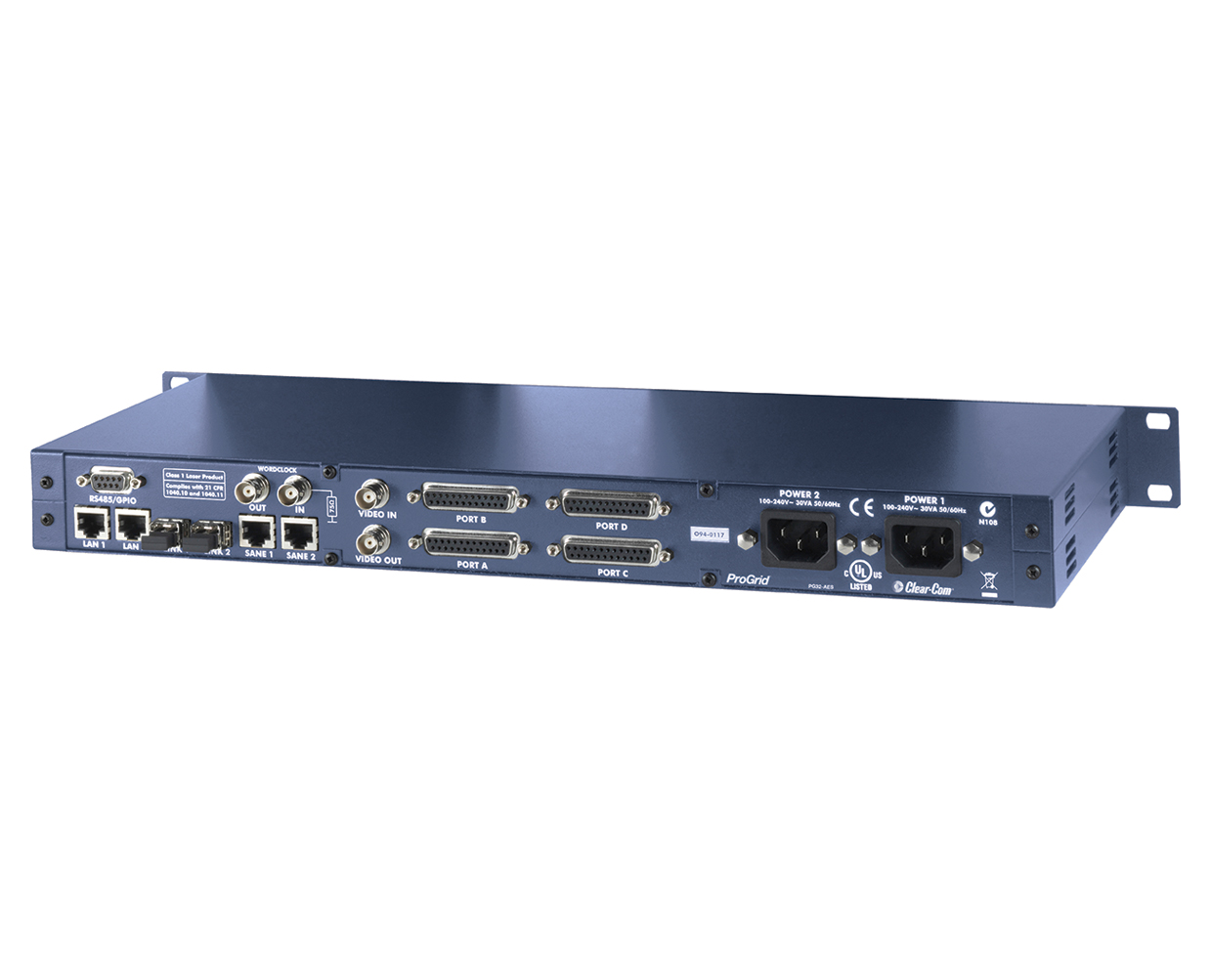

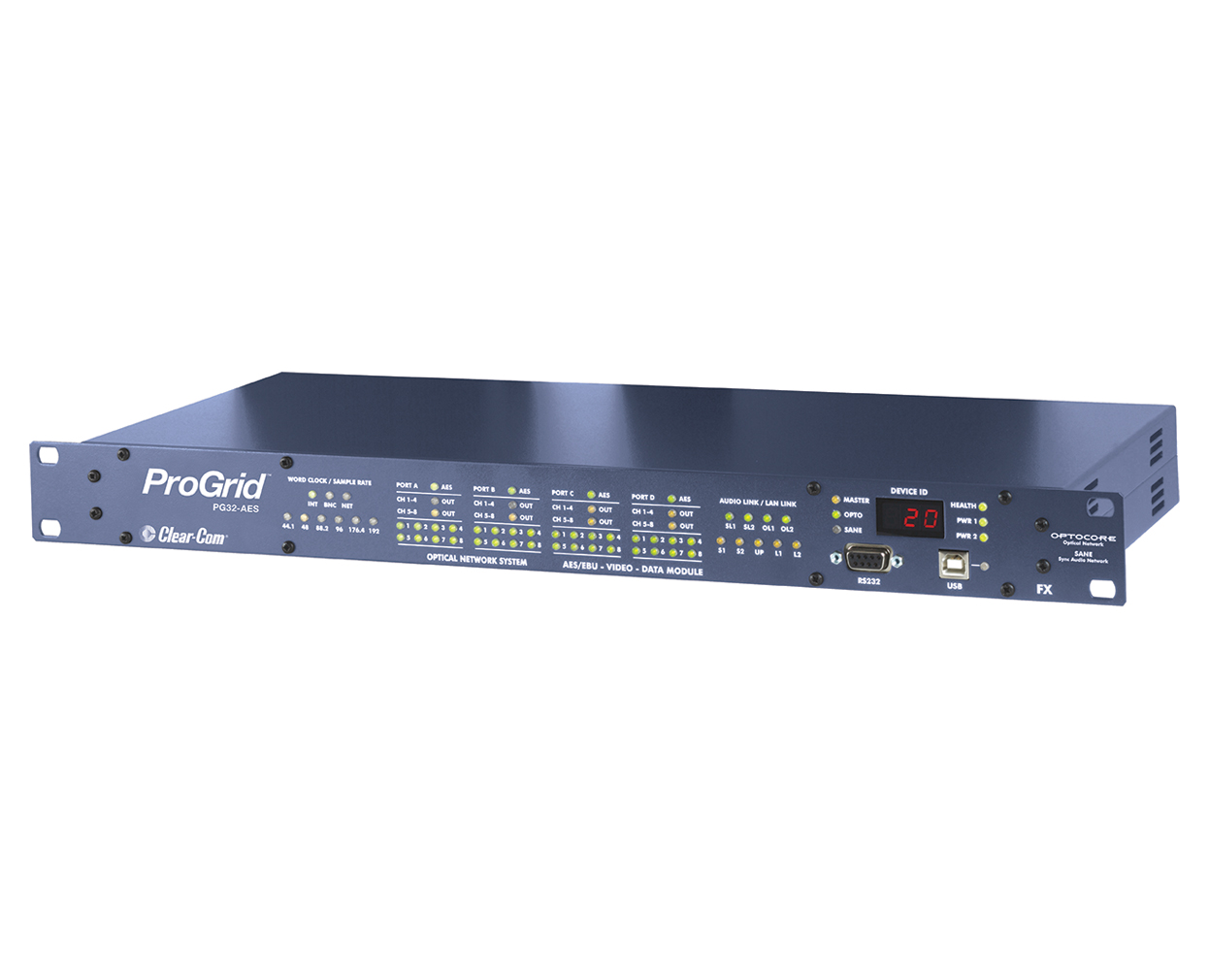

The PG32-AES device offers four principal ports for connection and transport of a total of 32 AES/EBU digital audio channels, ie 64 mono channels. The 4 x DSub25 ports with eight channels can be assigned as AES/EBU inputs or AES/EBU outputs in groups of four. The PG32-AES can be used as an interface to all microphone pre-amps with AES3 outputs. It serves as I/O to the converter devices to PG-Audio FX devices or via SANE to PG-Audio TP devices. Using ProGrid microphone preamps, the PG32-AES enables direct gain control of the preamps from most digital consoles, including Yamaha, DiGiCo, Soundcraft, Studer, Lawo or SSL digital consoles. Devices include dual power supplies with automatic switchover.

Details

  • Features the Optocore™ Optical and SANE™ CAT5 Digital Network technologies
  • Can use as AES/EBU inputs or outputs
  • 4 x RS485 serial data connections
  • Word Clock input and output
  • Composite video input and output
  • 2 x optical LINK interface with duplex LC connectors
  • USB and RS232 ports for configuration and control
  • Dual power supply for redundancy

Item Code

PG32-AES-FXS

PG32-AES-FXM

Technical
Specifications

AES Ports

Convention: EIA / TIA-422; DSub25 Connector

Number of AES/EBU Digital Data Channels: 32

Number of AES/EBU Audio Channels: 64

Impedance: Termination; 110Ohms

I/O Configuration: Software configurable in 8 channel blocks; 64 IN/0 Out to 0 IN/64 OUT


Auxiliary Ports

Convention: EIA / TIA-485; DB9 Connector

Number of Data Channels: 4

Data Channel Type: Digital control data

Impedance: Termination; 120Ohm


Word Clock

Hardware standard: 75Ohm / BNC

Data Rate: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (Depending on used sample rate)

Impedance Input: 75Ohm

Impedance Output: 75Ohm


Video

Hardware Standard: 75Ohm / BNC

Channels: 1 x input, 1 x output

Format: Composite video


Optical Link

Input, Output, Dual: Full bandwidth

Connection: Duplex LC

Protocol: Optocore; up to 1024 audio channels

Transmission: Full-duplex

Data Rate: 2 x 2Gbps or 2 x 1 Gbps

Optical Wave Guide Cable Lengths: Multi-mode fiber 50µm; =700 m @ 1G; <350m @ 2G Single-mode fiber 9µm; up to 70 km (on request)


SANE Link

Input, Output, Dual: Full bandwidth

Connection: RJ45

Protocol: SANE; 64 audio channels and 100Mbps LAN

Transmission: Full-duplex

Data Rate: 200Mbps

Cable Lengths: CAT5, CAT5E, CAT6, CAT7; <100m for error free transmission


LAN Link

Switch function across Optocore and SANE Network

Connection: RJ45

Protocol: 10/100Mbps LAN; Ethernet, Full-Duplex, Auto-MDIX

Power Supply

Number of Power Supplies: 2 (with function check and automatic switch-over)

Type: Switch-mode, universal input

Mains Voltage: 100 - 240V AC

Frequency: 50 - 60Hz

Power Consumption: 12W typical


Remote Control

Convention: EIA/TIA-232

RS232: RxD, TxD / 57.600 Baud

USB Port: Interface to PC


Dimensions

19.2 x 1.73 x 7.87in (WxHxD)

(483 x 44 x 200mm)


Weight
6.0lbs (2.7kg)

Product Model Options
Models
PG32-AES

Connectivity Options
AES pairs, switchable as I/O in blocks of 4 pairs

Network Options

FXS and FXM are available with these models. FX – The Optocore Fiber Network Module allows the converter to be used as a part of a 24 device ProGrid system.

• 4 Serial ports

• 2 LAN ports

• Sync

• 2 SANE/LAN ports

  • FXS – For use with Single mode fiber optic cables
  • FXM – For use with Multi-mode fiber optic cables
