Audio
Audio Bandwidth: 100Hz-7.5KHz
No. of Full-Duplex Audio Paths: Up to 9 keys
Mode of Operation: Full duplex on all routes

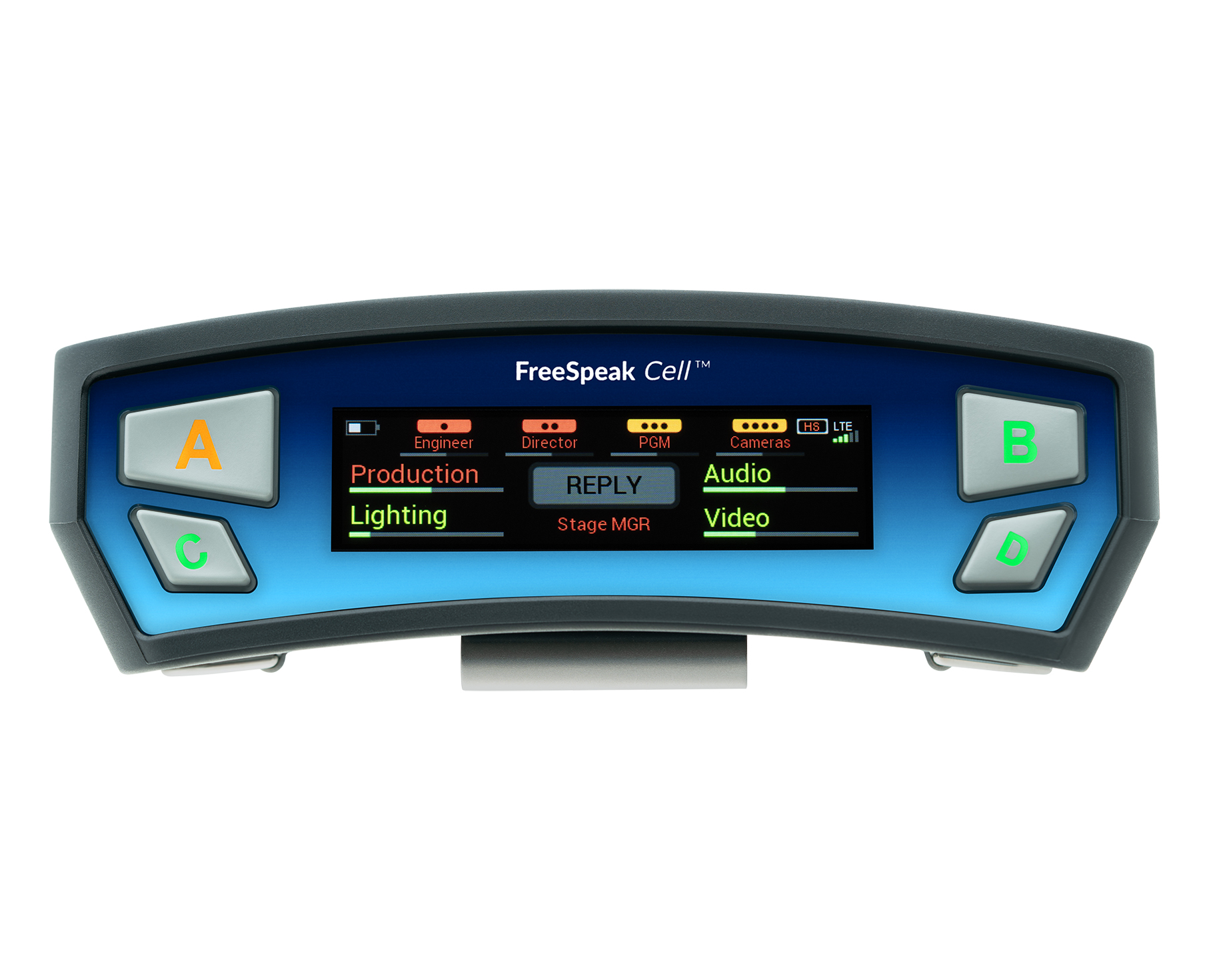

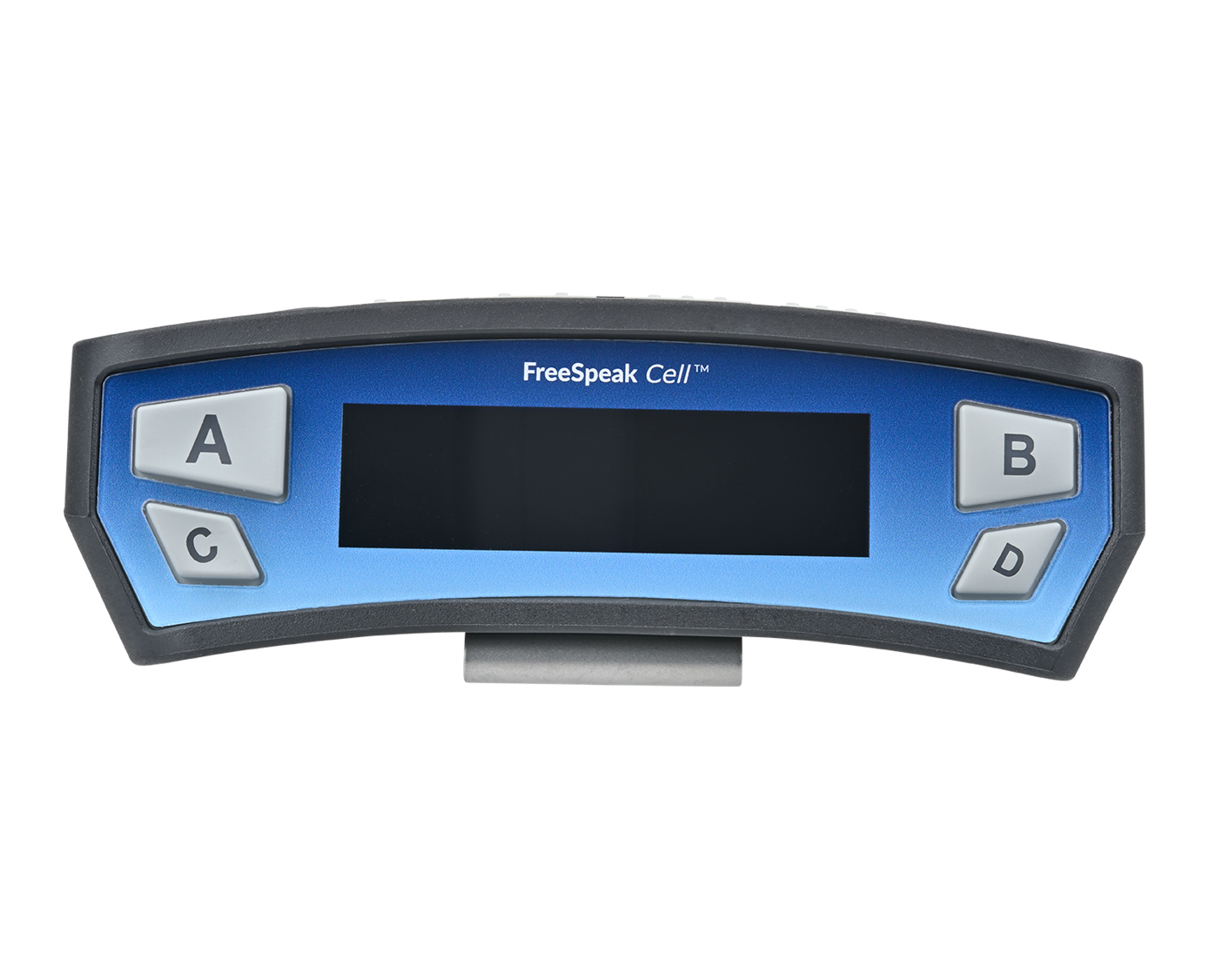

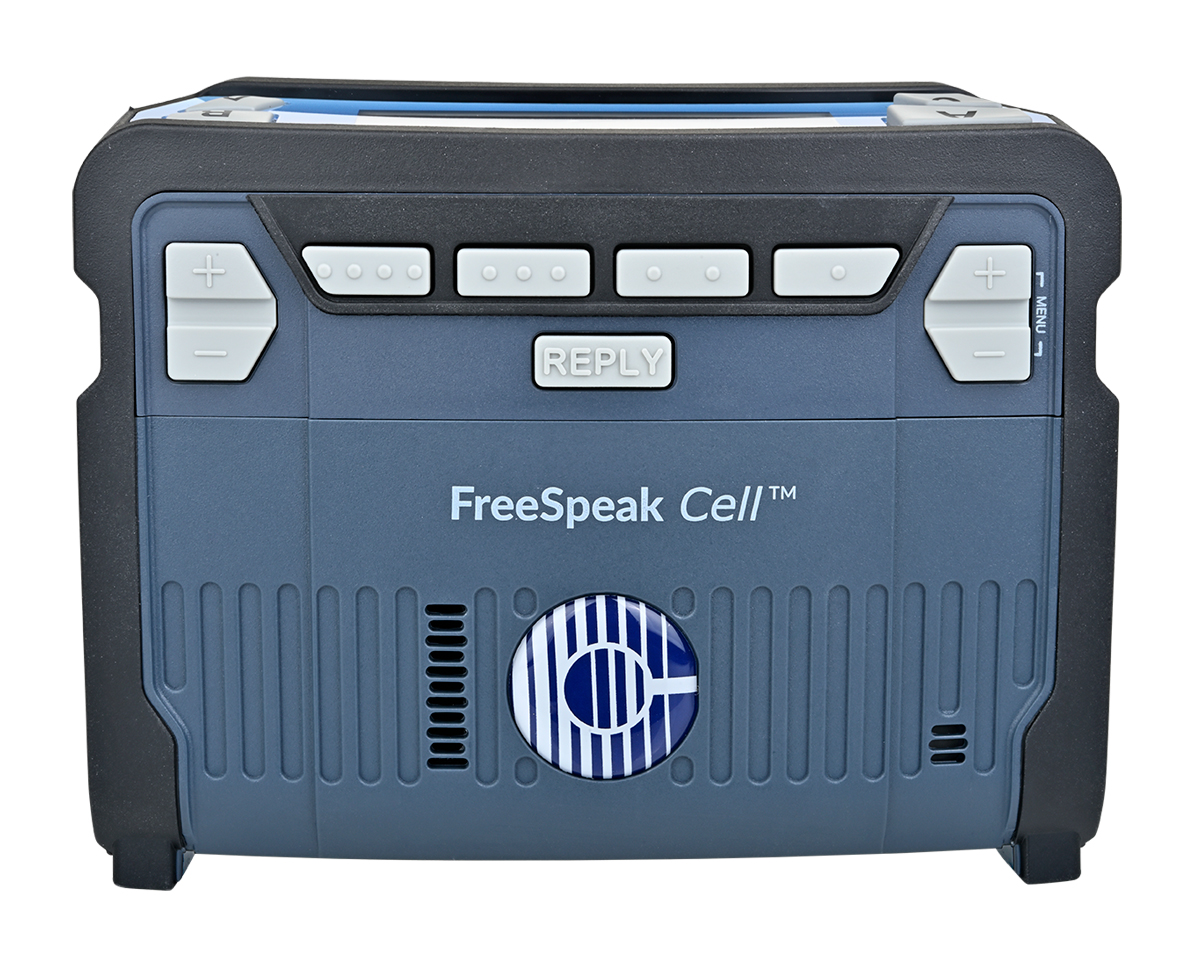

Level/Talk Controls: 9 buttons - A/B/C/D (top buttons) and 1/2/3/4 (front buttons), 1 reply button, 2 rotary encoders, 2 level up/down controls, and 1 (reprogrammable) main level control
Reply Button: 1
Bluetooth: 5.3 Headset Profile
Bluetooth Codec: MSBC using HFP (Hands Free Profile)
Radio: Red Cap 4G LTE/5G SA
Channel Bandwidth:
5G FR1: 5, 10, 15, 20 MHz
4G LTE: 1.4, 3, 5, 10, 15, 20 MHz
Supported Bands*:
5G SA: n1/2/3/5/7/25/28/48/66/71/77/78
4G LTE: B1/2/3/4/5/7/12/13/20/28/48/66

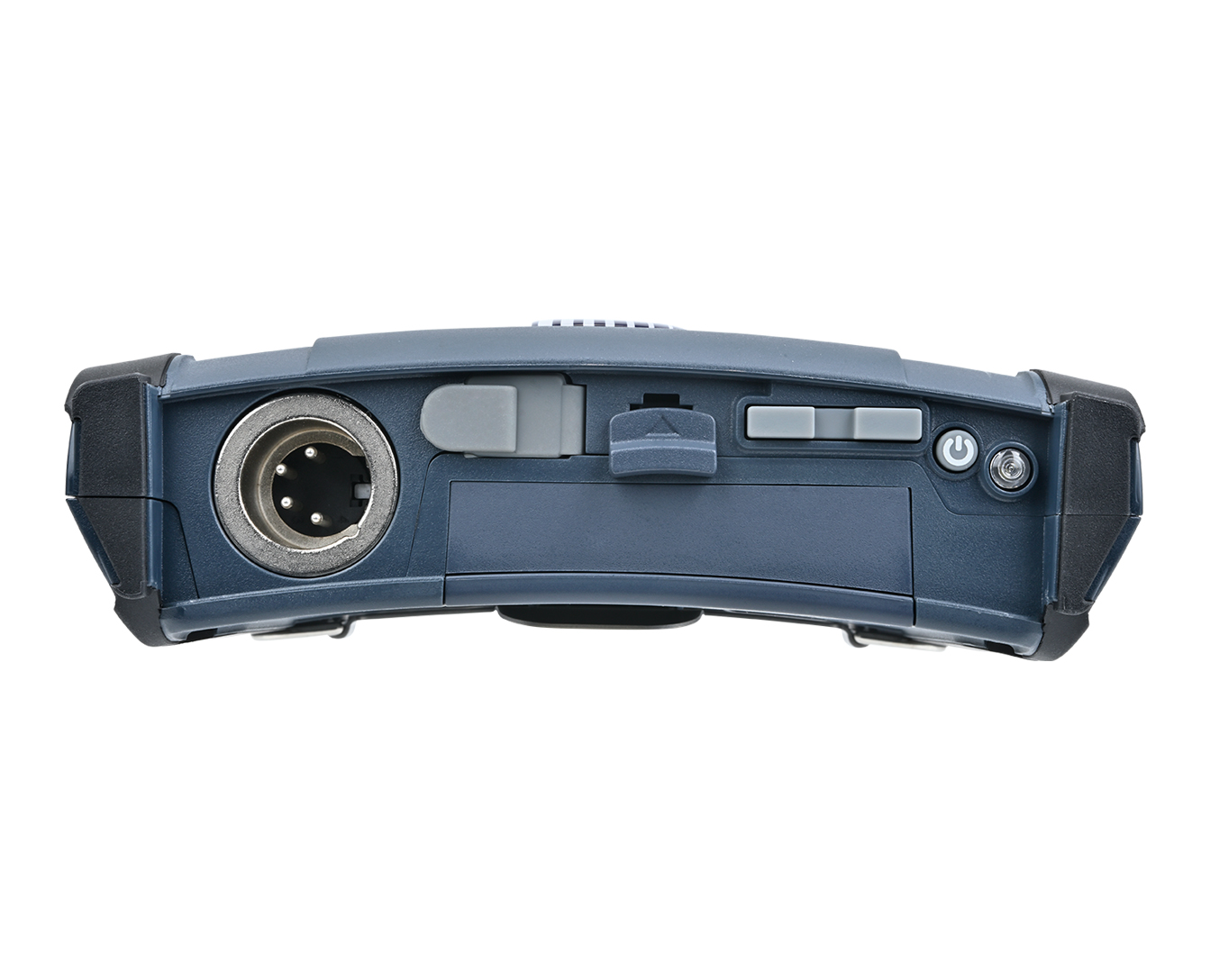

Connectors
Headset Connector: 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT
Headset Voltage: Maximum of ~+8dBu as set by firmware
Microphone Type: Electret and Dynamic, selectable in beltpack menu
Microphone Voltage:
Electret Mic: -40dBu
Mic bias for Electret mode is 4.4V
Dynamic Mic: -55dBu
Mic bias for Dynamic mode is 1.8V
Headset Limiter: Selectable from beltpack menu
Power
Battery: Li-Ion
Battery Charging: Drop-in charger (AC80) or local USB
Battery Life: 8+ hours
Environmental
IP54 water and dust resistance
Operating: 14°-125°F (-10°-50°C)
Storage: -22°-150°F (-30°-70°C)
Humidity: Between 20% and 90% Non-Condensing
Dimensions
Tapered design at largest points
5.31 x 4.27 x 1.92in (WxHxD)
(134.87 x 108.46 x 48.77mm)
Weight
Without Battery: 12.31oz (349g)
With Battery: 16.23oz (460g)
Regulatory
Regulatory Model: BP5GC1
*Note: Hardware is designed for global band support. Additional bands are frequently added via regulatory updates. Contact sales for the latest roadmap.
