Channel or Group?

Both Channels and Groups are essentially digital containers for digital audio sources, allowing communication between members.

Channel

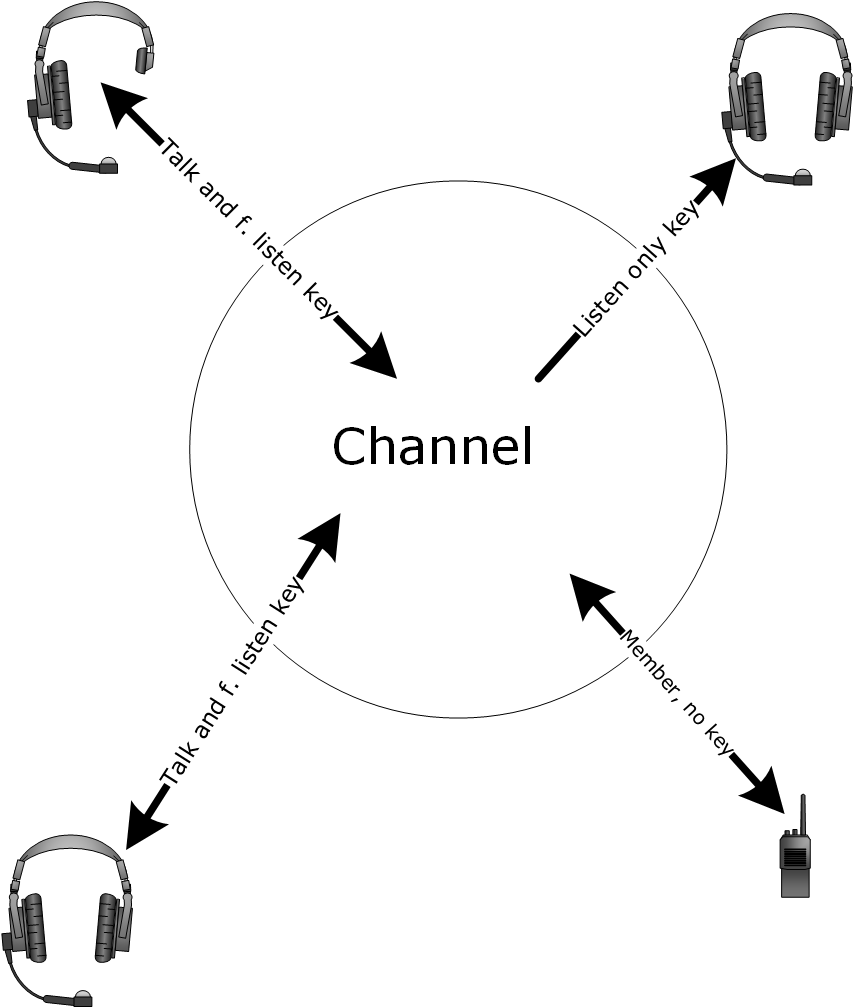

A Channel operates as an intercom Partyline or conference. All members can talk to and listen to all other members, as long as they have keys to do so.

Show me. Click image to enlarge/reduce:

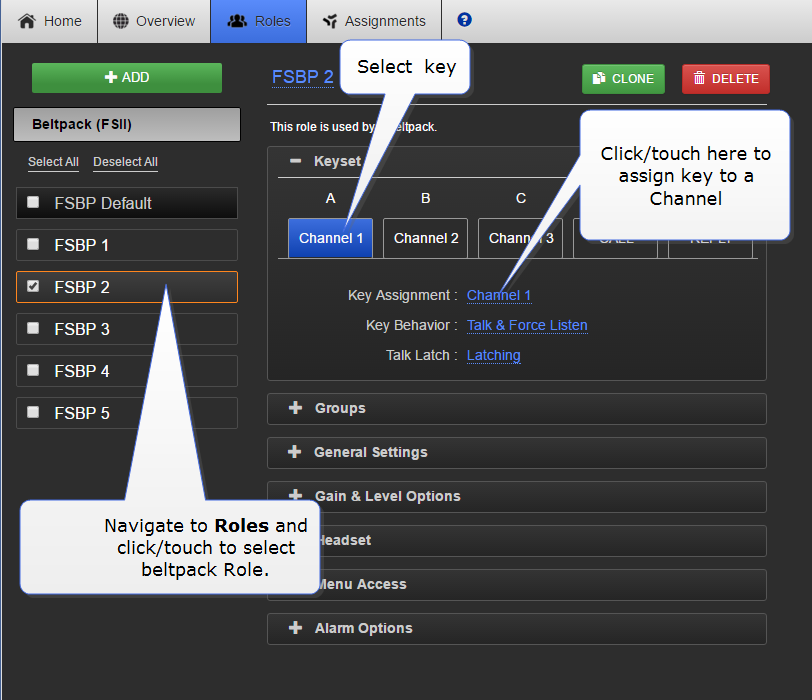

1. Show me how to put a beltpack in a Channel. Click/touch image to enlarge/minimize:

Note: The default key behavior setting for a member of a Channel is 'Talk and Forced Listen'. See Key behavior for more information.

You can see Channel members in the Assignments page of the CCM. Navigate to Assignments.

Group

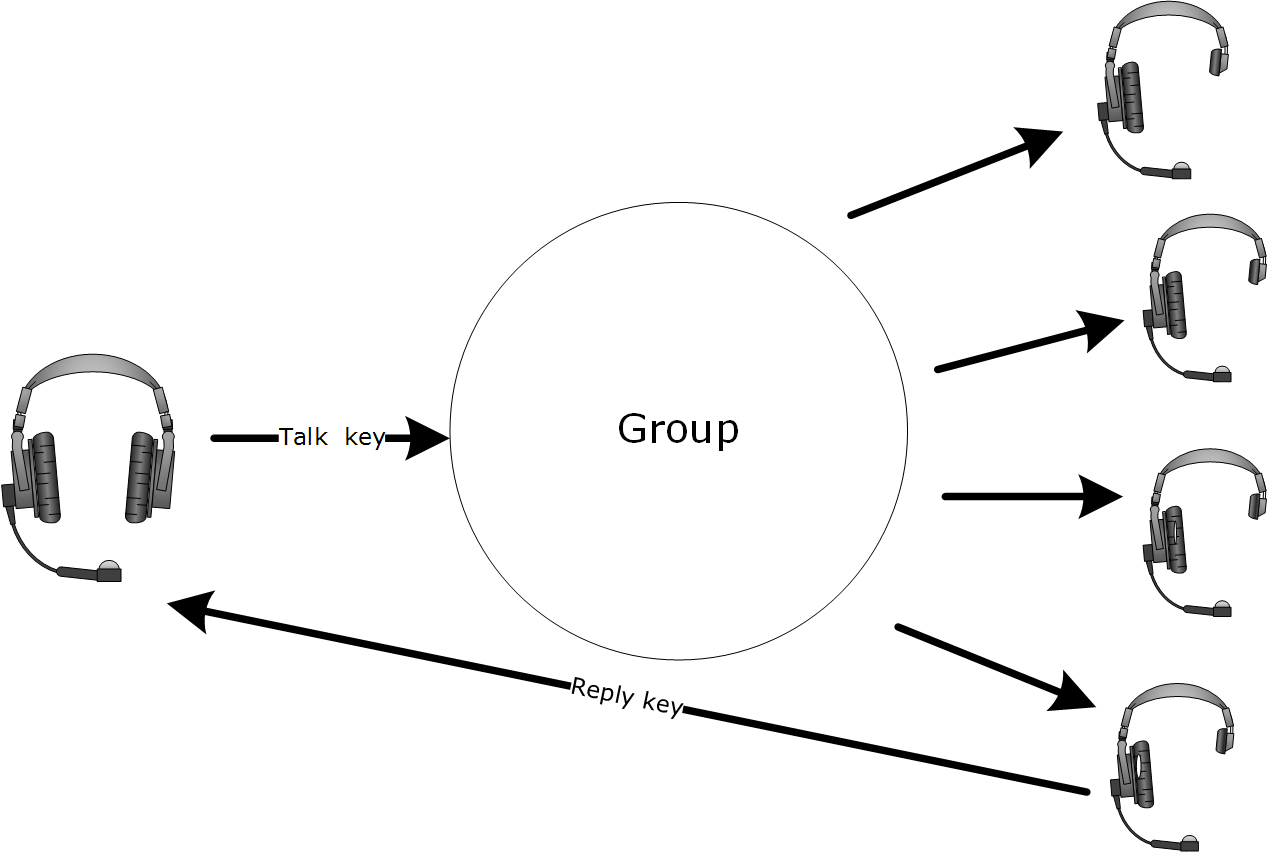

A Group configuration enables an announcement or broadcast to a number of members simultaneously.

Show me:

A group member can reply directly to the announcer using the Reply key. The other group members will not hear this.

Example Group set-up.

To set up a Group you must first put the members in the Group. Ports, Beltpacks and the Base headset can all become members of a Group. When the members of the Group are assigned, you must program a key to talk to the Group members.

1. How to make an audio source a Group member.

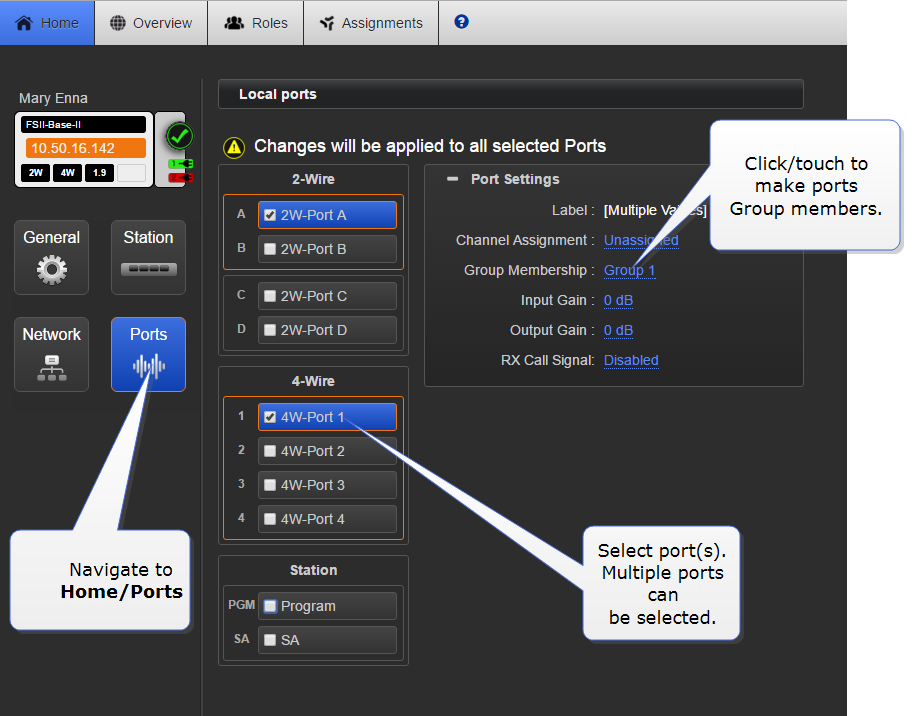

Show me how to assign a port to Group membership in the CCM. Click/touch image to enlarge/minimize:

Show me how to assign a port to Group membership from the Base Station menus:

2. Show me how to program a Talk key to the Group.

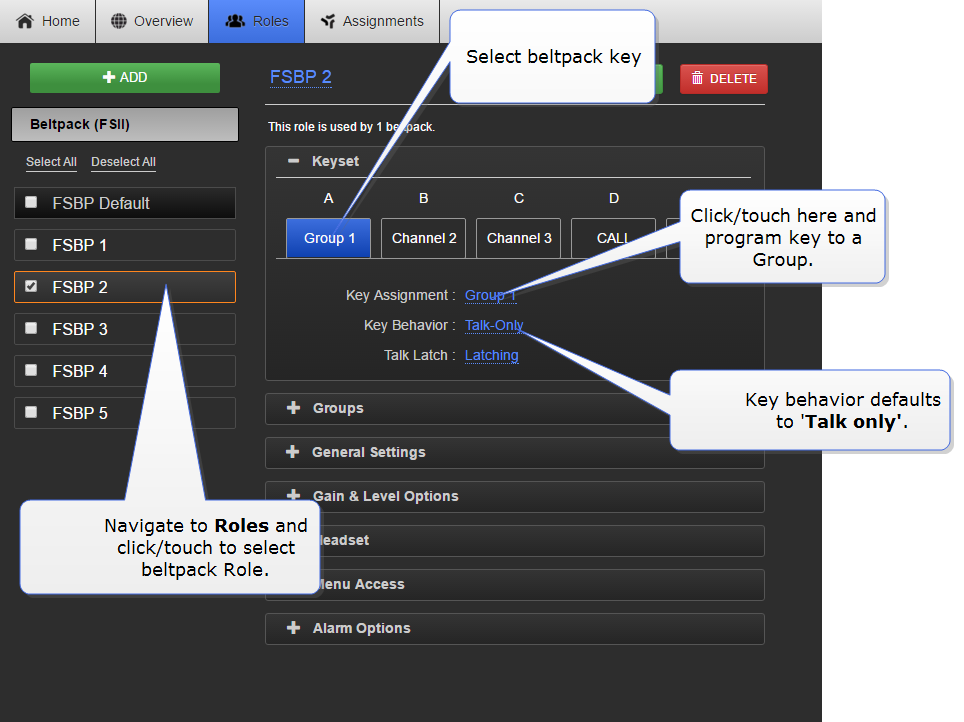

Show me how to assign a Talk key to the Group in the CCM. Click/touch image to enlarge/minimize:

Note: The default key behavior setting for a talk key to a Group is 'Talk Only'. See Key behavior for more information.

You can see Group members in the Assignments page of the CCM. Navigate to Assignments and click/touch the Groups tab. Beltpacks will only be visible in the Group when they are online.
