Using the FreeSpeak II Basesplitter (FSII-SPL)

The FreeSpeak II Base antenna splitter is a device that connects up to 5 antennas to a FreeSpeak Base (both FreeSpeak I and FreeSpeak II, 1.9 & 2.4 systems) or an Eclipse matrix. Using the splitter, audio can be routed from the Base to antennas either via Cat5/6 Ethernet cable (RJ45) or a Fiber connection.

Click/touch images below to enlarge/minimize

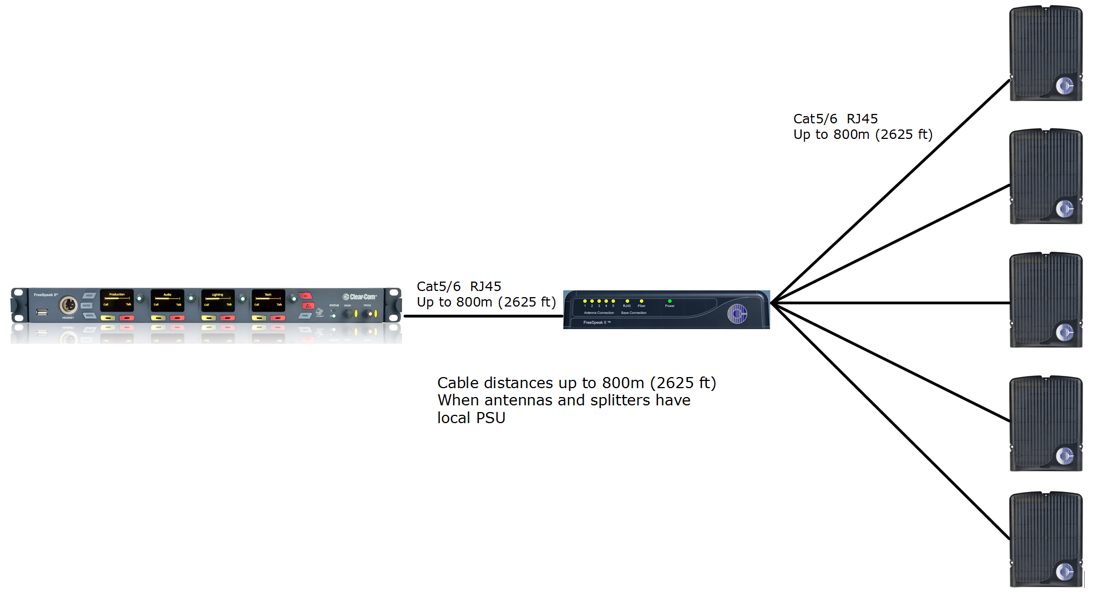

Show me example Clear-Com configurations using a splitter with Cat5/6 RJ45 connection.

1. splitter with RJ45 connection

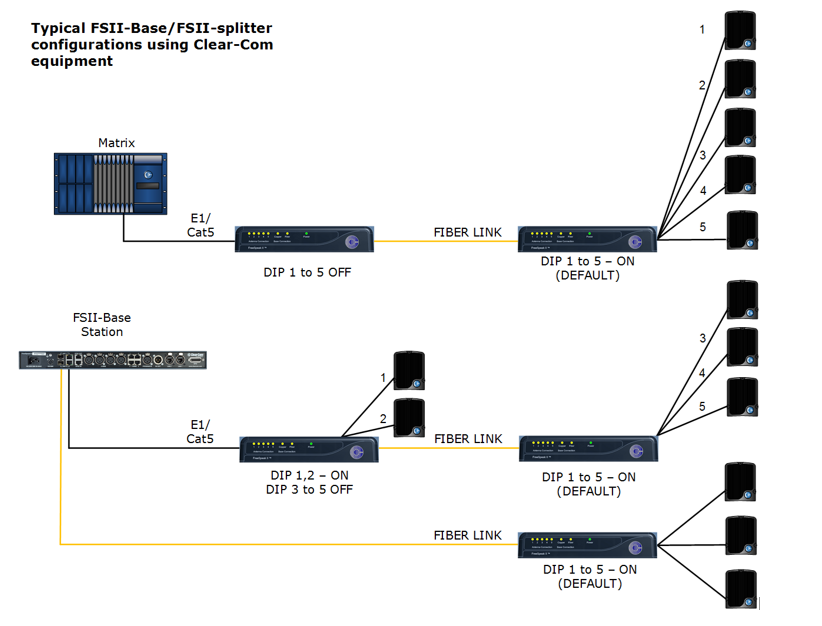

Show me example Clear-Com configurations using a splitter with Fiber connection.

1. Example splitter set-up

2.Example splitter set-up

The antenna connections are switched between RJ45 and Fiber routing using dip switches set inside the splitter.

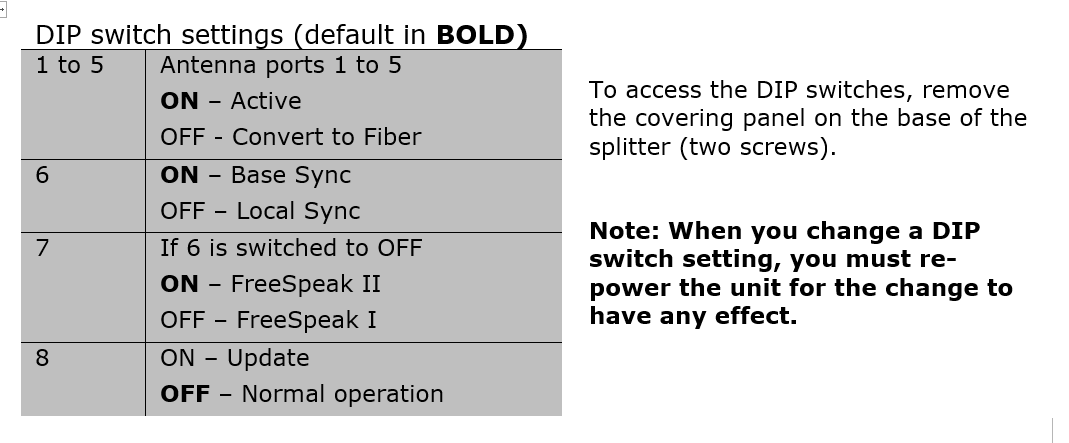

Show me FSII-SPL DIP switch settings: DIP swich settings

Note: When using Fiber, you must install Fiber modules. See link below.

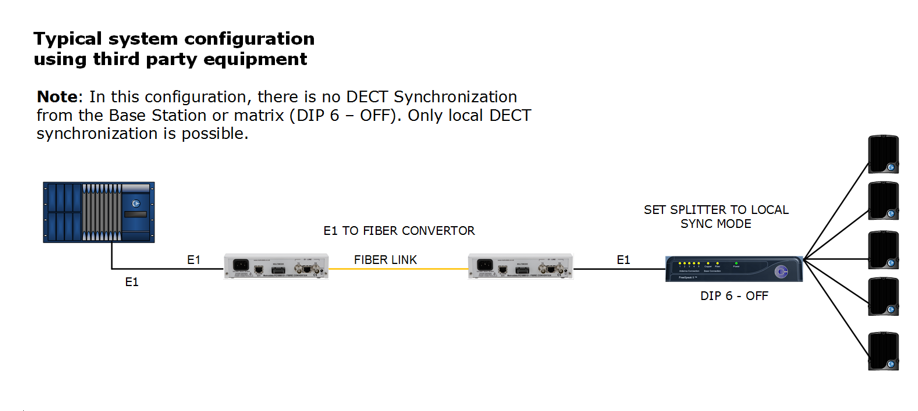

Note: When using the splitter with third party routing devices, antenna synchronisation data is not passed. In this case, you need to set the splitter to 'local synch' mode.
