Cable compensation

You must set cable compensation if the total cable length between antennas is greater than 500m/1640 feet.

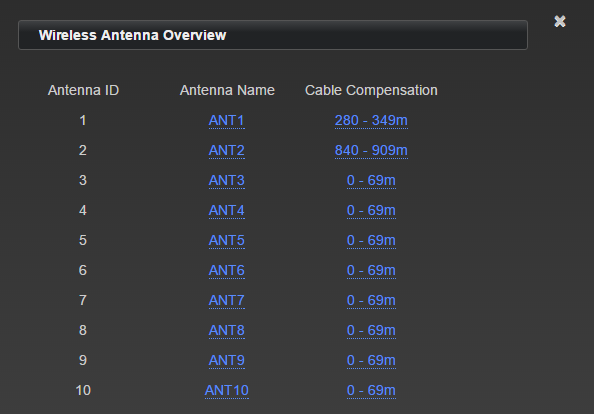

Example

Antenna 1: total cable length = 300m/984 feet.

Antenna 2: total cable length = 850m/2788 feet.

In this case, antenna cable length should be set.

Show me. Click image to enlarge/minimise:

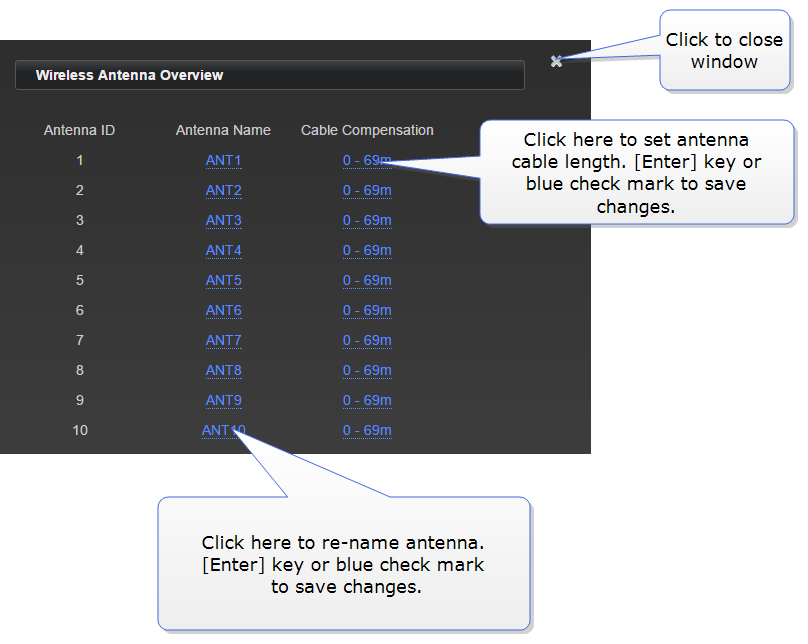

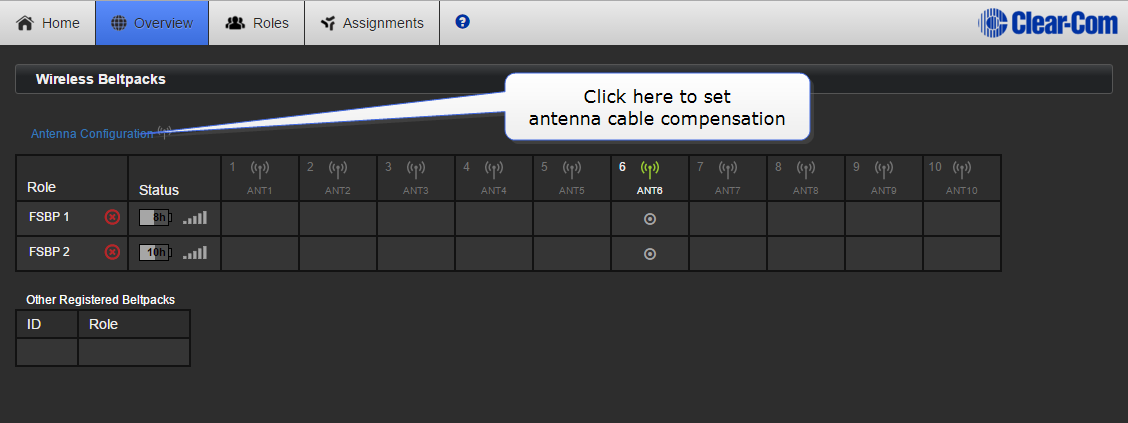

Show me how to set cable length in the CCM: 1. Cable compensation 2. Cable compensation 2.

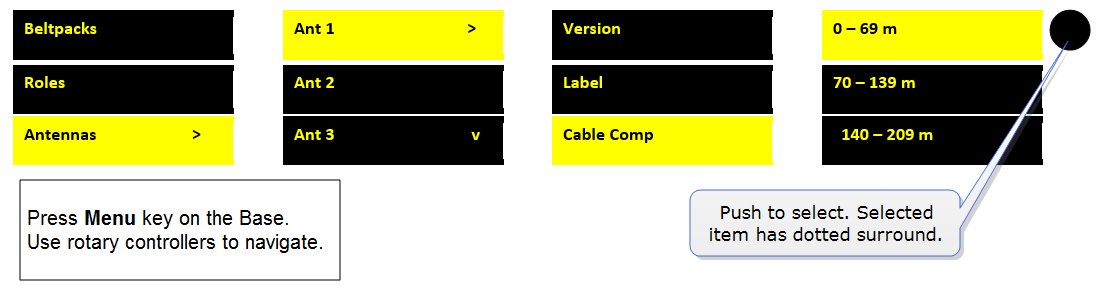

Show me how to set cable length from the Base menus:Set cable compensation on base
