Using an antenna with a Fiber connection
Install Fiber modules (parts # HLI-SMFO, HLI-MMFO
You may wish to connect a FreeSpeak II Base to a splitter (FSII-SPL) using Fiber. In this case, you need to install Fiber modules to the Base and the splitter.
- Modules are available for single mode Fiber cable (HLI-SMFO) and multi-mode Fiber cable (HLI-MMFO)
- Modules are supplied as a pair, one for the Base Station and one for the splitter.
- The Base Station switches between Fiber and RJ45 mode automatically, depending on which connector (Fiber or RJ45) is used
- Modules can be hot patched, no need to power off devices.

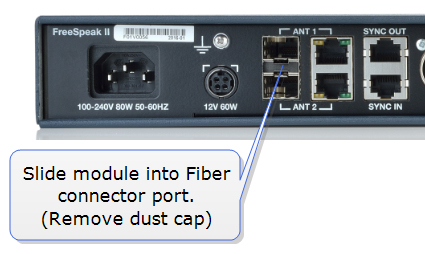

Install Base Station Fiber module. Click/touch to enlarge/minimize image.

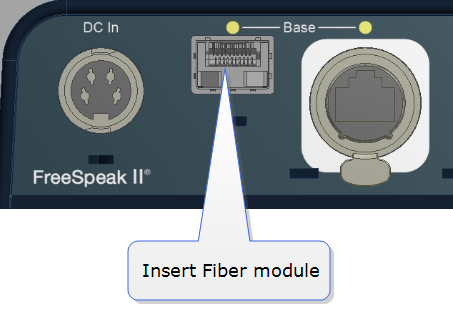

Install splitter Fiber module.
Once the modules are installed, the Base Station and the splitter can be cabled with the correct Fiber cable (single mode or multi-mode depending on existing cabling). You will see the Base Connection indicator on the front of the splitter change from RJ45 to Fiber.
