Core Configuration Manager (CCM) Walk-through

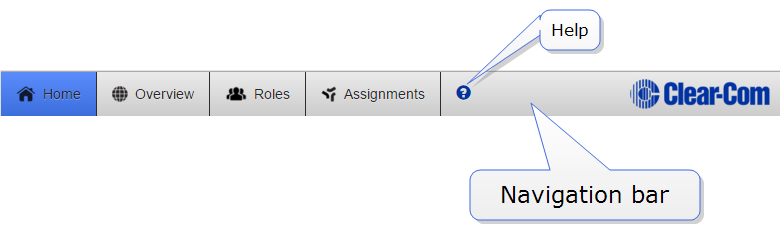

Click or touch the navigation bar to reach pages.
For context sensitive help, click/touch the help button (?).
Overview Page
This screen is the diagnostics screen for your FreeSpeak II Base system. It gives a live overview of antennas and beltpacks in your system.
Click on any device in this page to access information and configuration options. Click on blue text fields to edit.
Show me
Note: all system changes are live.
Note:
- Antennas 1 - 5: antenna port 1 on Base Station
- Antennas 6 - 10: antenna port 2 on Base Station
Home page
The Home page is where you find configuration options specific to your Base Station. Go ahead and explore the pages!
Show me
Roles Page
The Roles page is where you assign audio to beltpacks and configure a beltpack's settings.
Roles are pre-configurations; default audio routes and settings that are applied to your device when it is first powered up (a Role is selected by the beltpack user). The default Role can be edited and/or reset to default. Individual Roles can be edited, deleted, cloned and created.
In FreeSpeak II Base a Role is attached to a specific beltpack in a one-to-one relationship. The default Role puts Channel 1 and 2 on beltpack keys A and B, with C and D set as call keys. The Reply key can be re-assigned to a Channel as required.
Show me beltpack default configuration

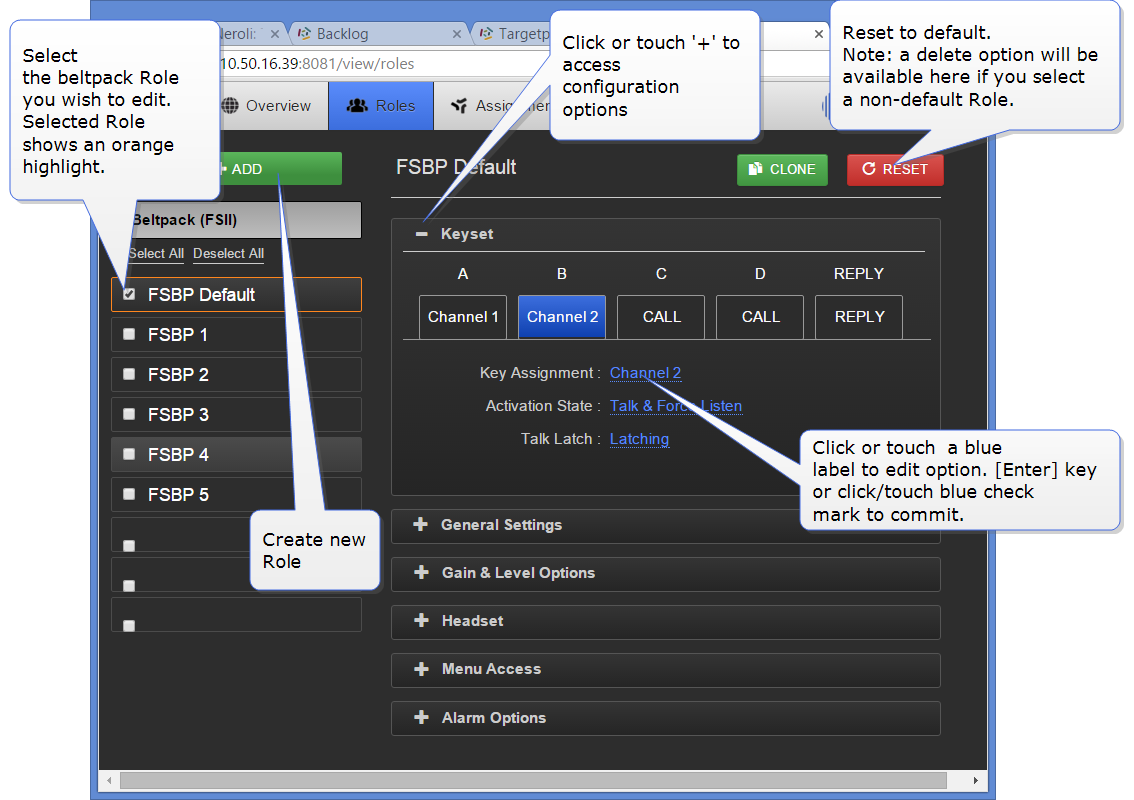

On the Roles page you can edit, create, clone and delete Roles. Go ahead and explore this screen.
Show me
All Roles can be edited as required.

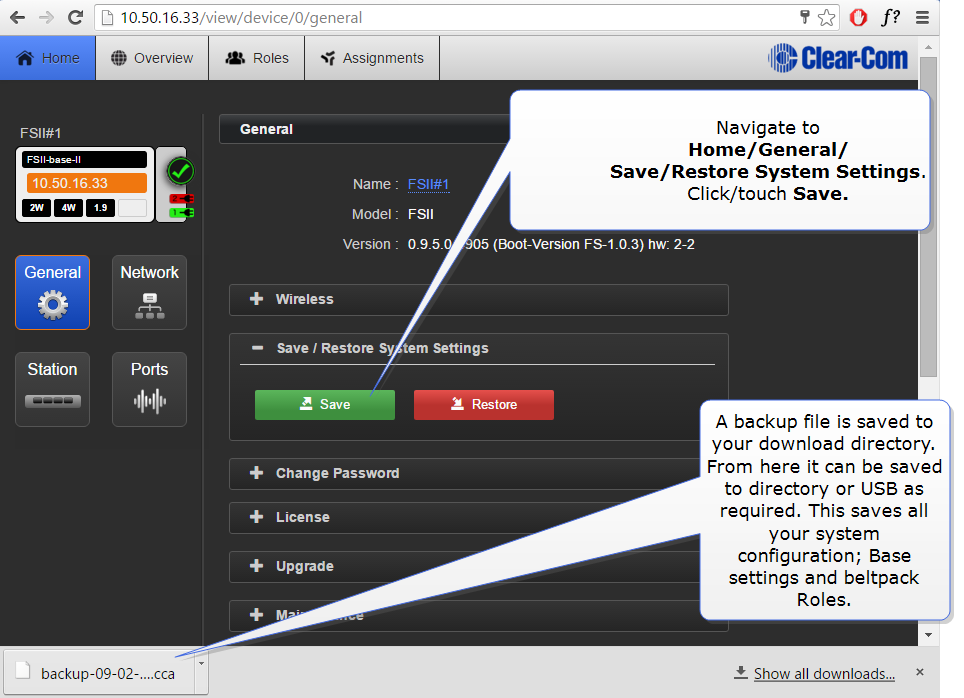

You can save your Roles to a USB stick or directory for convenience (advised).
Show me how to save Role settings

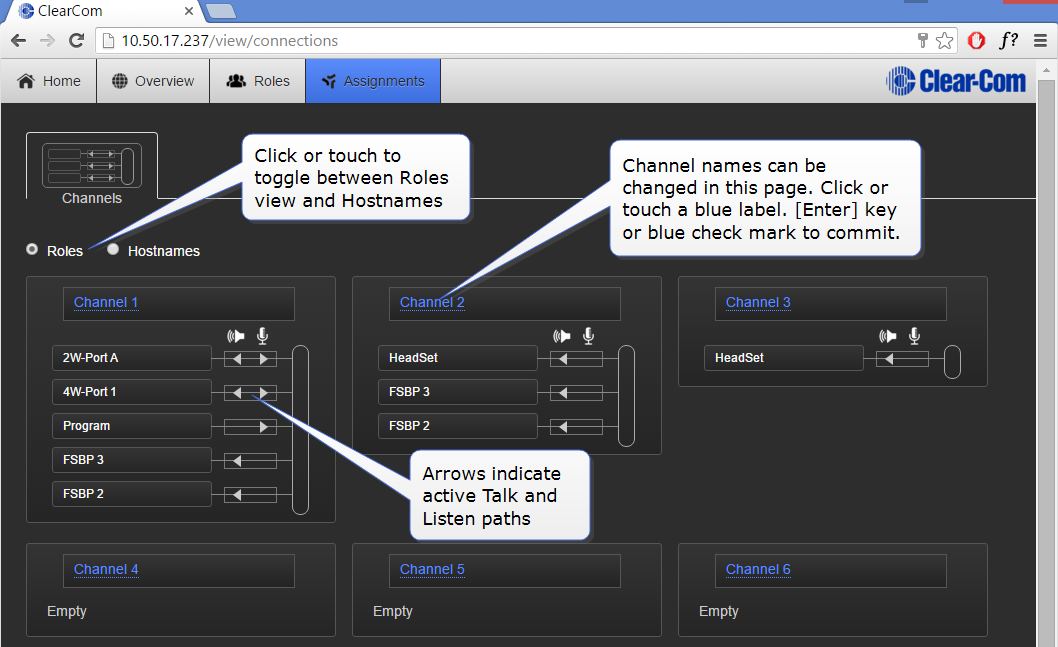

Assignments Page
On this page you see audio assignment in Channels. This screen is a live representation of anyone talking or listening in up to 24 Channels. You can toggle between 'Roles' view and 'Hostname' view. Hostname view can be used to show individual beltpack hardware.
Show me
