Using the antennas
The antennas provide a customizable network of coverage zones in which beltpacks can operate. Beltpacks can roam freely between zones.

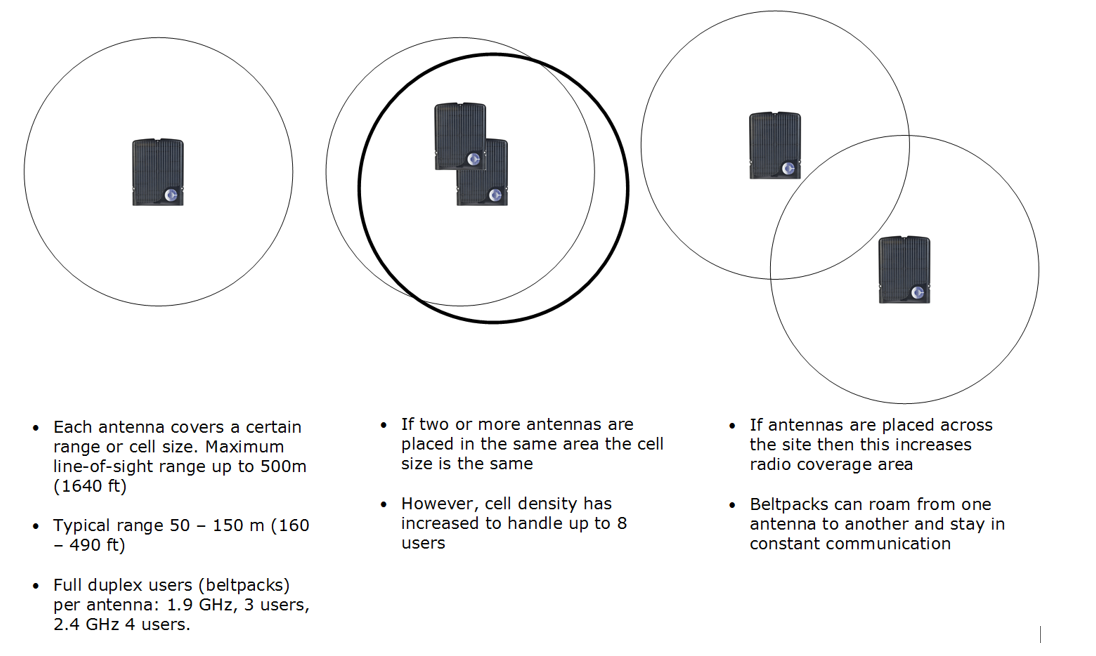

Show me example antenna coverage. Click/touch image to enlarge/minimize

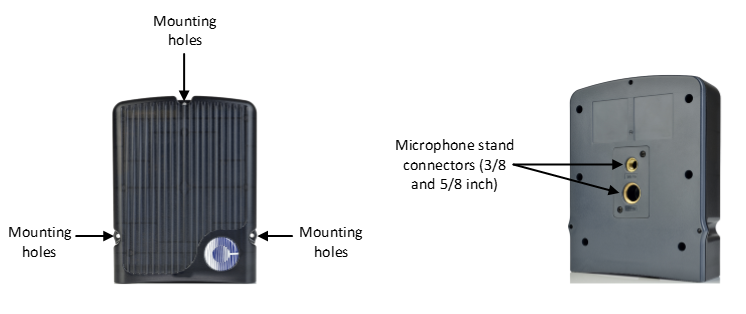

Antennas can be mounted flat on a wall or using a microphone stand. Show me antenna fixings. Click/touch image.
Antenna capacity (how many beltpacks?) (Click/touch heading)
Clear-com recommends a conservative approach to antenna capacity, to ensure coverage and allow for system losses.
1.9 GHz : 3 - 4 beltpacks per antenna
2.4 GHz: 2 - 3 beltpacks per antenna.
IP rating (international protection marking)
The antenna has an IP rating of 65 so it can be mounted outside and will be resistant to weather conditions.
