Volume Operation
About Volume Operation
Volume operation on beltpacks can be set according to user preference. Control volume operation via the beltpack's Role.
| Volume Operation mode | |
| Master Volume | Rotary controllers adjust volume on all 5 beltpack keys |
| Talk Keys | Left rotary controller adjusts volume on A & B, right rotary controller adjusts volume on C & D. |
How to control Volume Operation on beltpacks

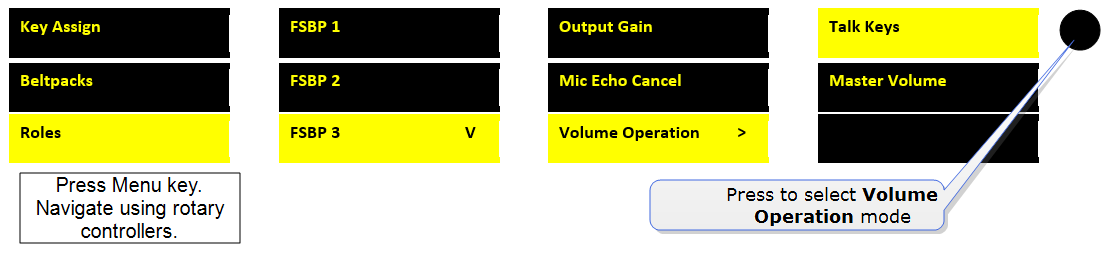

Show me how to set Volume Operation from the Base station. Click/touch image to enlarge/minimise.

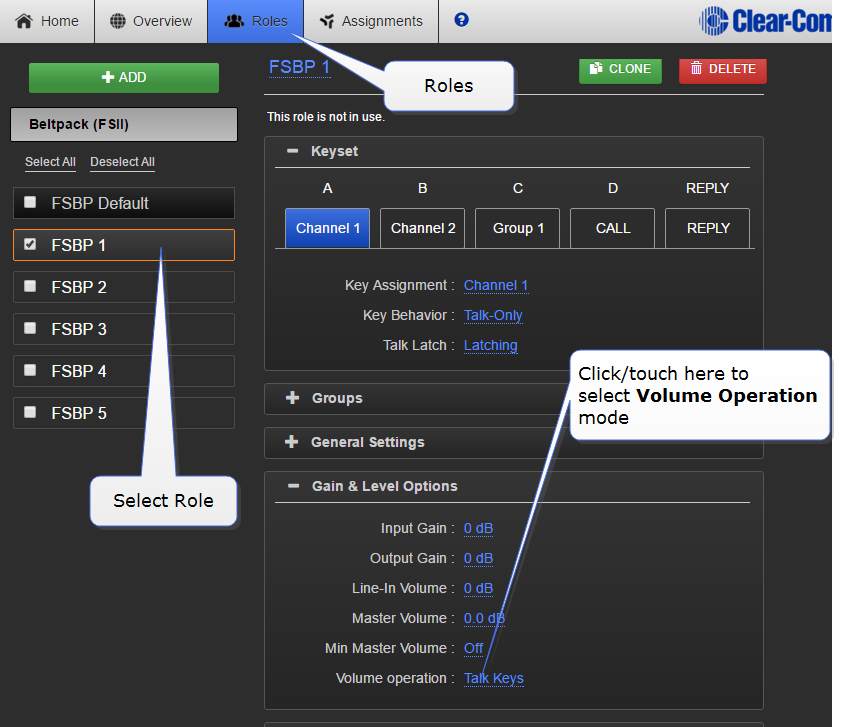

Show me how to set Volume Operation in the CCM. Click/touch image to enlarge/minimise.
Toggle between volume control on keys A & B, and D & C (adjust volume on all 4 keys if required)
In addition to the Volume Operation control feature, you can set the beltpack menu button to adjust how the volume controls work.
A quick tap on the menu button can perform two different functions.
| Menu Key Operation (quick tap) | |
| Menu Key Operation mode 1 (default) | trigger Listen Again |
| Menu Key Operation mode 2 | Toggle rotary control volume adjust between A & B, and C & D. A beep will sound when controllers are switched. Toggle to C & D has a 10 second inactive timeout. |
To use this function, navigate to Menu Key Operation in Roles.
Show me how to set Menu Key Operation from the Base station. Click/touch image to enlarge/minimise:
Show me how to set Menu Key Operation from the CCM. Click/touch image to enlarge/minimise:
