Menu Key Operation

The menu button on beltpacks has several functions.

• A two second press allows the user to enter menu mode.
• A quick tap on the button can be configured in two different ways by setting 'menu key operation' in Roles. This quick tap functionality is called 'Menu Key Operation'.

Menu Key Operation has two settings:

• Trigger Listen Again (replays the last call to the beltpack). This is the default setting.
• Switch volume control (A & B, C & D).

Toggle beltpack rotary volume controls between A & B and C & D

This feature allows the user to toggle rotary volume control between keys A & B, and C & D using a quick tap of the menu button. This is helpful if you have different audio sources assigned to each key.

This mode has a 5 second inactive time-out, after which time to rotary controllers will revert to controlling volume on keys A & B. To re-activate this mode in order to adjust C & D, use another quick tap of the menu key. To switch quickly between A & B and C & D, tap the menu key to toggle.

This feature can be set under Roles in the CCM, from the Base Station front menus and from the beltpack itself (advanced menu options).

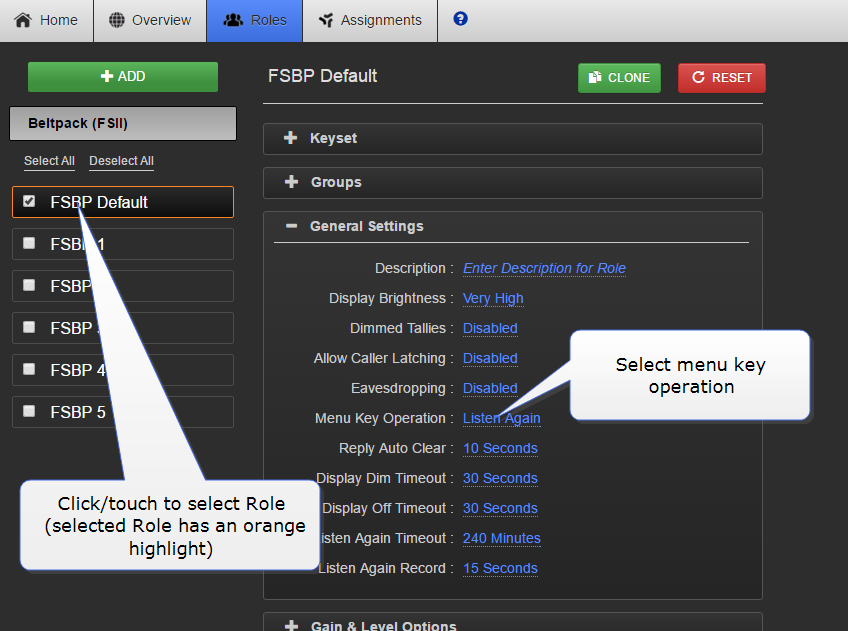

• Set menu key operation in the CCM. Click/touch image to enlarge/reduce:

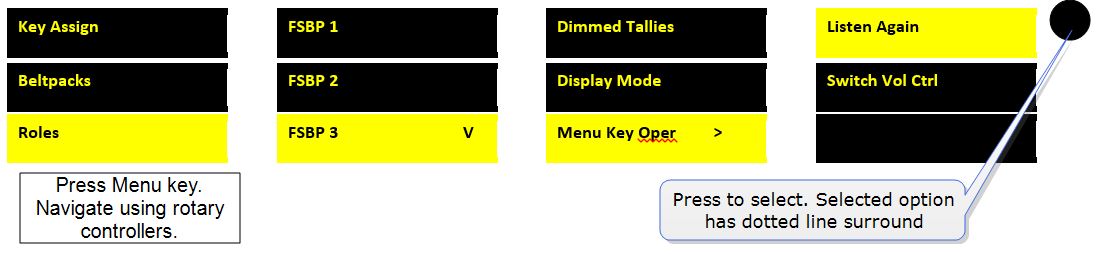

• Set menu key operation from the Base Station menus:
• Set menu key operation from the beltpack: Menu/Settings/Menu Key Oper.The beltpack must have advanced menu options enabled (Roles/Select Role/Menu access).
