Master volume low level limiter (beltpacks)

ClosedAbout beltpack low level limit

This feature sets a low level limit in order to prevent beltpacks from being turned down so low they cannot be heard.

How this feature is used depends on your preferred working practice: it is possible to turn the volume on the beltpack down so low that all audio is inaudible. This can cause confusion among the unwary, although some users may want to turn the volume down completely on occasion.

Values: , -6, -12, -21, -70 OFF. Default value = -70 OFF. If OFF, audio can be turned down so low it cannot be heard at all.

ClosedSet beltpack low level limit

The low level limiter feature is set in Roles, from the CCM, The Base Station menus or from the beltpack itself.

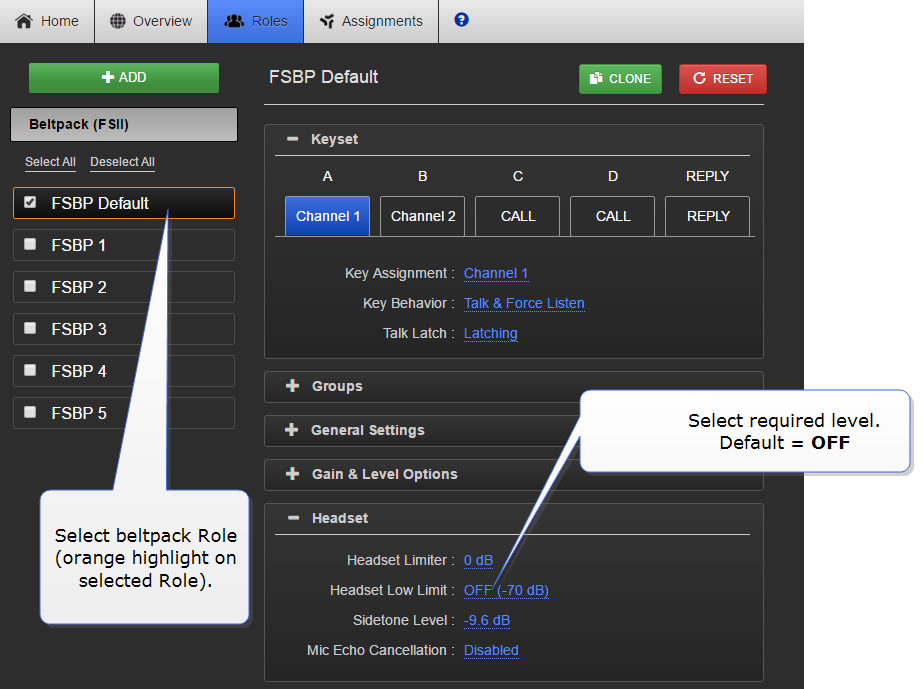

  • Show me how to set the low level limiter in the CCM. Click/touch image to enlarge/minimize:set low level limiter on beltpack

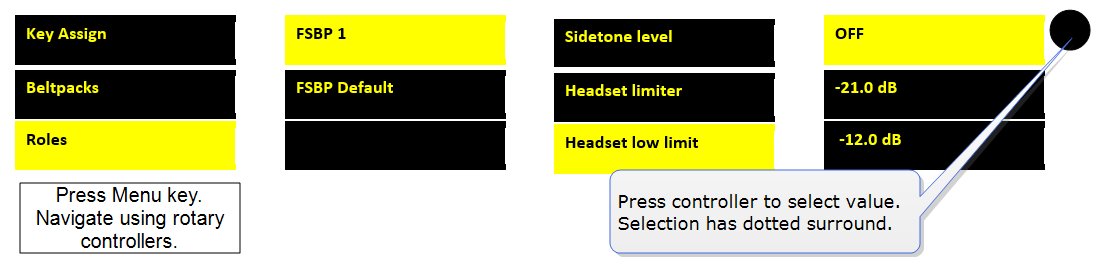

  • Show me how to set the low level limiter from the Base Station menus. Click/touch image to enlarge/minimize:set headset low level limit from Base

  • Set low level limiter on a beltpack: (Menu/Settings/Headset Options). The beltpack must have advanced menu options enabled (Roles/Select Role/Menu access).
