Registering beltpacks using USB cable

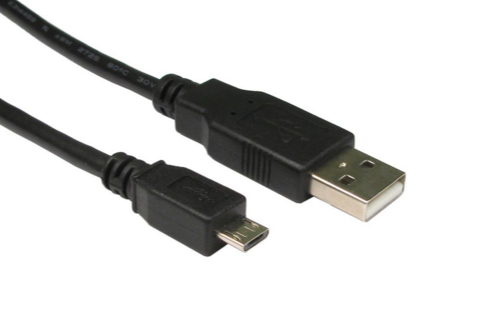

You must have a USB A to micro USB B cable and the beltpacks to hand before you start.

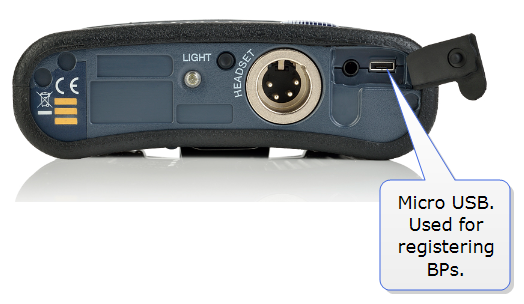

1. Connect a beltpack to the Base Station using a USB A to micro USB B cable.
The beltpack can be powered on either before or after connection.
Show me. Click/touch image to enlarge/minimise 1. 2.
The Base Station will show 'Beltpack is now registered' in the front menu screens.
2. Select an available Role from the beltpack screen.
Show me. Click/touch image to enlarge/minimise.
The beltpack is now registered and ready for use.
Note: A Role can be fixed to a beltpack. If you fix a Role to a beltpack, the beltpack automatically selects the Role on powering.
