i-1400E (DISCONTINUED)

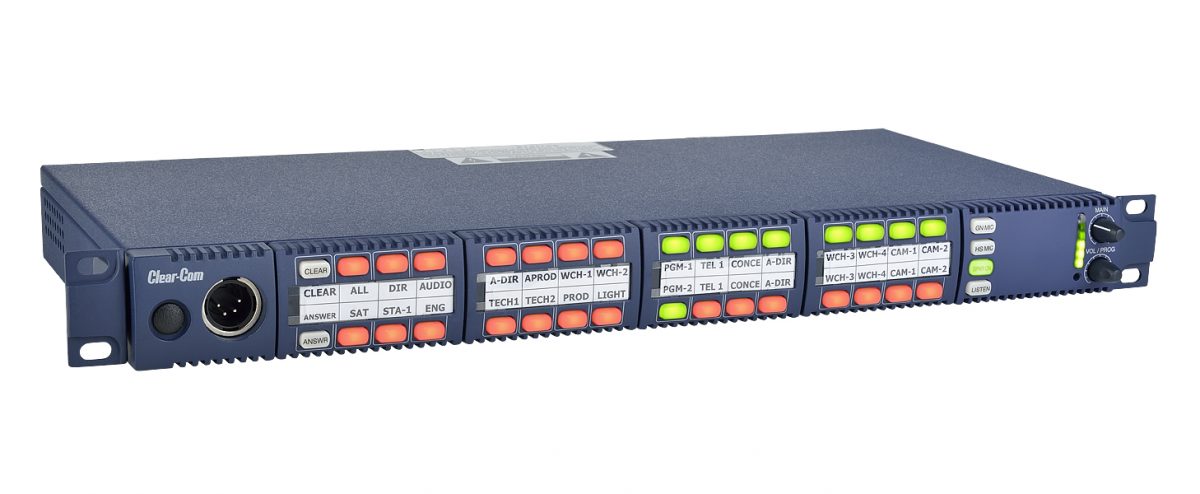

The i-Series panels are user control panels that are compatible with the Eclipse and Eclipse HX Digital Matrix Systems, offering high key density and rugged modular construction all in a compact 1RU package.

See V-Series, V-Series Iris, and V-Series Iris X panels as replacement panels for the i-Series.

Details

  • 32 pushbuttons and 4 non-displays for use with Eclipse HX matrix frames
  • Modular and configurable
  • Auto-sensing headset and microphone connectors
  • Individual cross-point volume level control via main volume encoder

Item Code

i-1400E

Technical
Specifications

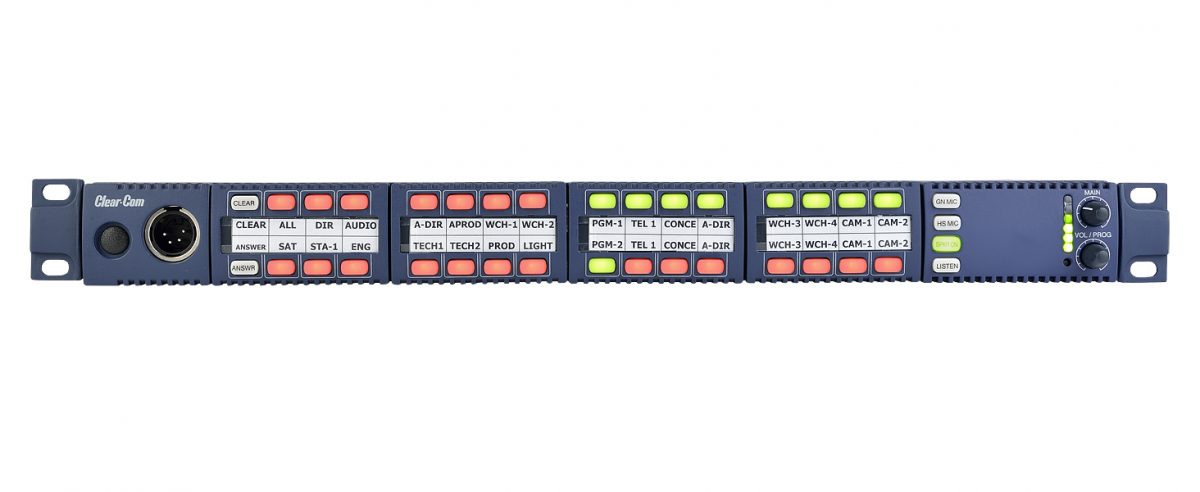

Front Panel Controls & Connectors

Talk/Listen Buttons: 32

Function Buttons: 4

Answer Back Button: 1

Clear Button: 1

Volume Controls: 2 (Main and vol/prog)

Headset Connector: 1 (XLR-4M)

Panel Mic Connector: 1 locking 1/4 in.phone jack

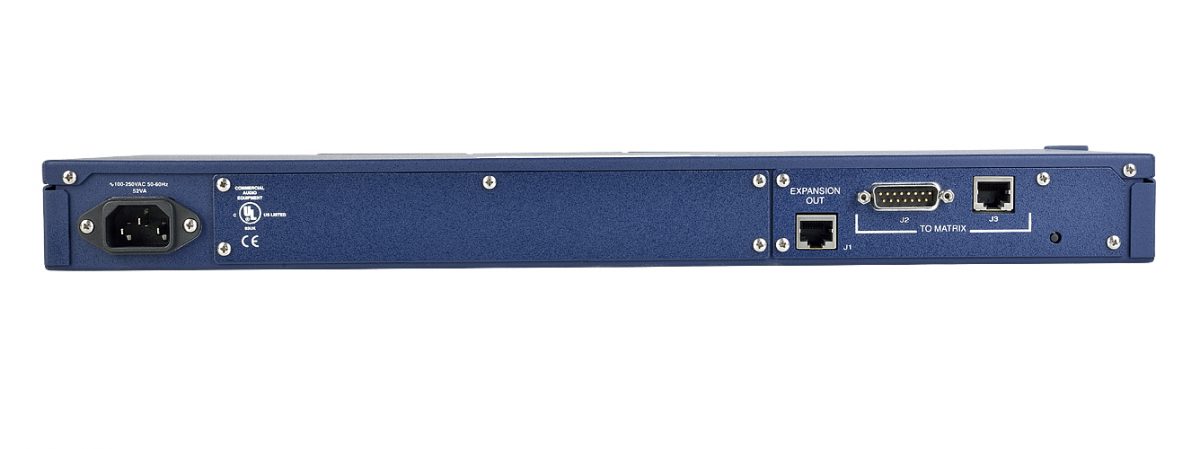

Rear Panel Connectors

To Matrix: RJ45 DB-15F

Expansion: RJ45

Power: 3-pin EIA connector


Headset Audio

Earphone Impedence: From 50 0hms

Output Power: 0.5W into 50 Ohms for <1% distortion


Loudspeaker Audio

Frequency Response: 40Hz-20KHz +/- 3dB

Panel Microphone Input Type: Electret

Level: -40 dBu

Impedence: 200 0hms +/-10%


Headset Microphone Inputs

Type: Dynamic

Level: -55-0dBu

Main Power Supply (Internal)

Voltage: 90/240 VAC +/- 10%

Frequency: 50-60Hz

Power: 50 W maximum


Environmental

Operating: 32°-125° F (0°-50° C)

Storage: 32°-150° F (0°-70° C)

Humidity: Between 20% and 90%, non-condensing


Dimensions

1.75 x 19 x 8.25in (HxWxD)

(45 x 482 x 210mm)


Weight
7.5 lbs (3.4 kg)
