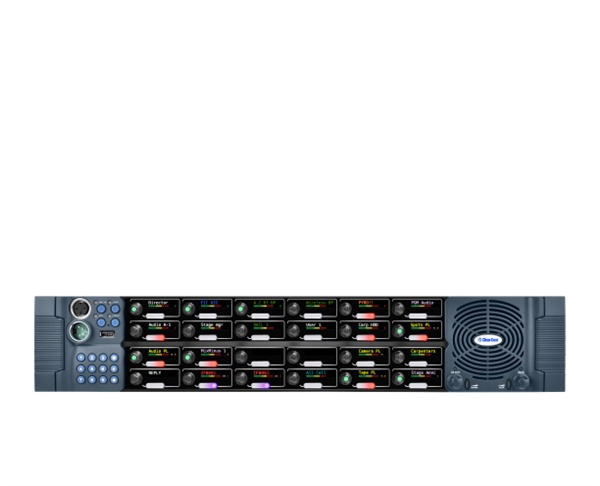

VI-PNLB-24R

9/1/2022

VI-PNLB-24R
Category: Products, Eclipse HX Digital Matrix System, V-Series IrisX Keypanels

facebook sharing button
twitter sharing button
linkedin sharing button
sharethis sharing button
  • TFT displays for quick and easy key differentiation
  • AES67 low latency audio IP connections to Eclipse HX matrix frames via E-IPA-HX card
  • Individual key menus help ease of use and assignment
  • Individual rotary audio level controls for personal mixes
  • Color-coded keys for easily identifiable color tallies
  • Fast key assign from pre-defined scroll lists or using numeric pad
  • Optional repositioning of Reply key
  • Optional additional Reply key for busy positions
  • Vertical font display option
  • International 10-character alpha-numeric fonts: Cyrillic, Hangul, Kanji, Katakana and Arabic
  • Digital Signal Processing (DSP) for audio routing, Dynamics, IFB routing and local loudpseaker dimming
  • Built-in Interfaces: Matrix (direct connect), Matrix (Ethernet/IP), GPIO, Aux Audio, 2nd Headset
  • Multi-channel Matrix Connections: Direct connect (1 main + 2 aux), IP (3 channels)
  • "Listen Again" function to replay calls up to 5 mins
