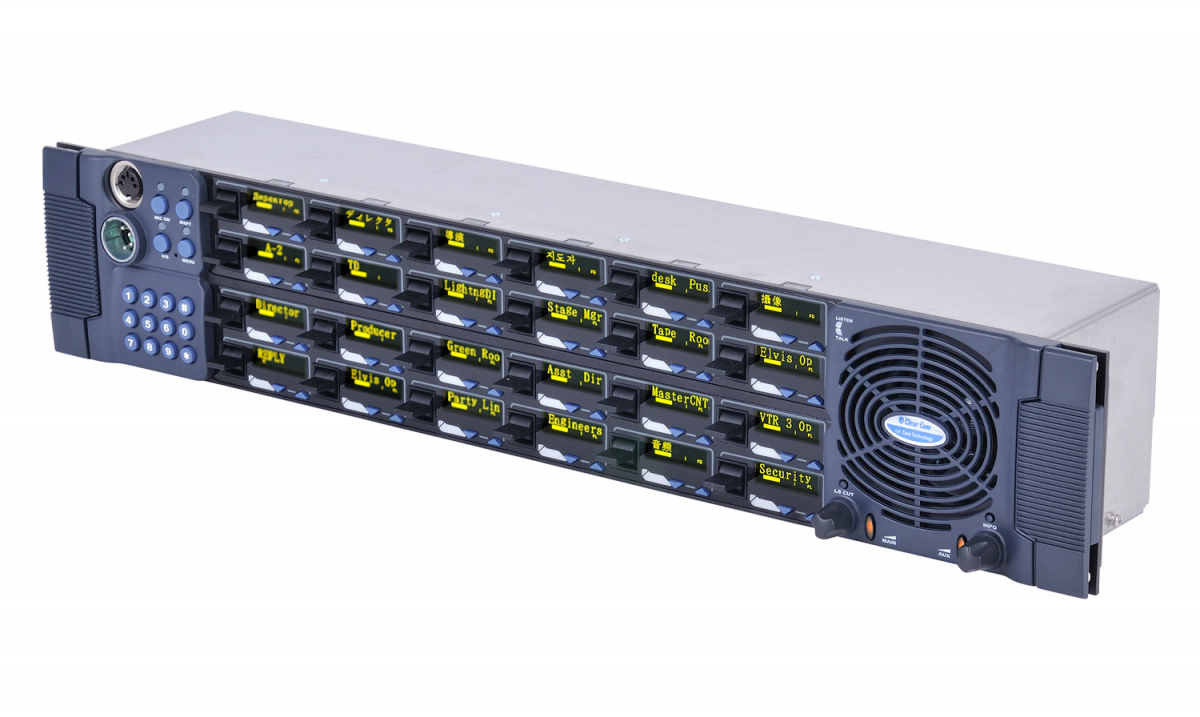

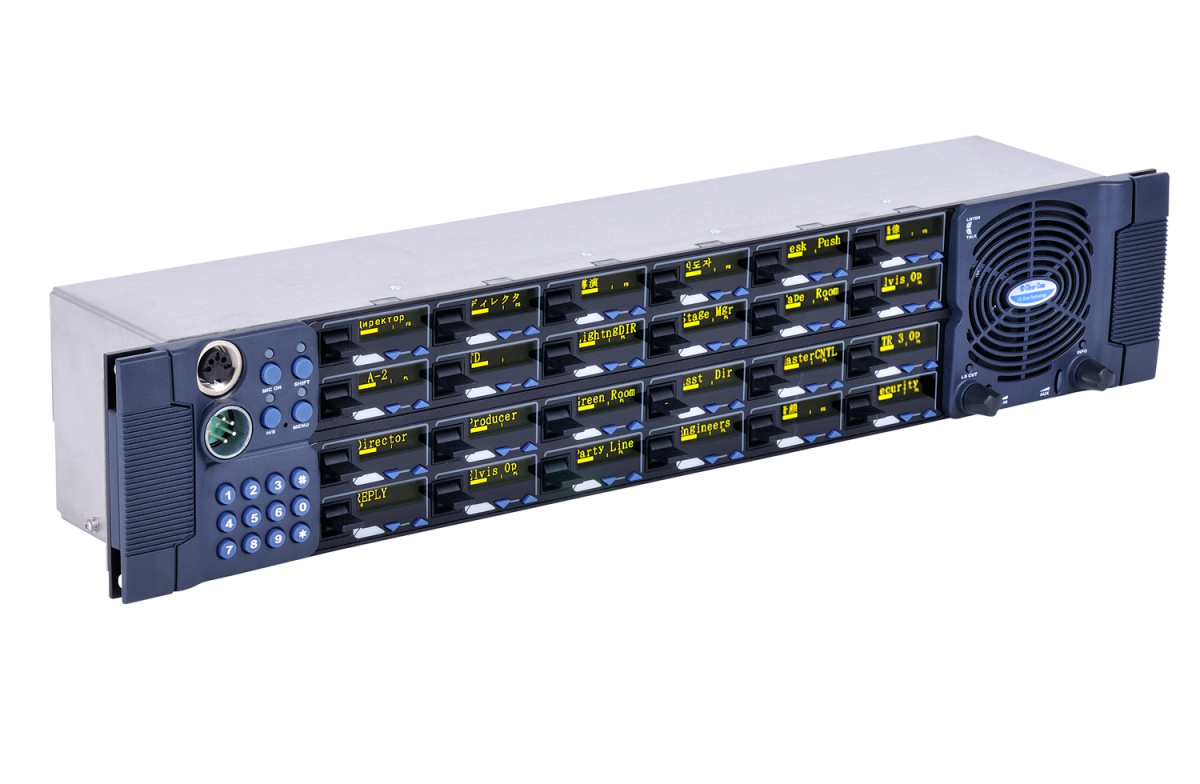

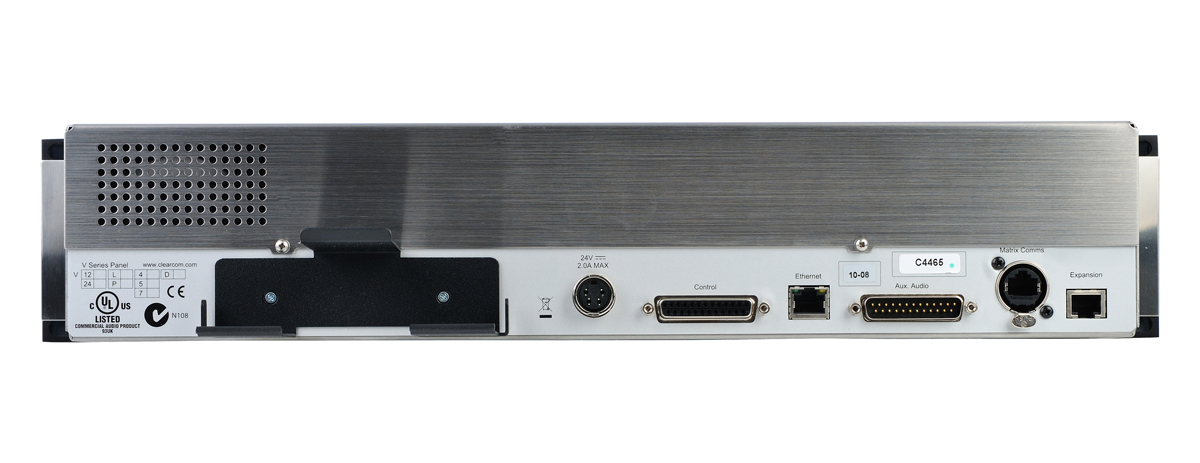

Details V-Series 24-key 2RU Lever Panel 24 configurable levers and 48 up/down level buttons for use with Eclipse HX matrix frames Individual up/down audio level controls for personal mixes Yellow OLEDs for better contrast and visibility Horizontal or vertical font display options Listen Again function to replay calls Fast key assign from pre-defined scroll lists and/or keypad International 10-character alpha-numeric fonts: Cyrillic, Hangul, Hebrew, Kanji, Katakana and Arabic Digital Signal Processing for audio routing, EQ and Dynamics, IFB routing and local loudspeaker dimming Optional AES-3 or AES-6 cards for connections to CAT5, co-ax, EMADI-64 or AES-6 interfaces Multi-channel matrix connection: direct connect (1 main +2 aux), AES-3 (2 channels), IP (3 channels) NOTE: This is being replaced by the V32LD V-Series 32-key 2RU Lever Panel Item Code V24LDX-4Y-IP, V24LDX5Y-IP, V24LDX4Y-AES-IP, V24LDX5Y-AES-IP Technical Specifications Front Panel Controls & Connectors Talk/Listen Switches: 23 Answer Back Switch: 1 Volume Controls: 2 (Main and Aux) Headset Connector: 1 (XLR-4M or XLR-5F) Panel Mic Connector: 1 (3-pin) Rear Panel Connectors GPIO: DB-25F Matrix: RJ45 (single-channel) Matrix (IP): RJ45 (multi-channel) Auxiliary Audio: DB-25M Expansion Panel: RJ45 DC Power: 4-pin DIN Co-Ax option: 75 Ohm BNC AES3 option: RJ45 Headset Audio Earphone Impedance: From 32 Ohms Output Power: 75mW into 50 Ohms for <1% distortion Loudspeaker Audio Frequency Response: 40Hz-20kHz +/- 3dB Panel Microphone Input Type: Electret Level: 40-70dBu I mpedance: 1700 Ohms +/- 10% Headset Microphone Input Type: Dynamic or Electret Level: -40 - 0 dBu Main Power Supply (External) Voltage: 100/240V AC +/- 10% Frequency: 50 - 60Hz Power: 50W maximum Environmental Operating: +32º – +125º F (0º – +50º C) Storage: +32º – +150º F (0º – +70º C) Humidity: Between 20% and 90%, Non-Condensing Dimensions 3.5 x 19 x 6.75in (HxWxD) (89 x 483 x 172mm) Weight 7.5lbs (4.0kg)
