Repeat8 Series (DISCONTINUED)

The Repeat8-NANOs are two compact repeater devices which convert up to 4-channels of 3G/SDI to fiber and back. The bright LEDs indicate input signal presence on each port as well as LEDs for status of the power supplies. The Repeat8-NANO is equipped with a mounting plate for secure and solid attachment.


  • Low-latency fiber repeaters that transport and distribute video and control data

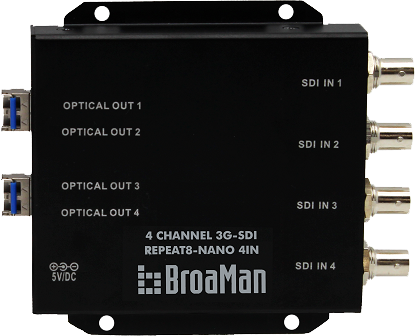

  • 3G/SDI video input to fiber transmitter with input reclockers (NANO-IN)

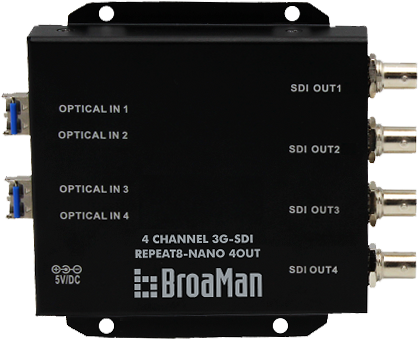

  • Fiber input to 3G/SDI BNC output with output reclockers (NANO-OUT)
  • Plug-and-Play - no configuration required
  • Lowest power consumption (<20W)
  • Compatible with 3rd party products
  • Mounting plate included and PSU added

Item Code

Repeat8-NANO-4IN-3G, Repeat8-NANO-4OUT-3G, Repeat8-NANO-2IN-2OUT-12G, SM320S31TTCD: transceiver module for Repeat8-NANO-4IN-3G, SM340SWRRCD: transceiver module for Repeat8-NANO-4OUT-3G, SM1220S31TRCD: transceiver module for Repeat8-NANO-2IN-2OUT-12G



Standards: SD, ED, HD, Dual Link, 3G

Complies with SMPTE: 292M, 295M, 297M, 305M, 310M, 424M

Compliant to: DVBASI, MADI

Interface: SDI – Serial Digital Interface

Optical Connection

Complies with 21 CFR 1040.10 and 1040.11

Connection: LC

Data Rate: Dependent on the Video data rate

Fiber cable lengths: Standard singlemode transceivers: = 10 km

Special singlemode transceivers: = 80 km (on request)

Power Supply
Type: External PSU
Main Voltage: 100-240V
Frequency: 50-600Hz
Output Voltage: 5V
Output current: 1A
With Mounting Plate:
0.80 x 4.4 x 4.5in (HxWxD)
(20 x 112 x 113mm)
Without Mounting Plate:
0.80 x 4.5 x 3.8in (HxWxD)
(20 x 113 x 97mm)
10oz (0.28kg)
