Operating Frequencies: 486.4 to 639.9 MHz
Block 19: 486.4 to 511.9 MHz
Block 21: 537.6 to 563.1 MHz
Block 24: 614.4 to 639.9 MHz*
*This block is targeted to be banned by the FCC for use within the US by July 13, 2020.
Frequency control:
Crystal Controlled PLL Sensitivity: 1 uv (20 dB SINAD)
Signal/Noise ratio: 95 dB A-weighted
Squelch quieting: 90 dB
AM rejection: 50 dB, 10 uV to 100 mV
Modulation acceptance: ±20 kHz
Spurious rejection: Greater than 70 dB
Third order intercept: 0 dBm
Frequency response: 100 Hz to 10 kHz, (±1db)
Pilot tone: 29.997 kHz, 4.5 kHz deviation (fixed crystal controlled)
Audio output: 1V RMS into 50 Ohms minimum
Antenna: Headphone cable
Programmable memory: Switches set default frequency; up to five additional frequencies can be stored in memory

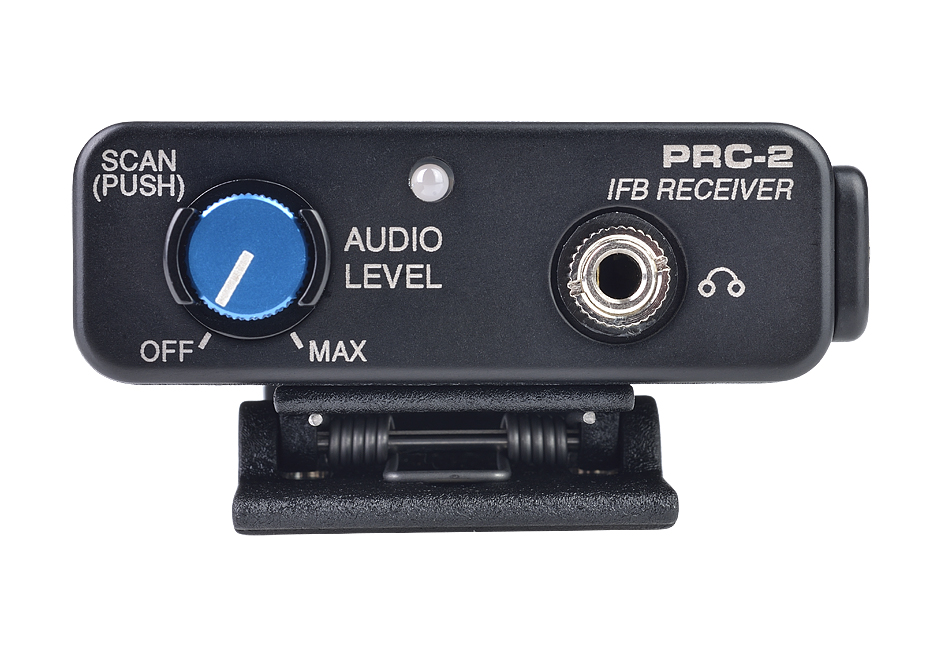

Front panel controls: Single knob controls Audio Output Level, Power on, programming
Scan Frequency Selection Indicators: Multi-color LED indicator for power on and battery status. Blinks to indicate channel number and during scanning.
Power requirement:
9V alkaline battery lasts about 8 hours
9V lithium battery lasts about 20 hours
Power consumption: 60 mA
Weight: 7.3 oz with battery
Size: 3.6 x 2.4 x 0.8 inches (housing only) (belt clip and knob extend beyond the housing)
