i-Series e-1410E (DISCONTINUED)

The i-Series panels are user control panels that are compatible with the Eclipse and Eclipse HX Digital Matrix Systems, offering high key density and rugged modular construction all in a compact 1RU package.

See V-Series, V-Series Iris, and V-Series Iris X panels as replacement panels for the i-Series.

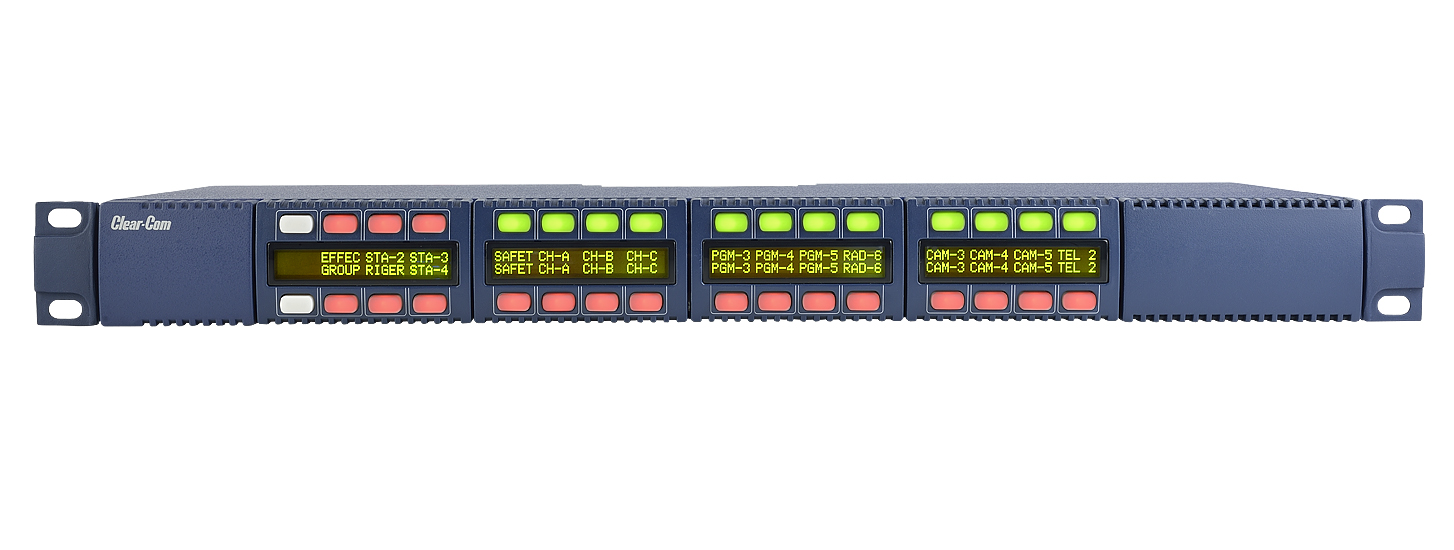

  • 32 pushbuttons and 4 alphanumeric displays for use with Eclipse HX matrix frames
  • Up to 5 expansion panels can be connected to i-Series panels
  • Modular and configurable
  • Individual cross-point volume level control via main volume encoder
  • 5-character alpha-numeric display
  • High-contrast yellow and black LED display

Item Code



Front Panel Controls & Connectors

Talk/Listen Buttons: 32

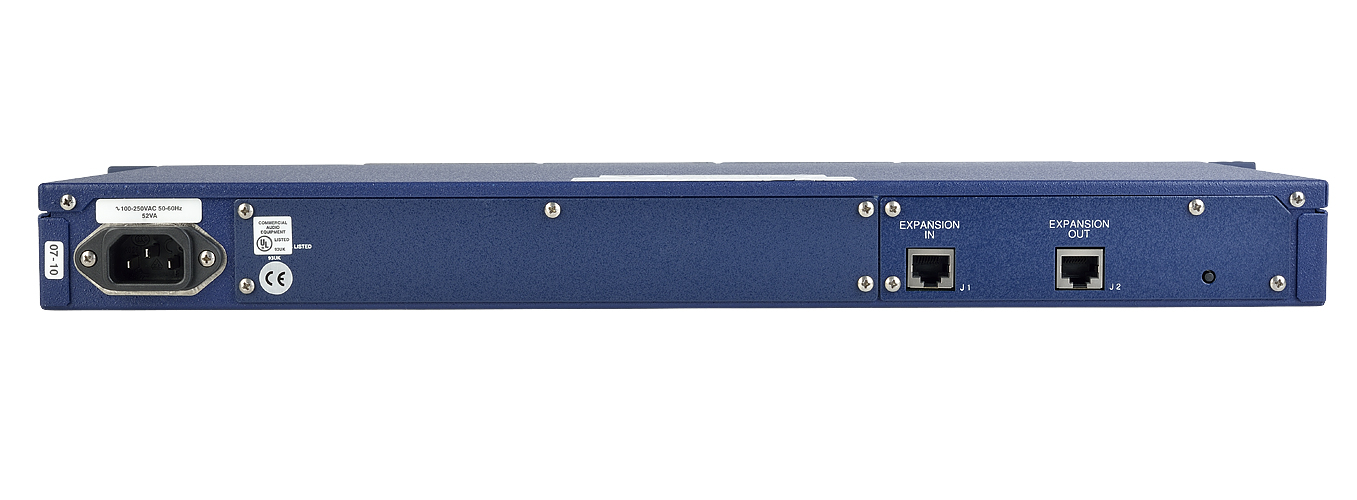

Rear Panel Connectors To Matrix: RJ45 DB-15F

Expansion: RJ45

Power: 3-pin EIA connector

Main Power Supply (Internal)

Voltage: 90/240V AC +/- 10%

Frequency: 50-60Hz

Power: 50W maximum


Operating: 32°-125° F (0°-50° C)

Storage: 32°-150° F (0°-70° C)

Humidity: Between 20% and 90%, non-condensing


1.75 x 19 x 8.25in (HxWxD)

(45 x 482 x 210mm)

7.5lbs (3.4kg)
