VI-PNL-24R (DISCONTINUED)

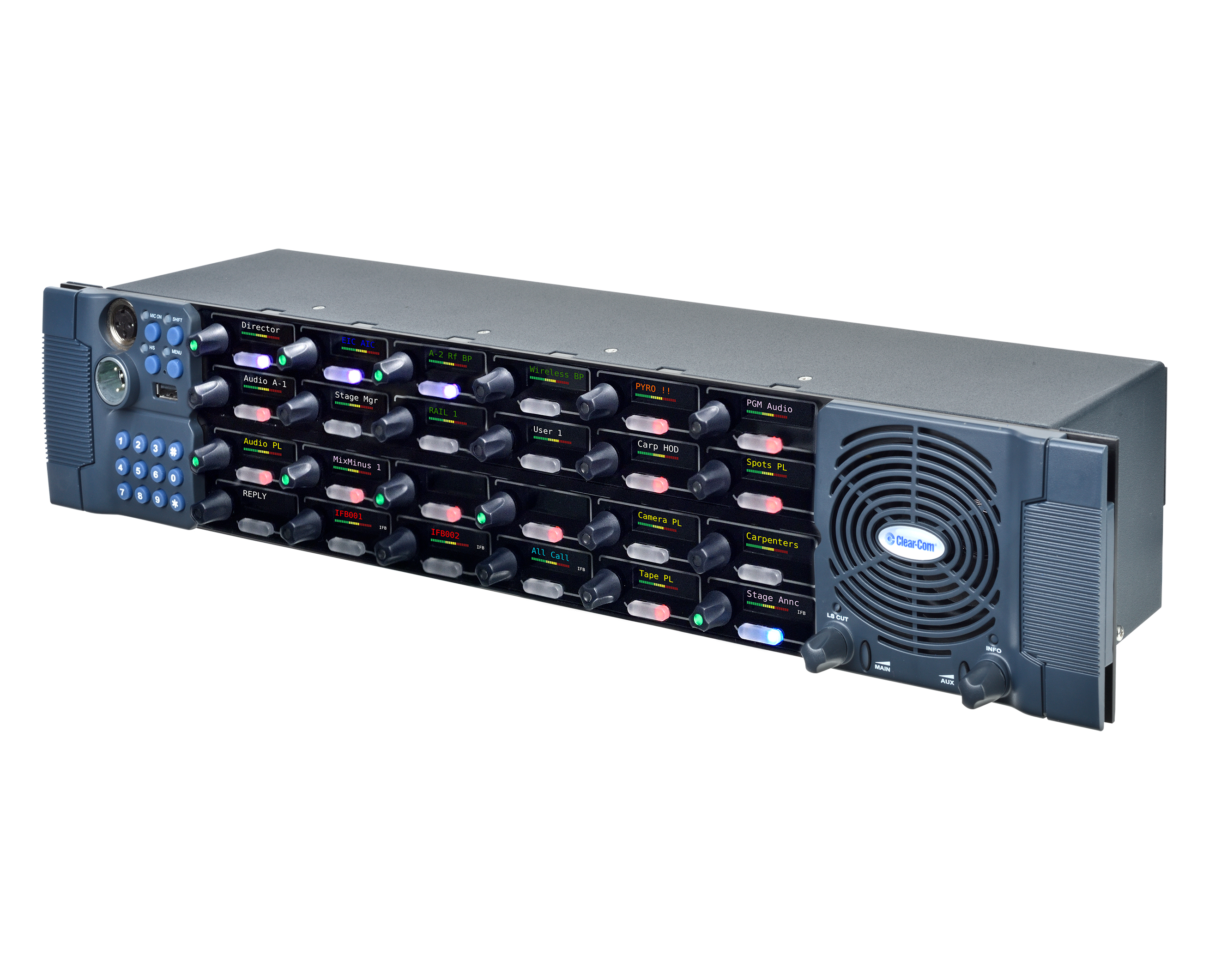

The V-Series Iris Rotary Panels are user control panels that operate in conjunction with Eclipse HX Digital Matrix Systems. Rotary panels feature one display window per “key” and have two individual controls for the same display; a rotary encoder for level control with a pushbutton switch feature for Listen (push on/off) and separate pushbutton for Talk (push on/off). Each control offers discrete LED tally indication; red for Talk and green for Listen.

Details

  • Color OLEDs for quick and easy key differentiation
  • AES67 low latency audio IP connections to Eclipse HX matrix frames via E-IPA-HX card
  • Individual key menus help ease of use and assignment
  • Individual rotary audio level controls for personal mixes
  • Fast key assign from pre-defined scroll lists or using numeric pad
  • Optional repositioning of Reply key
  • Optional additional Reply key for busy positions
  • Vertical font display option
  • International 10-character alpha-numeric fonts: Cyrillic, Hangul, Kanji, Katakana and Arabic
  • Digital Signal Processing (DSP) for audio routing, Dynamics, IFB routing and local loudpseaker dimming
  • Built-in Interfaces: Matrix (direct connect), Matrix (Ethernet/IP), GPIO, Aux Audio, 2nd Headset
  • Multi-channel Matrix Connections: Direct connect (1 main + 2 aux), IP (3 channels)

Item Code

VI-PNL-24R-X4

VI-PNL-24R-X5

VI-PNL-24R-X7

Technical
Specifications

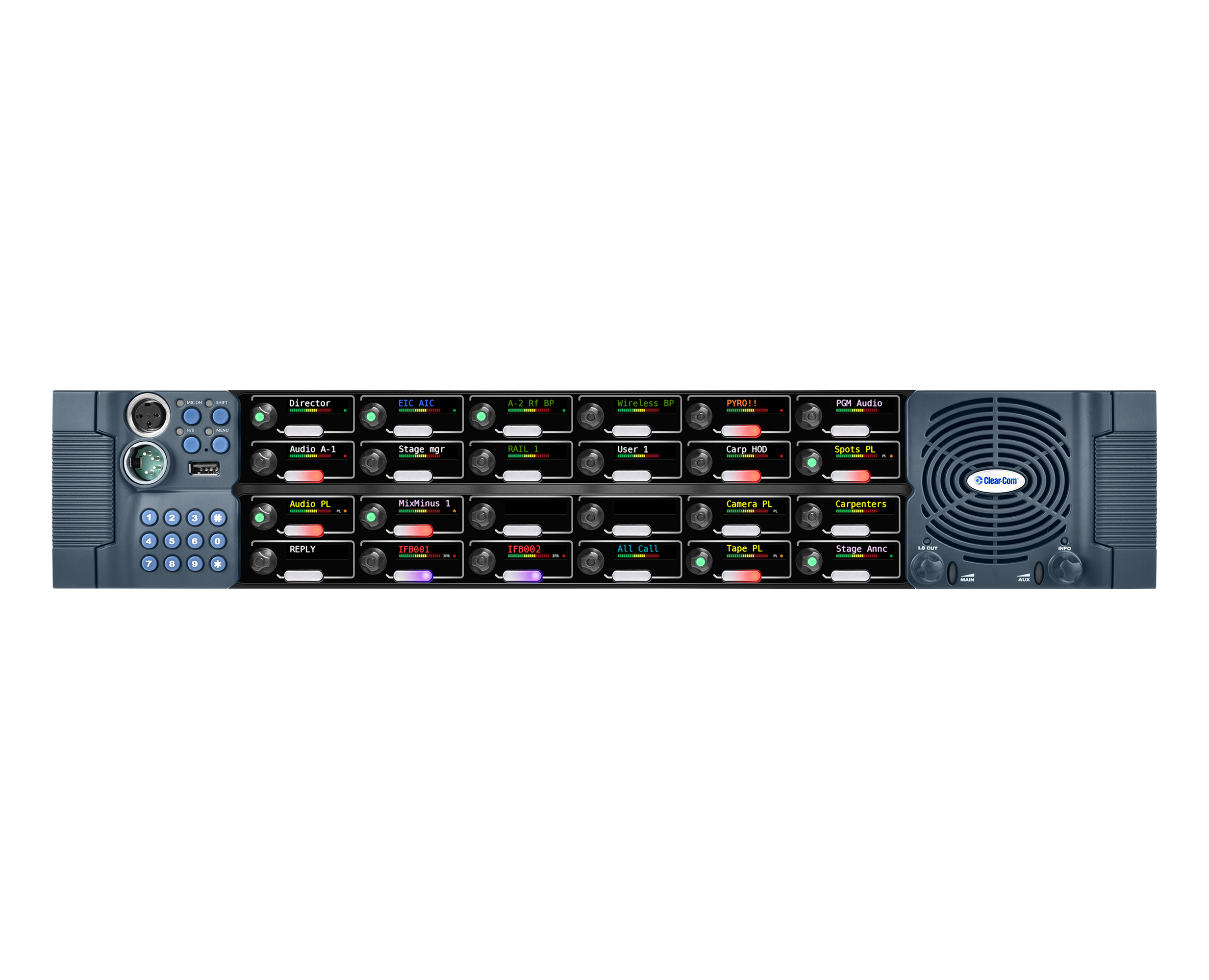

Front Panel Controls & Connectors

Talk/Listen Switches: 24 (2RU)

Answer Back Switch: Configurable (None, 1 or 2)

Volume Controls: 2 (Main and Aux)

Headset Connector: 1 (XLR-4M, XLR-5F, XLR-7M)

Panel Mic Connector: 1 (3-pin)

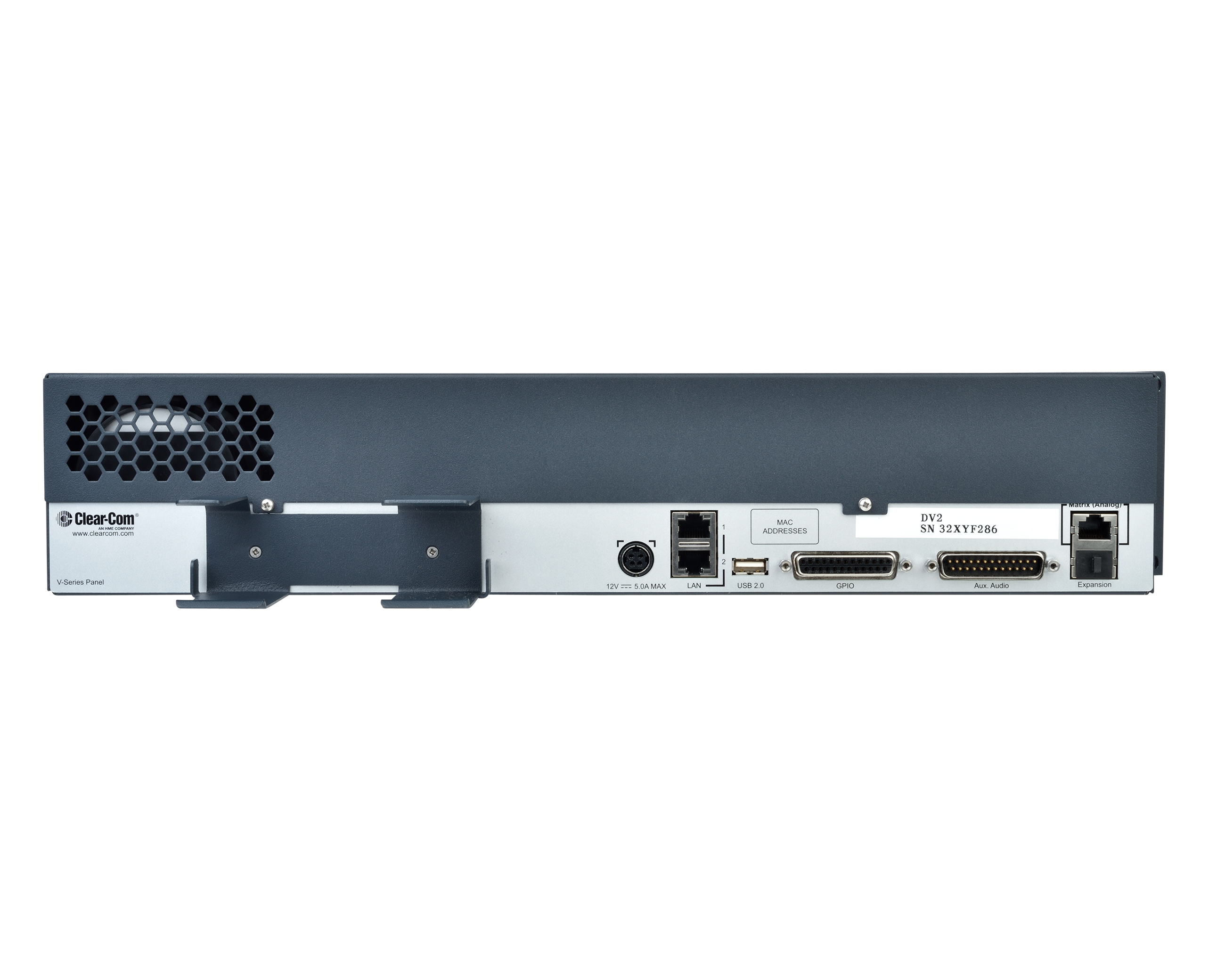

Rear Panel Connectors GPIO: DB-25F

Matrix: RJ45 (single-channel)

Matrix (IP): RJ45 (multi-channel)

Auxiliary Audio: DB-25M

Expansion Panel: RJ45

DC Power: 4-pin DIN (with locking sleeve)

Headset Audio Earphone Impedance: From 32 Ohms

Output Power: 75mW into 50 Ohms for <1% distortion

Loudspeaker Audio Frequency Response: 40Hz-20kHz +/- 3dB

Panel Microphone Input Type: Electret

Level: 40-70 dBu

Impedance: 1700 Ohms +/- 10%

Headset Microphone Input Type: Dynamic or Electret

Level: -40 - 0 dBu

Main Power Supply (External) Voltage: 100/240V AC +/- 10%

Frequency: 50 - 60Hz

Power: 60W maximum



Environmental

Operating: +32º – +113º F (0º – +45º C)

Storage: +32º – +150º F (0º – +70º C)

Humidity: Between 20% and 90%, Non-Condensing



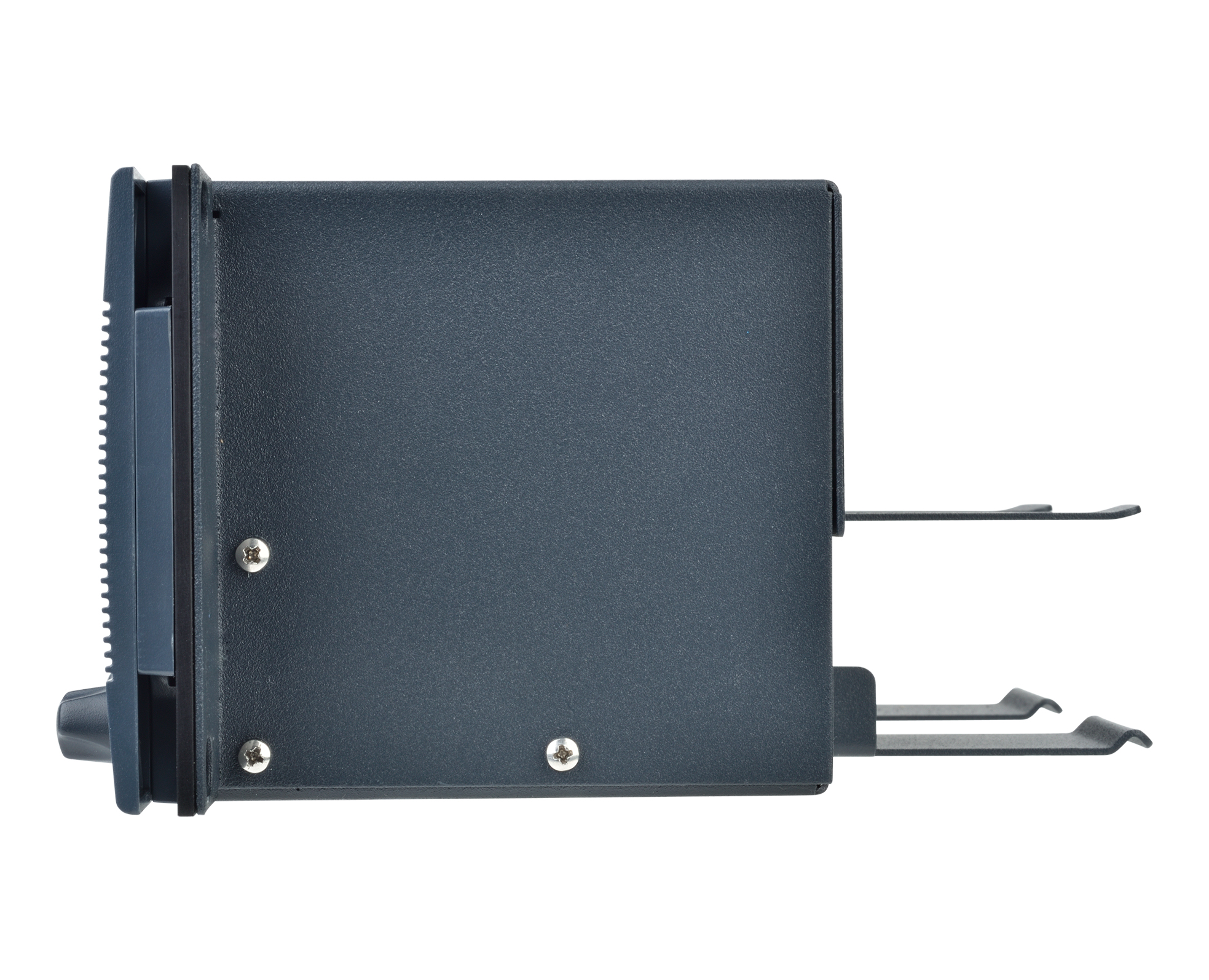

Dimensions

19 x 3.5 x 6.84in (WxHxD)

(483 x 89 x 174mm)



Weight

6.5lbs (2.93kg)
